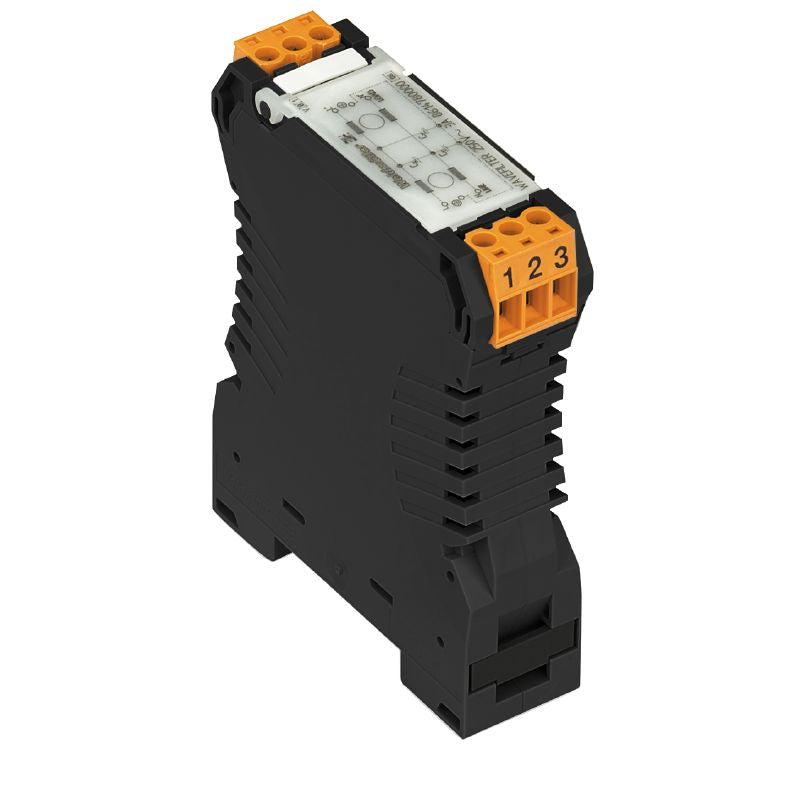

8614780000 - Compact 3A Surge Protector, 30 dB Attenuation, RoHS Compliant

8614780000 - Compact 3A Surge Protector, 30 dB Attenuation, RoHS Compliant

SKU: 8614780000 Download PDF

Variant:
  • 8614780000 - Compact 3A Surge Protector, 30 dB Attenuation, RoHS Compliant
Now $77.06
BEFORE   $0.00 Now $77.06
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable surge protection for your electronic devices with the WAVEFILTER 3A Featuring an impressive attenuation of 30 dB at 100 MHz, this product has been engineered to comply with RoHS standards and adheres to UL safety regulations Its compact dimensions—measuring 92 mm deep, 73 mm high, and 225 mm wide—allow for versatile use in power distribution setups The WAVEFILTER operates efficiently in temperatures ranging from -20 °C to 40 °C and can be safely stored in environments between -25 °C and 55 °C, making it a resilient choice for various applications.

Features and Benefits:

    •Compliant with RoHS standards.

    •Compact design suitable for various applications.

    •Protection degree of IP20.

    •Rated current of 3 A.

    •Accommodates flexible wire connections.

    •Power distribution.

Specifications:

 Depth 92 mm
 Height 73 mm
 Width 22.5 mm
 Net weight 79.79 g
 Storage temperature -25 °C...55 °C
 Operating temperature -20 °C...40 °C

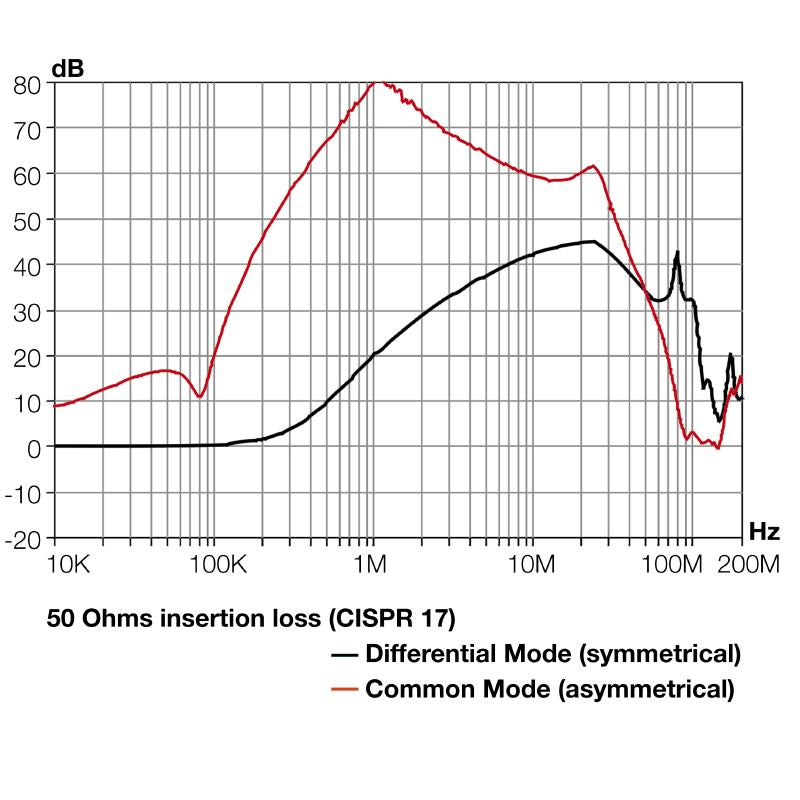

 Attenuation at 0.15 MHz <0.5 dB
 Attenuation at 1 MHz 18 dB
 Attenuation at 10 MHz 45 dB
 Attenuation at 100 MHz 30 dB
 Capacitance 33nF
 Fuse protection 5 A
 Inductance L 2 mH
 Leakage current 190 µA
 Rated voltage (AC) 250 V
 Rated voltage (DC) 250 V
 Test voltage P-N 1700 V DC
 Test voltage P/N-PE 2000 V AC
 Voltage type AC/DC
 Cross-section 2.5 mm²
 Tightening torque, min. 0.4 Nm
 Tightening torque, max. 0.6 Nm
 Clamping range, rated connection 2.5 mm²
 Clamping range, min. 0.5 mm²
 Clamping range, max. 2.5 mm²
 Wire connection cross section, finely stranded, min. 0.5 mm²
 Wire connection cross section, finely stranded, max. 2.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), min. 0.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), max. 1.5 mm²
