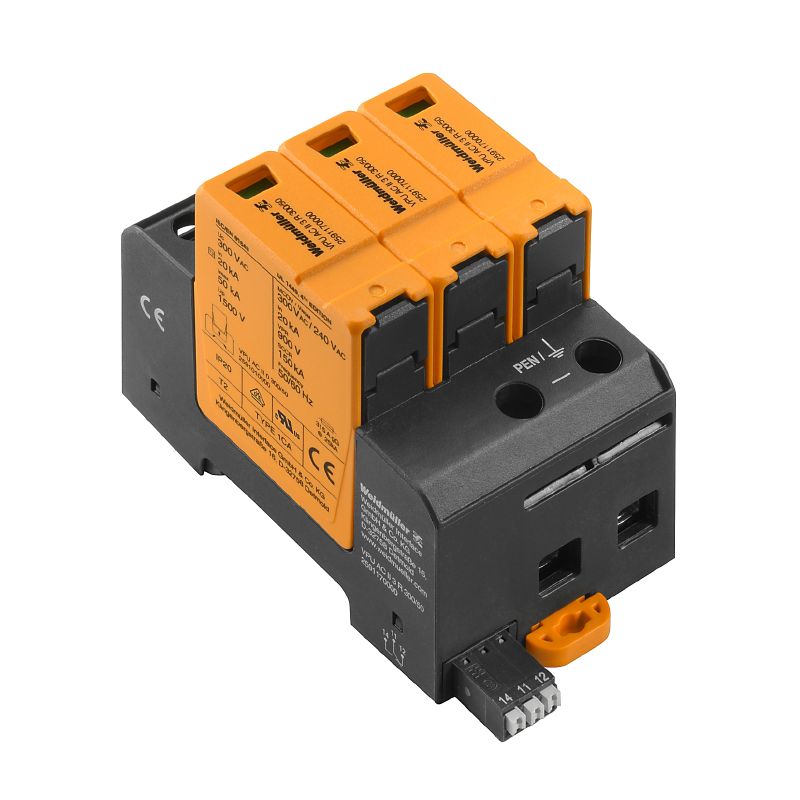

2807410000 - Low-Voltage Surge Arrester, 68mm Depth, Remote Contact

SKU: SKU: 2807410000 Download PDF

Select a Variant:

2807410000 - Low-Voltage Surge Arrester, 68mm Depth, Remote Contact

SET THE QTY:

Now $266.25 Web pricing policy

~~BEFORE $0.00~~ Now $266.25 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VPU AC II F 3 R 300/40, a robust low-voltage surge arrester engineered for optimal surge protection This device comes equipped with a convenient remote contact feature and meets RoHS compliance without any exemptions With compact dimensions of 68 mm in depth and 1045 mm in height, it weighs just 407 g Designed to function under extreme temperatures ranging from -40 °C to +85 °C and suitable for humidity levels between 5% and 95%, it is perfect for power distribution applications.

Additionally, the unit is designed for easy installation on standard mounting rails, making setup a breeze.

Features and Benefits:

•Compliant with RoHS and REACH.

•IP20 protection level in installed state.

•Green optical display indicates operational status; red indicates a defective arrester.

•Operating altitude can be up to 4000 m.

•Surge protection in low-voltage power distribution systems.

Specifications:

Depth	68 mm
Height	104.5 mm
Width	54 mm
Storage temperature	-40 °C to 85 °C
Operating temperature	-40 °C to 85 °C
Cross-section for connected wire, solid core, max	1.5 mm²
Cross-section for connected wire, solid core, min	0.25 mm²
Stripping length	8 mm
Number of poles	3
Mains voltage	230 V / 400 V
Max. continuous voltage, Uc (AC)	300 V
Response time / fallback time	≤ 25 ns
SCCR	100 kA
SPD type	T2, T3
Protection degree	IP20 in installed state
Protection level U	≤ 1.5 kV
