8924280000 - Compact Surge Protection Flange Housing with UL Certification

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

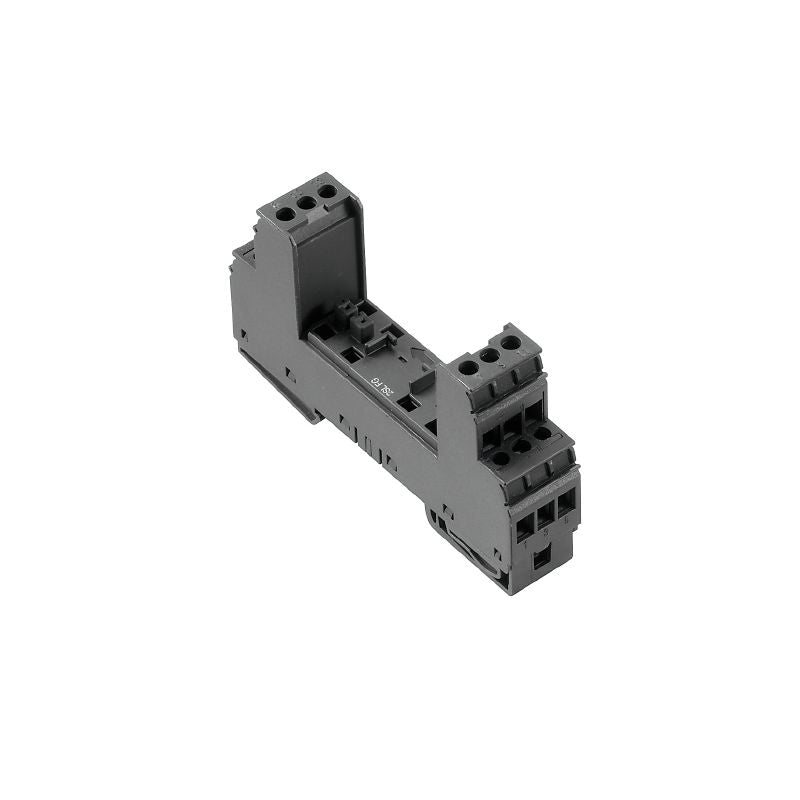

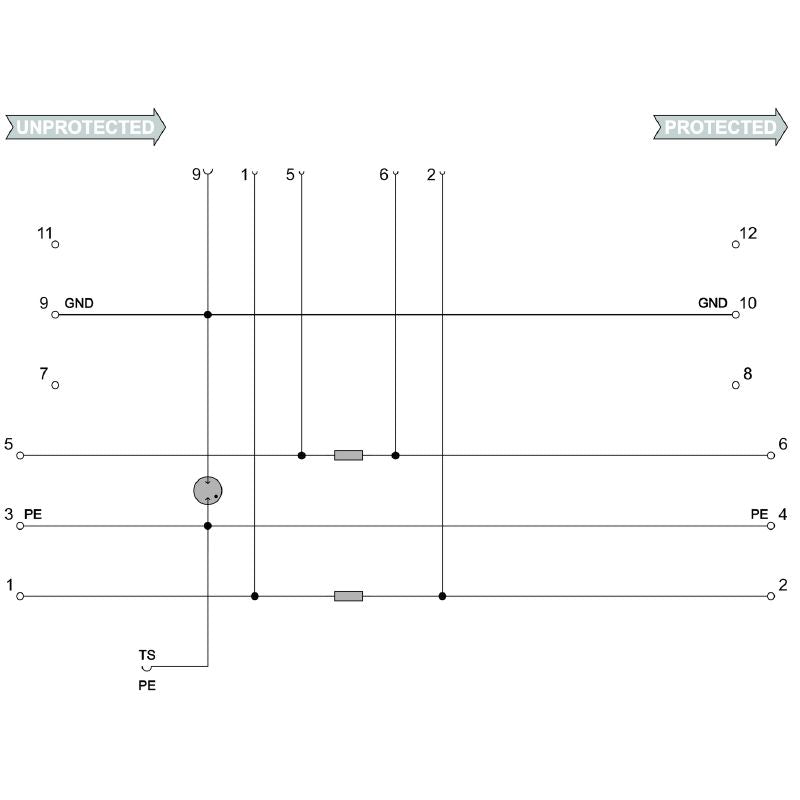

Introducing a flange-mounted housing specifically engineered for surge protection This device meets ROHS standards without exemptions and proudly holds a UL certification (E311081), confirming its reliability The product is identified by the ordering number 8924280000 Designed with a compact structure, it effectively supports a protected plug for two floating-ground powered paired cables A key feature is the simultaneous sparkover gap connected to a high impedance earth, linking the mounting rail (earth) with the ground of the protective switch.

Additionally, the base unit includes mechanical coding tailored for the protected plug, matching the switch type and rated voltage For convenience, the terminals can be labeled for easy identification.

Features and Benefits:

•Flange-mounted housing.

•Compliant with ROHS.

•UL certified.

•Mechanical coding for compatible plugs.

•Capable of marking all terminals.

•Surge protection for electrical installations.

Specifications:
