Description:

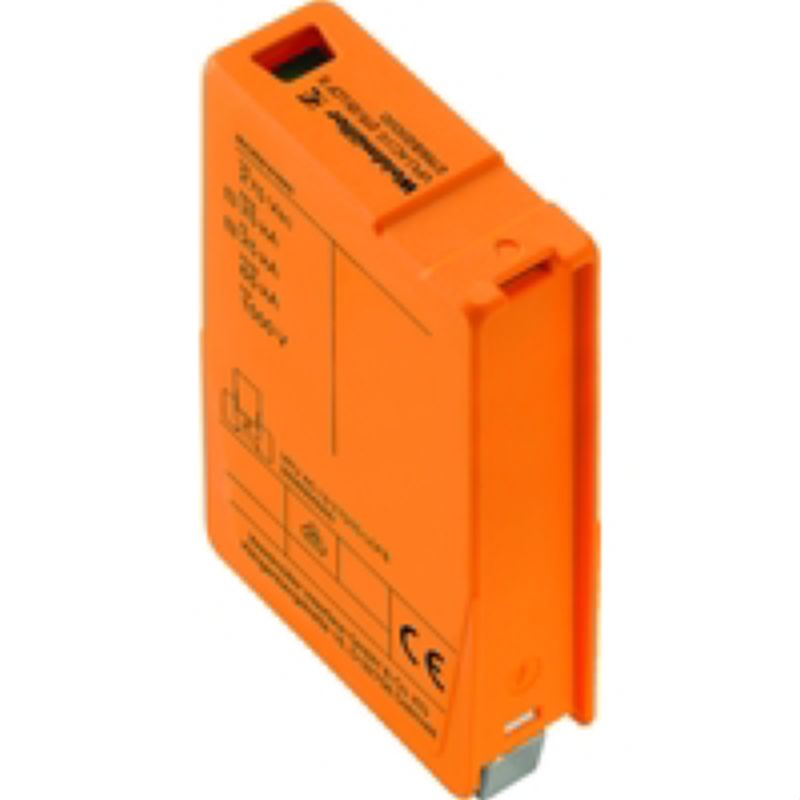

Introducing the VPU AC I 0 275/25 LCF S, a specialized surge protection device engineered to eliminate leakage current This arrester adheres to RoHS standards, promoting eco-friendly practices Capable of functioning in extreme temperatures ranging from -40 °C to 85 °C, it also thrives in environments with up to 95% relative humidity Featuring a green optical display for operational status and a red indicator to signal when replacement is necessary, this device combines performance with user-friendly features.

Features and Benefits:

•Compact design with dimensions of 80 mm depth, 45 mm height, and 18 mm width.

•Low net weight of 105 g for easy installation.

•Protection degree of IP20 while installed.

•Surge protection capabilities rated with a maximum discharge current of 65 kA.

•Operating altitude of up to 4000 m.

•Compatible with IEC 61643-11 and EN 61643-11 standards.

Specifications:
