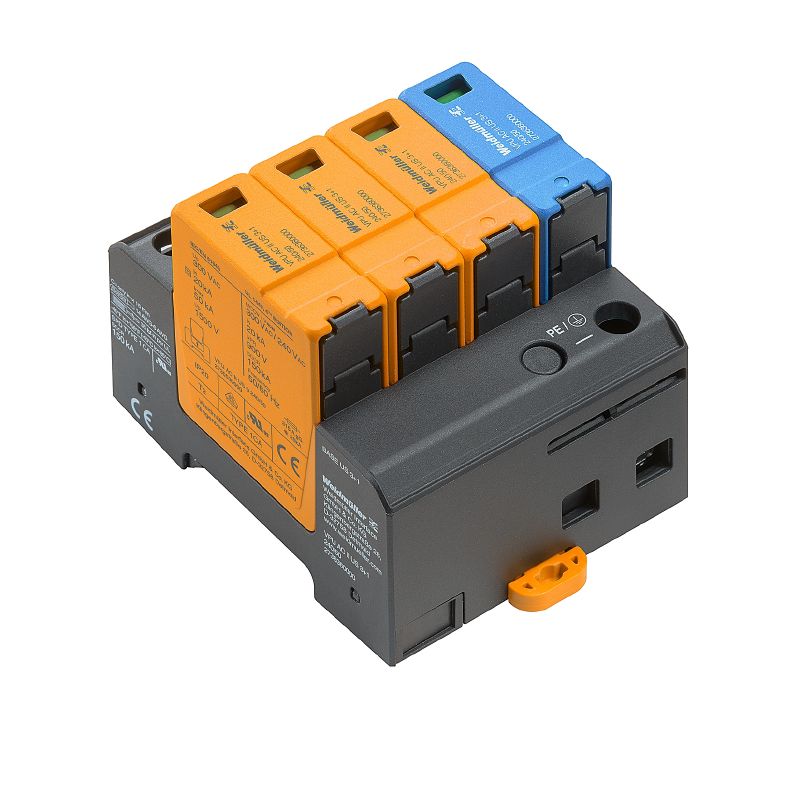

2736360000 - Compact Surge Voltage Arrester for Low Voltage Protection

2736360000 - Compact Surge Voltage Arrester for Low Voltage Protection

SKU: 2736360000 Download PDF

Variant:
  • 2736360000 - Compact Surge Voltage Arrester for Low Voltage Protection
Now $260.82
BEFORE   $0.00 Now $260.82
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure reliable low voltage surge protection with this surge voltage arrester, suitable for TN-C-S, TN-S, TT, IT with N, and IT without N configurations It complies with ROHS standards and boasts cULus certification (Certificate Number: E354261) The compact design allows for easy installation, while its resilient performance is guaranteed even in high humidity environments, functioning effectively within a range of 5% to 95% humidity.

Engineered for maximum operational temperatures of 85 °C and capable of withstanding storage temperatures from -40 °C to 85 °C, this arrester is ideal for various challenging settings.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Protection degree of IP20 when installed.

    •Indicates operational status with green for OK and red for replacement needed.

    •Able to operate at an altitude of up to 4000 m.

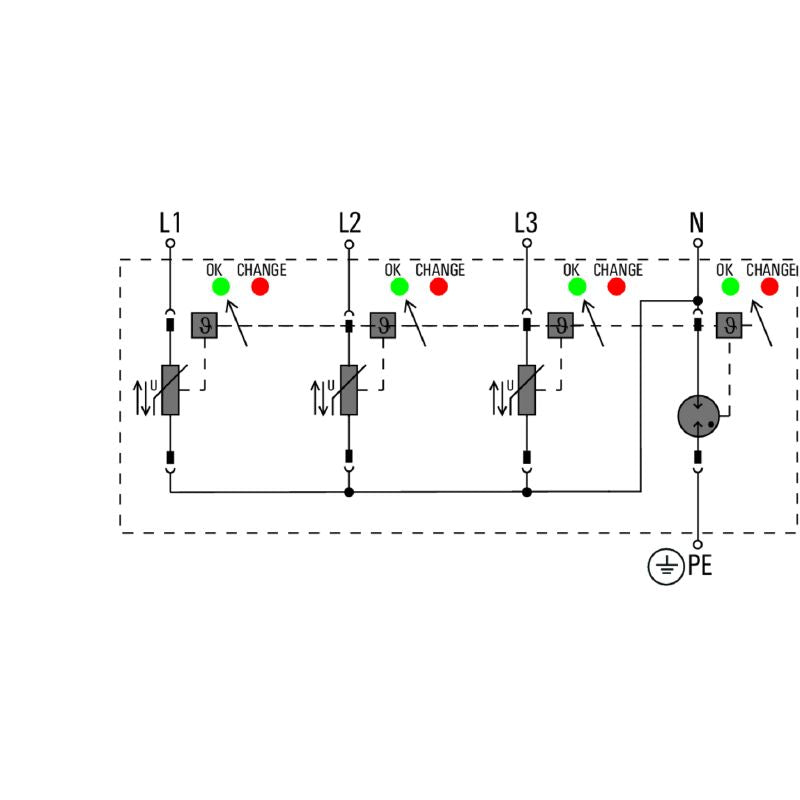

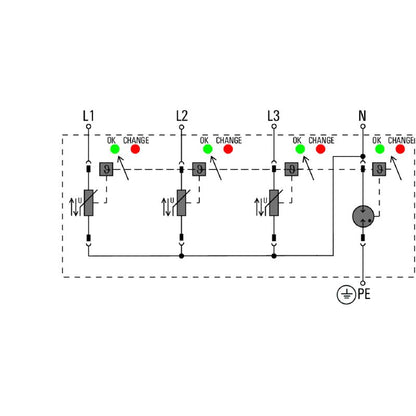

    •Compatible with three-phase WYE power systems.

    •Surge protection in power distribution systems.

Specifications:

 Depth 68 mm
 Depth (inches) 2.677 inch
 Height 90 mm
 Height (inches) 3.543 inch
 Width 72 mm
 Width (inches) 2.835 inch
 Ambient temperature (operational), max. 85 °C
 Rated Voltage U 240 V
 Number of poles 4
 Discharge current I max (8/20µs) N-PE 65 kA
 SCCR 150 kA
 Protection level U p at I N (L/N-PE) ≤ 1.5 kV
 Rated voltage (AC) 240 V
 Connection cross-section AWG, min. AWG 14
 Connection cross-section AWG, max. AWG 6
 Energy coordination (≤10 m) Type II
 Response time ≤ 25 ns
 Fuse protection No Fuse necessary ≤315 A gG
 Stripping length 18 mm
 Wire connection method Screw connection
 Type of connection Screw connection
 Operating temperature -40 °C...85 °C
 Storage temperature -40 °C...85 °C
