8951760000 - Surge Protector with Flange Mount, -40°C to +70°C Operating Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

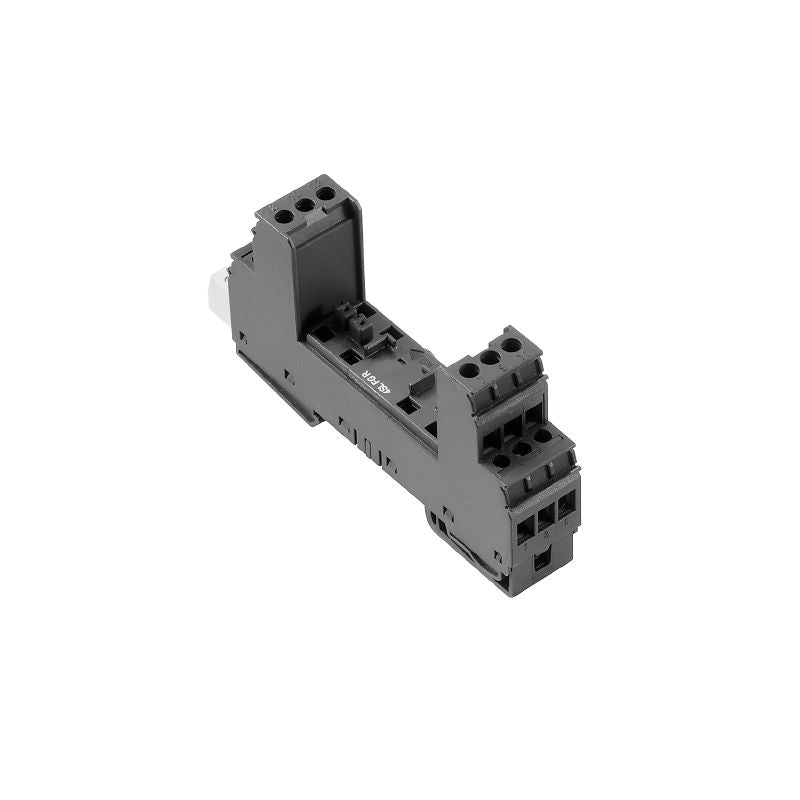

Introducing the VSPC BASE 4SL FG R, an advanced surge protection device featuring a secure flange-mounted design This product meets ROHS compliance and boasts essential UL certifications for safety and reliability It operates efficiently within a temperature range of -40 °C to +70 °C and can be stored at temperatures from -40 °C to +80 °C With a tolerance for high humidity levels between 5% and 96%, it is suitable for a variety of connection applications and accommodates specific wire gauges.

The device is constructed with a screw connection type, offering multiple specifications for different wire cross-sectional areas, making it a versatile choice for your protection needs.

Features and Benefits:

•Flange-mounted design.

•Offers surge protection.

•Configured with screw connections.

•Applicable for varied wire types and sizes.

•Compliant with ROHS and UL standards.

•Supports optional remote monitoring.

•Mechanical coding for secure connections.

•Can connect protected plugs for multiple floating-ground powered cables.

•Used in settings requiring high impedance earth connection.

Specifications:
