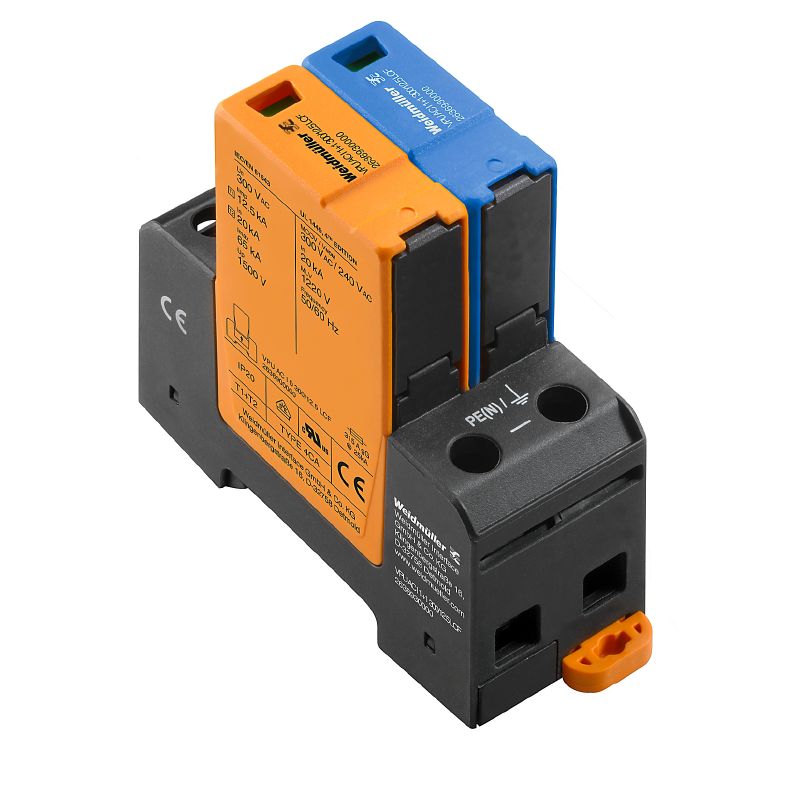

2636930000 - Surge Arrester for Single-Phase Systems, -40 to 85°C

2636930000 - Surge Arrester for Single-Phase Systems, -40 to 85°C

SKU: 2636930000   Download PDF

Select a Variant:
  • 2636930000 - Surge Arrester for Single-Phase Systems, -40 to 85°C
Qty:
Now $244.56   Web pricing policy
BEFORE   $0.00 Now $244.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the VPU AC I 1+1 300/125 LCF, a reliable low voltage surge arrester crafted for single-phase applications Compatible with TN, TT, and IT systems, it functions seamlessly with or without a neutral This device is RoHS compliant and certified under E354261, ensuring adherence to quality standards Designed for easy installation on the TS 35 mounting rail, it operates efficiently in a temperature range of -40 °C to 85 °C and withstands humidity levels from 5% to 95%.

With a rated voltage of 240 V, it can handle up to 300 V in various setups An added optical function display provides clear visibility of its operational status This arrester meets stringent standards, including IEC 61643-11 and UL 1449, making it a dependable choice for your electrical protection needs.

Features and Benefits:

    •Compliant with RoHS standards.

    •Integrated optical function display showing operational status.

    •Suitable for single-phase systems.

    •Allows count-in installation without leakage current.

    •Installation housing configured for IP20 protection.

Specifications:

 Depth 91 mm (3.583 inch)
 Height 90 mm (3.543 inch)
 Width 36 mm (1.417 inch)
 Operating temperature -40 °C to 85 °C
 Storage temperature -40 °C to 85 °C
 Protection degree IP20 in installed state
 Rated Voltage U 240 V
 Max. continuous voltage, Uc (AC) 300 V
 Discharge current I max (8/20µs) N-PE 50 kA
 Discharge current I n (8/20µs) N-PE 50 kA
 Lightning test current I imp (10/350 µs) (N-PE) 50 kA
 Number of poles 2
 Response time / fallback time ≤ 25 ns
 Stripping length 18 mm
 Wire connection method Screw connection
 Stripping length, rated connection 18 mm
 Tightening torque, min. 3 Nm
 Tightening torque, max. 4.5 Nm
 Clamping range, rated connection 16 mm²
 Clamping range, min. 1.5 mm²
 Clamping range, max. 35 mm²
