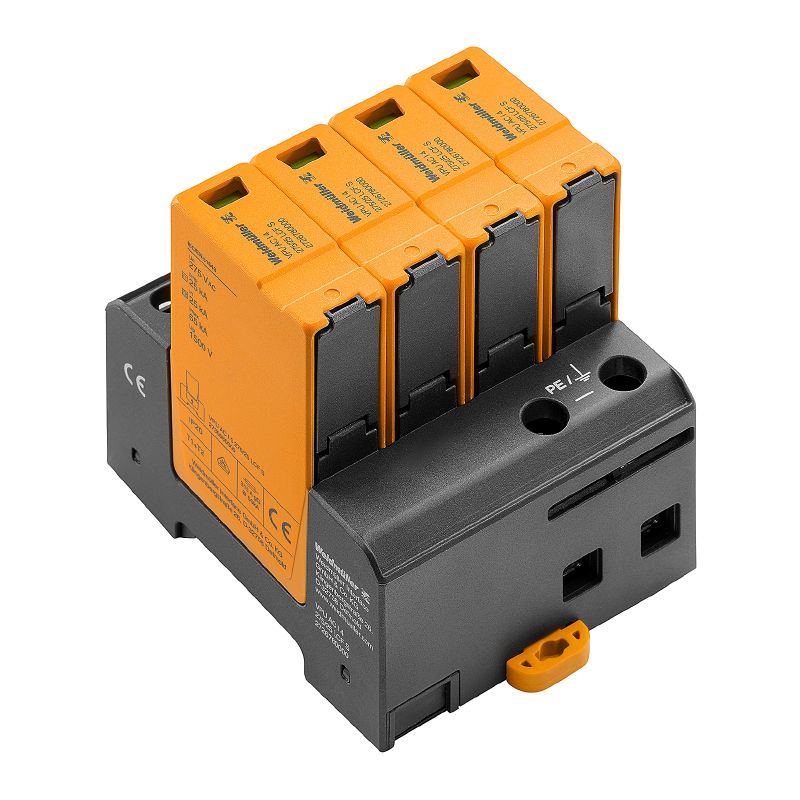

2726780000 - Low Voltage Surge Arrester IP20, 91mm Depth, Visual Indicator

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Protect your electrical systems with this efficient surge voltage arrester, specifically built for low voltage applications It provides reliable protection against surges in TN-C-S and TN-S systems without any leakage current The unit is housed in a compact 4TE installation structure and meets ROHS compliance standards fully Measuring 91 mm in depth, 90 mm in height, and 72 mm in width, it has a lightweight of 672 g, making it easy to handle.

This device operates within a wide temperature range of -40 °C to 85 °C and is suitable for humidity levels from 5% to 95% It is designed to function effectively at altitudes up to 2000 m and offers a protection rating of IP20 once installed A convenient feature is the visual indication system, which displays a green light during normal operation and turns red when it needs to be replaced, ensuring you always know its status.

Features and Benefits:

•Compliant with ROHS without exemption.

•Installation housing of 4TE.

•Visual display indicates operational status.

•Suitable for TN-C-S and TN-S low voltage networks.

•Provides surge protection.

Specifications:
