8924360000 - Surge Protector 69mm x 90mm for Instrumentation & Control

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure your instrumentation and control systems are safeguarded with the VSPC 4SL surge protector Capable of handling up to 300 V (L/N-PE), this device is specifically crafted for applications requiring reliable surge protection It comes with UL E311081 certification, affirming its quality and safety Measuring 69 mm in depth, 90 mm in height, and 178 mm in width, the VSPC 4SL has a lightweight design at just 42.

24 g It performs flawlessly in a wide temperature range, from -40 °C to 70 °C during operation, and up to 80 °C for storage, accommodating humidity levels between 5% and 96% With a remarkable mean time to failure (MTTF) of 2,665 years and a safety factor of 793%, this surge protector is compliant with the SIL level as per IEC 61508 standards Additionally, it adheres to RoHS regulations, with a specific exemption concerning lead.

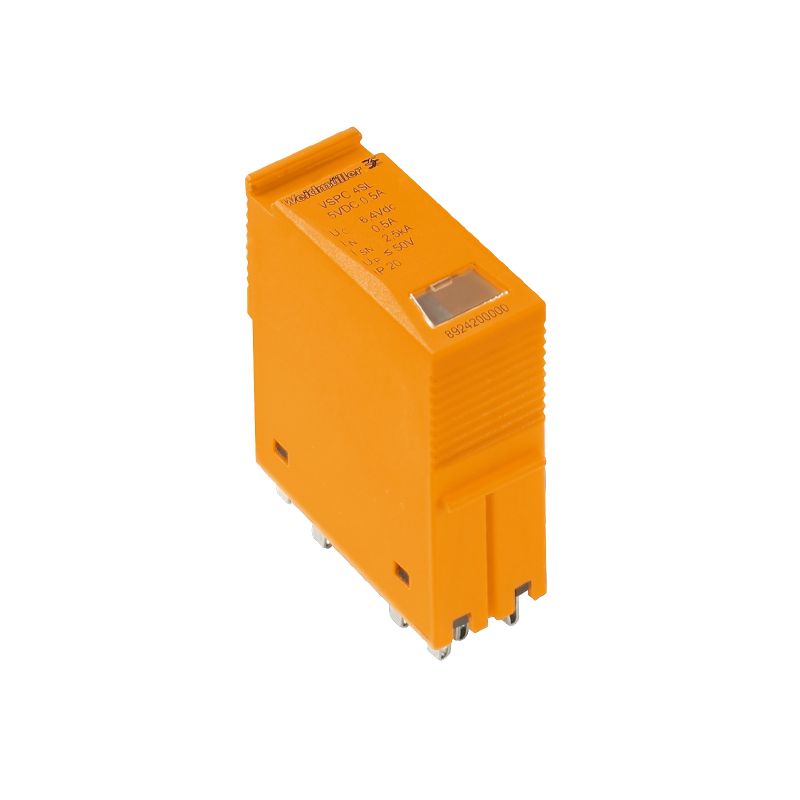

The vibrant orange finish adds a distinct touch to your equipment, although it does not include a function indicator or visual display.

Features and Benefits:

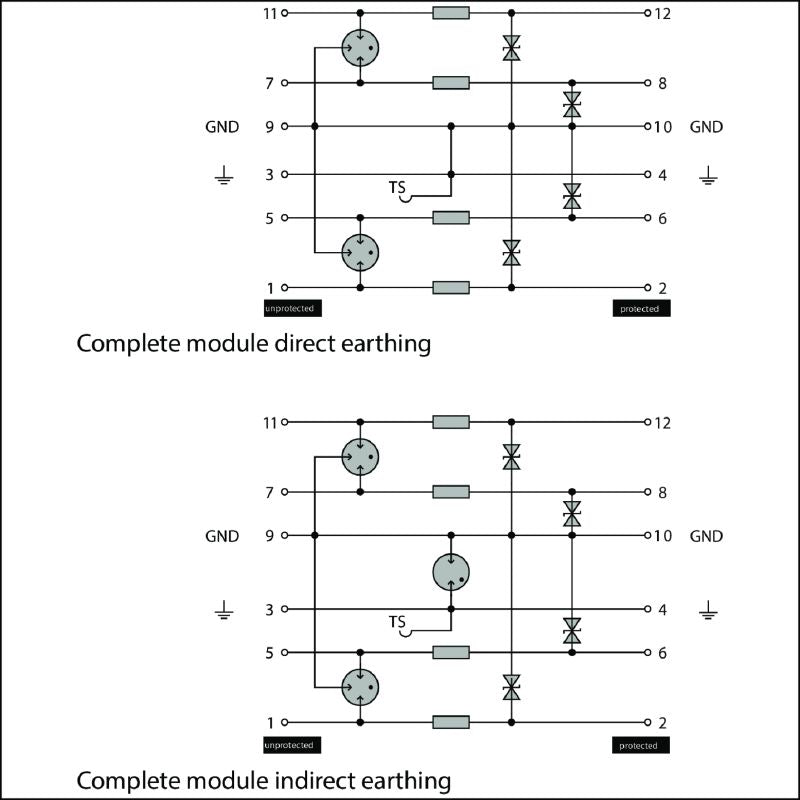

•Two-stage protection circuit including coarse protection and fine protection.

•Optical identification based on the protected switching type and voltage level.

•Compatible with the VSPC BASE 4SL for secure connections.

•Protected plugs feature coding pins and counter-profiles for matching base elements.

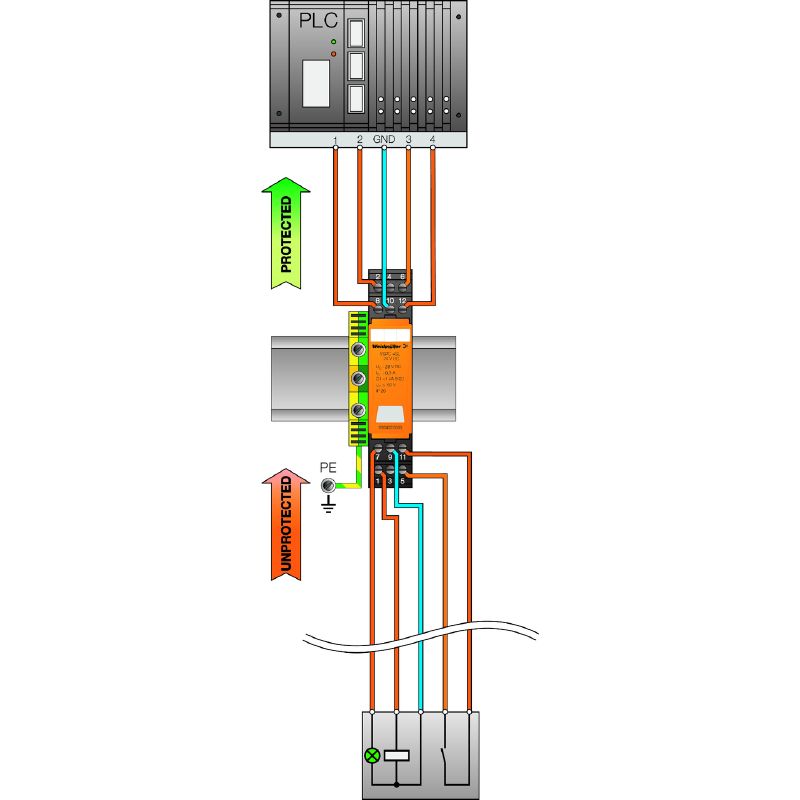

•Surge protection for instrumentation and control.

Specifications:
