Description:

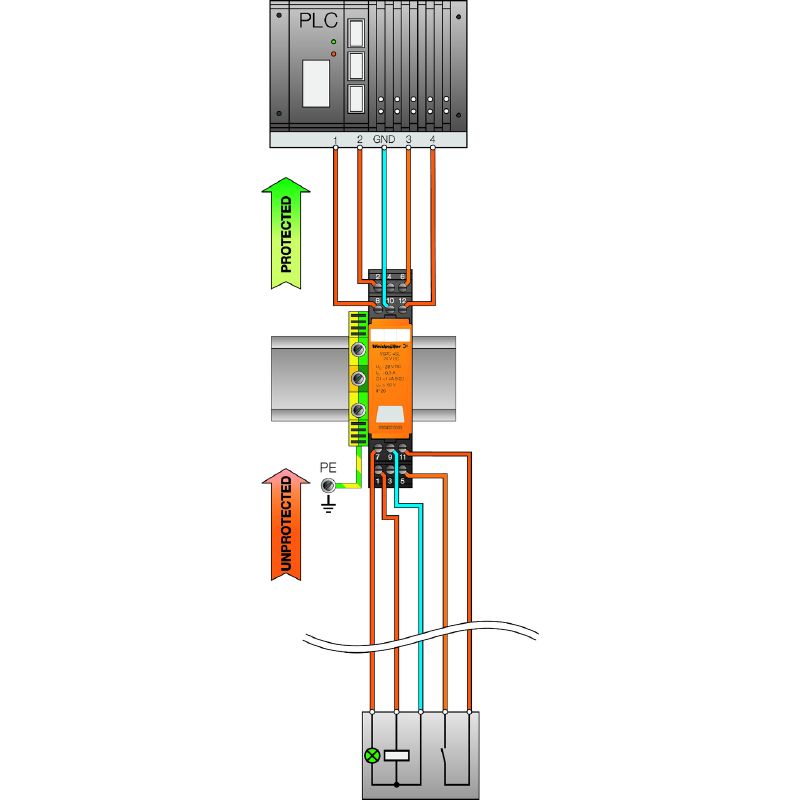

Ensure your equipment remains protected with the VSPC 4SL 5VDC surge protector, engineered specifically for instrumentation and control applications This device operates without a warning feature and supports a maximum voltage of under 200 V Featuring a two-stage protection system, it is ideal for safeguarding sensitive equipment Its compact form includes a coded plug, making installation straightforward and hassle-free.

Features and Benefits:

•Designed for four wires with a common ground.

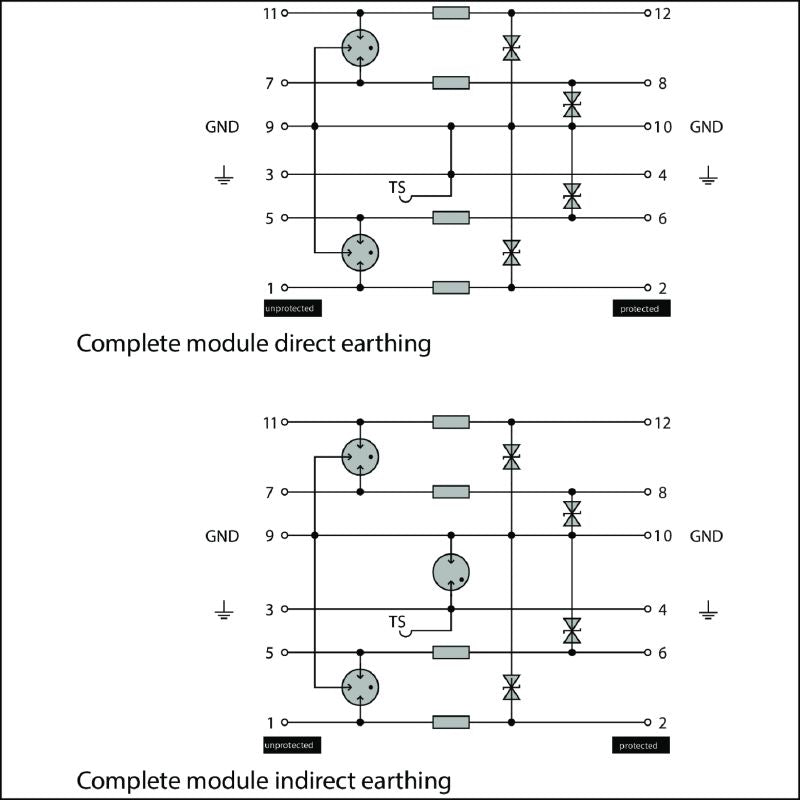

•Includes coarse and fine common mode voltage protection.

•Mechanical and optical identification for easy use.

•Compatible with VSPC BASE 4SL.

•Ideal for use in measurement, monitoring, and setting environments.

Specifications:

Dimensions	{'Depth': '69 mm', 'Height': '90 mm', 'Width': '17.8 mm'}
Temperature Range	{'Storage': '-40 °C to 80 °C', 'Operating': '-40 °C to 70 °C'}
Humidity	5% to 96%
Input Voltage Max	6.4 V
Rated Voltage	5 V DC
Rated Current	300 mA
Protection Degree	IP20
Number of Poles	2
Surge Current Capacity	{'Coarse': '<1 kA 8/20 μs', 'Fine': '5 kA 8/20 μs'}
Flammability Rating	V-0
Compliance	{'RoHS': 'Compliant with exemption', 'REACH SVHC': 'Lead 7439-92-1'}
Signal Transmission Properties	-3 dB at 1.2 MHz
