2755990000 - 1500V Over Voltage Protection Box for Inverters, IP65/IP67

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The VPU PV BOX CG II 3 1500 1M is expertly crafted to offer over voltage protection for inverters that utilize a single MPP tracker, ensuring the safety of the DC side Capable of handling a maximum string voltage of 1500 V, this unit features a cable gland input that accommodates cable diameters ranging from 4 to 8 mm and supports a maximum cross-section of 16 mm² Built for easy installation without requiring a DC switch, it also includes a Type II surge protection system.

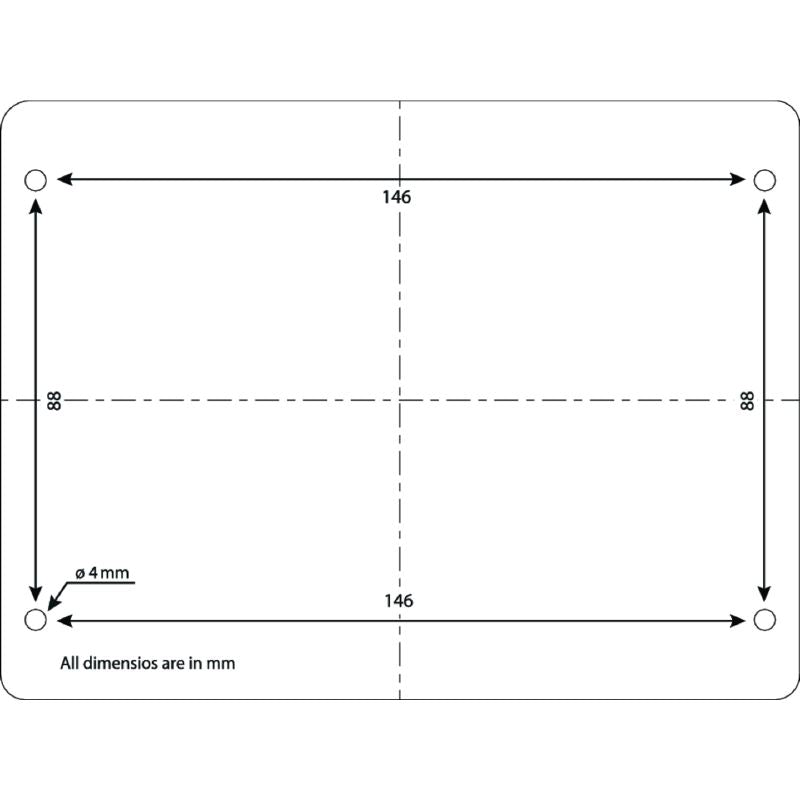

The functional earth is connected through cable glands designed for 8 to 12 mm diameters Constructed from durable plastic, the enclosure complies with protection ratings IP65 and IP67 Its compact dimensions are 168 mm in width, 145 mm in height, and 91 mm in depth, and it adheres to the EN 50539-11 and IEC 61643-31 standards for quality and safety.

Features and Benefits:

•Designed for surge protection for inverters with 1 MPP tracker.

•Max. string voltage support of 1500 V.

•Input connection via cable gland for cable sizes between 4-8 mm.

•Includes Type II surge protection.

•Suitable for installation without a DC switch.

•Functional earth connection via cable glands.

•Meets IP65 and IP67 protection ratings.

•Constructed from durable plastic materials.

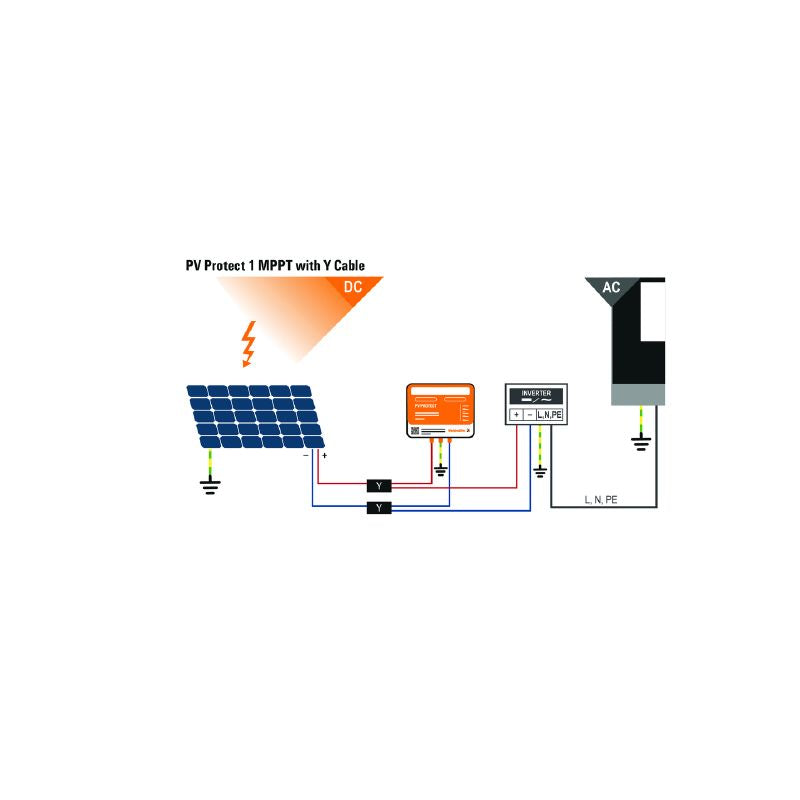

•Used in photovoltaic systems to protect the DC side of inverter connections.
