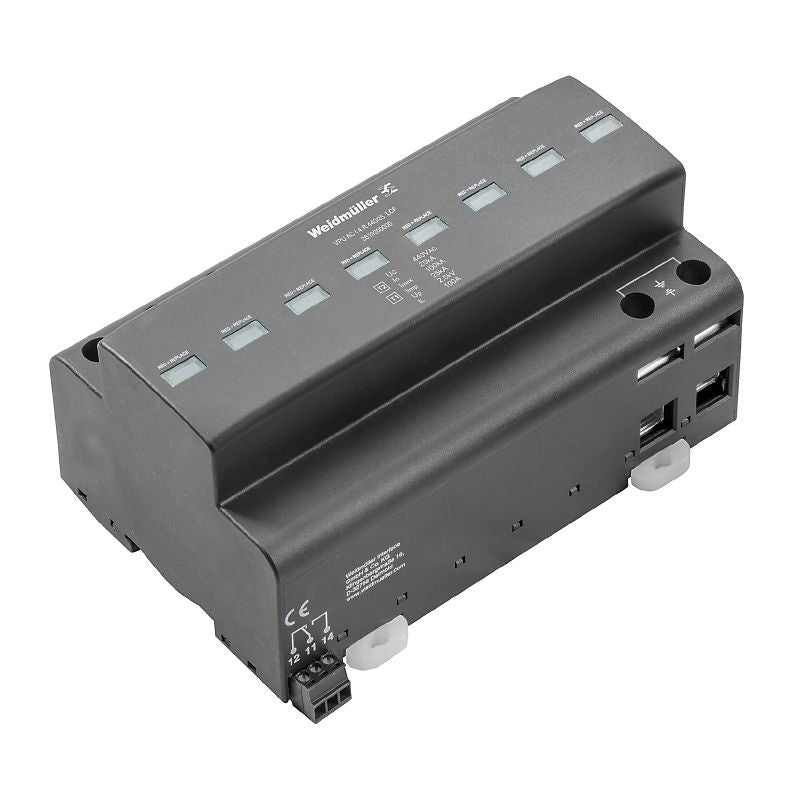

2619200000 - Compact Surge Voltage Arrester for Low Voltage Protection

2619200000 - Compact Surge Voltage Arrester for Low Voltage Protection

SKU: 2619200000 Download PDF

Variant:
  • 2619200000 - Compact Surge Voltage Arrester for Low Voltage Protection
Now $798.05
BEFORE   $0.00 Now $798.05
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Protect your electrical systems with this low voltage surge voltage arrester, specifically engineered for surge protection This device includes a remote contact feature and is suitable for TN-C-S and TN-S systems, ensuring compatibility with various setups Compliant with ROHS regulations, this compact surge arrester is designed to provide reliable performance while efficiently safeguarding your power distribution systems.

Features and Benefits:

    •Installation housing design with 8 terminal entries.

    •Remote contact for alerts.

    •Green optical function display indicating operational status; red display signals a need for replacement.

    •Compact design uniquely suited for count-in installations that are leakage current-free.

    •Mains voltage operational range from 400V to 690V.

    •Power distribution systems.

    •Low voltage surge protection setups.

Specifications:

 Depth 93 mm
 Height 104.5 mm
 Width 144 mm
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 85 °C
 Humidity 5 - 95% relative humidity
 Connection type Screw connection
 Cross-section for connected wire, solid core, max. 1.5 mm²
 Cross-section for connected wire, solid core, min. 0.14 mm²
 Stripping length 8 mm
 Protection degree IP20 in installed state
 Surge voltage category III
 Discharge current I max 100 kA
 Mains voltage 400 V / 690 V
 Max. continuous voltage, Uc (AC) 440 V
 Number of poles 4
 Rated load current I L 100 A
 Rated voltage (AC) 400 V
 Response time ≤ 25 ns
 Short-circuit current rating I SCCR 50 kA
 Signalling contact 250 V 1A 1CO
