2730610000 - Type I Surge Protector, 277V, Compact Design, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

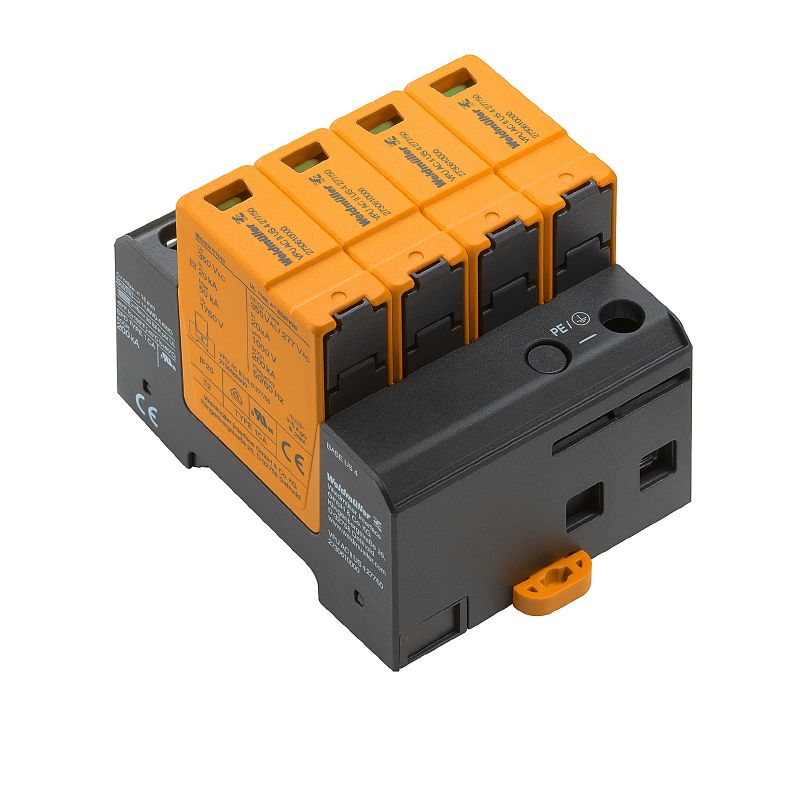

Introducing the VPU AC II US 4 277/50 surge voltage arrester, expertly crafted for low voltage environments, providing reliable surge protection in TN-C-S and TN-S electrical systems This compact device, identified by order number 2730610000, adheres to both RoHS and UL standards for safety and compliance Engineered to perform within a wide temperature range of -40 °C to 85 °C and capable of withstanding humidity levels from 5% to 95%, this surge protection unit operates with a rated voltage of 277V.

It effectively shields your systems with a maximum continuous voltage rating of 350V Classified as a Type I device, it is also equipped with an optical display to easily show its operational status, ensuring peace of mind while you protect your electrical installations.

Features and Benefits:

•Installation housing suitable for mounting rail TS 35.

•The external dimensions include a depth of 68 mm, height of 90 mm, and width of 72 mm.

•Offers a green and red optical function display for system status.

•Ensures protection degree of IP20 when installed.

•Operates efficiently in an altitude of up to 4000 m.

•Certified under UL standards and complies with IEC and EN regulations.

•Surge protection in power distribution networks.

Specifications:
