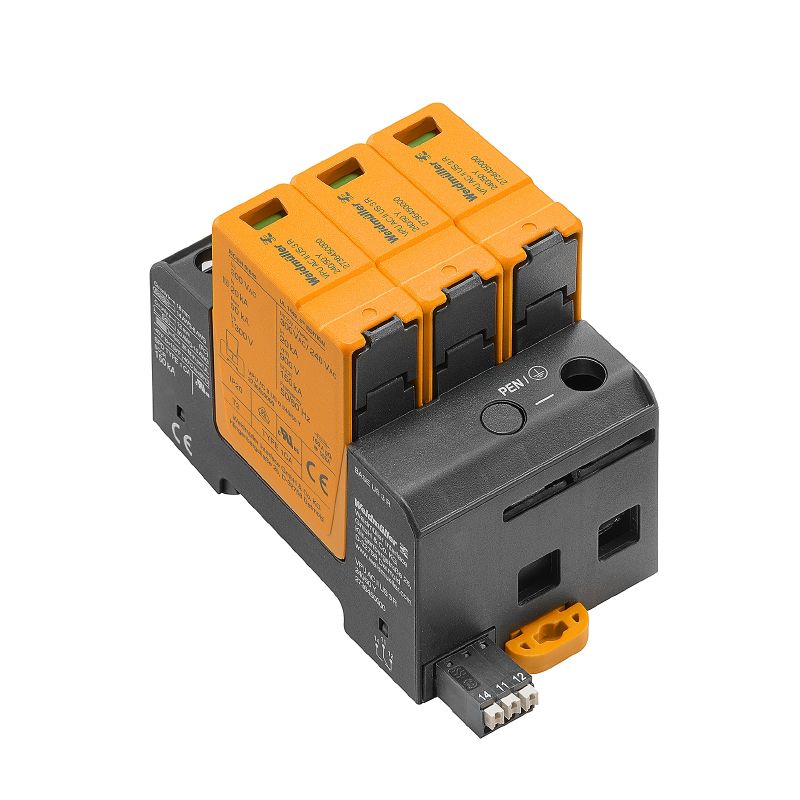

2736450000 - VPU AC II Surge Protector, Compact 54mm Width, 68mm Depth

2736450000 - VPU AC II Surge Protector, Compact 54mm Width, 68mm Depth

SKU: 2736450000   Download PDF

Select a Variant:
  • 2736450000 - VPU AC II Surge Protector, Compact 54mm Width, 68mm Depth
Qty:
Now $297.03   Web pricing policy
BEFORE   $0.00 Now $297.03 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VPU AC II surge voltage arrester, expertly crafted for low voltage applications and reliable surge protection This device features a remote contact function and meets the TN-C standard specifications, ensuring it meets your installation needs with ease Rated for operational temperatures up to 85 °C, it is UL approved with the File Number E354261, giving you peace of mind regarding its safety and quality.

For seamless installation planning, the arrester’s dimensions include a width of 54 mm, a depth of 68 mm, and a height of 1045 mm It is built to withstand various environmental conditions, with storage capabilities ranging from -40 °C to 85 °C and an operational humidity tolerance of 5-95% The VPU AC II is the ideal choice for dependable performance in your power distribution systems.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Optical function display indicates operational status.

    •Supports various connection types, including PUSH IN and screw connection.

    •IP20 protection level in installed state.

    •Flexible connection options accommodating a range of wire sizes.

    •Surge protection in power distribution systems.

    •Low voltage environments.

Specifications:

 Depth 68 mm
 Height 104.5 mm
 Width 54 mm
 Storage temperature -40 °C...85 °C
 Operating temperature -40 °C...85 °C
 Rated Voltage U 240 V
 MCOV (L-PE) 300 V
 SCCR 150 kA
 In 20 kA
 Number of poles 3
 Protection degree IP20 in installed state
 Surge voltage category III
 Discharge current Imax 50 kA
 Discharge current In 20 kA
 Frequency range, max 60 Hz
 Frequency range, min 50 Hz
 Environmental Product Compliance Compliant without exemption
 Connection cross-section AWG, min. AWG 14
 Connection cross-section AWG, max. AWG 6
 Design Installation housing; 3TE
 Insulation coordination acc. to EN 50178 Pollution severity 2
 Response time / fallback time ≤ 25 ns
 Rated data IEC / EN Type II
 Wire connection cross section, finely stranded, max. 35 mm²
