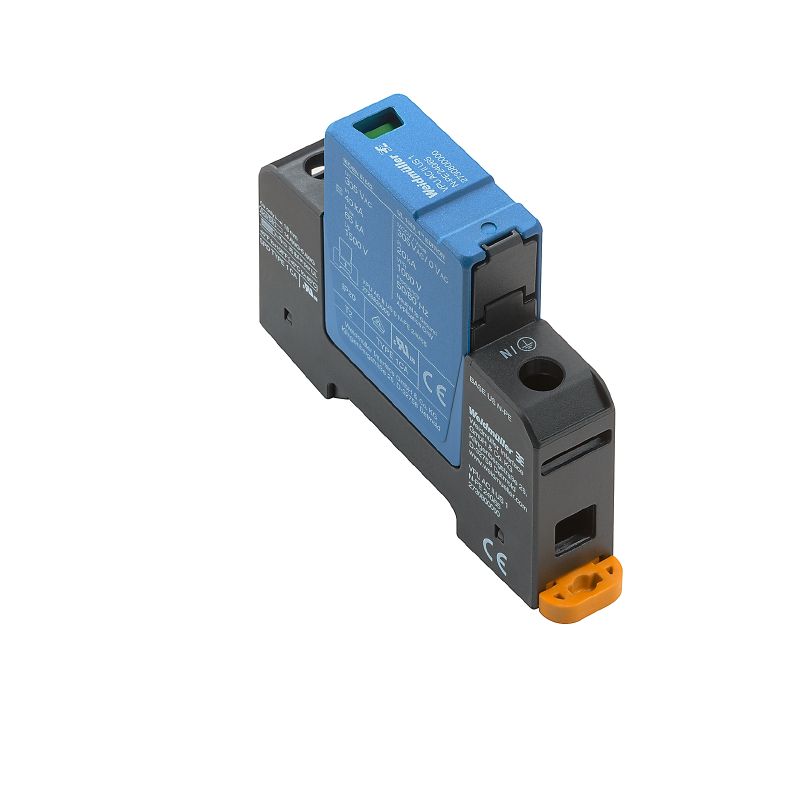

2730800000 - Compact VPU Surge Arrester for Single-Phase Networks

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC II US 1 N-PE 240/65, a dependable surge voltage arrester engineered for low voltage, single-phase TN and TT systems This device ensures effective surge protection and meets RoHS standards while holding a cULus certification (number E354261) With compact dimensions of 68 mm in depth, 90 mm in height, and 18 mm in width, it has a lightweight design at just 111 g The unit operates efficiently in temperatures ranging from -40 °C to 85 °C, making it suitable for use in diverse environmental conditions.

Features and Benefits:

•Screw connection method for wire connections.

•Protection degree of IP20 when installed.

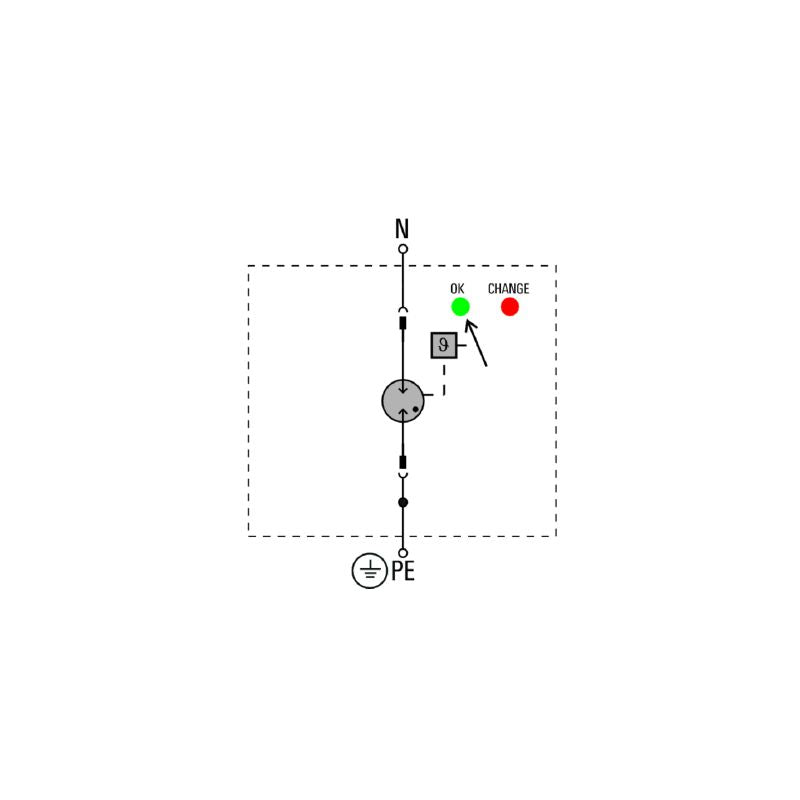

•Optical indicators for operational status.

•Multiple compliance with international standards like IEC 61643-11 and UL 1449.

•Can handle a discharge current of up to 65 kA.

•Designed for easy mounting on TS 35 mounting rail.

•Suitable for IT power systems where the earth on the distribution transformer is interconnected with the consumer side.

Specifications:
