2619130000 - Surge Voltage Arrester for Low-Voltage, Dimensions 93x90x72mm

2619130000 - Surge Voltage Arrester for Low-Voltage, Dimensions 93x90x72mm

SKU: 2619130000   Download PDF

Select a Variant:
  • 2619130000 - Surge Voltage Arrester for Low-Voltage, Dimensions 93x90x72mm
Qty:
Now $394.69   Web pricing policy
BEFORE   $0.00 Now $394.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

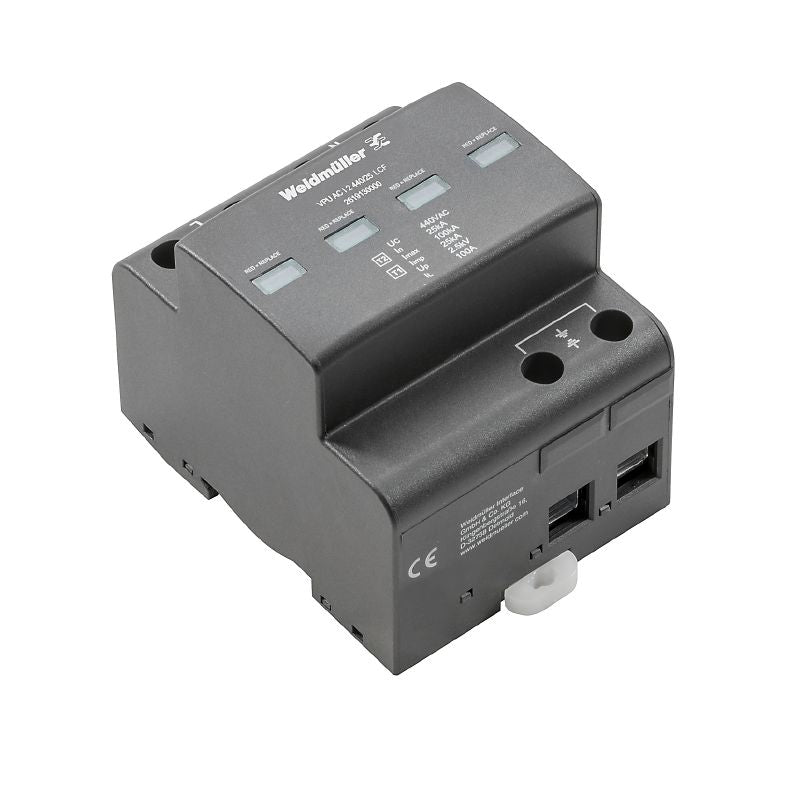

Introducing the VPU AC I 2 440/25 LCF, a robust surge voltage arrester tailored for low-voltage applications, specifically within single-phase TN-S systems This device meets RoHS compliance standards, ensuring it adheres to essential environmental regulations Measuring 93 mm deep, 90 mm high, and 72 mm wide, it is lightweight at just 25 grams The arrester operates efficiently in both storage and usage conditions, with temperature ranges between -40 °C and 85 °C and can withstand relative humidity levels from 5% to 95%.

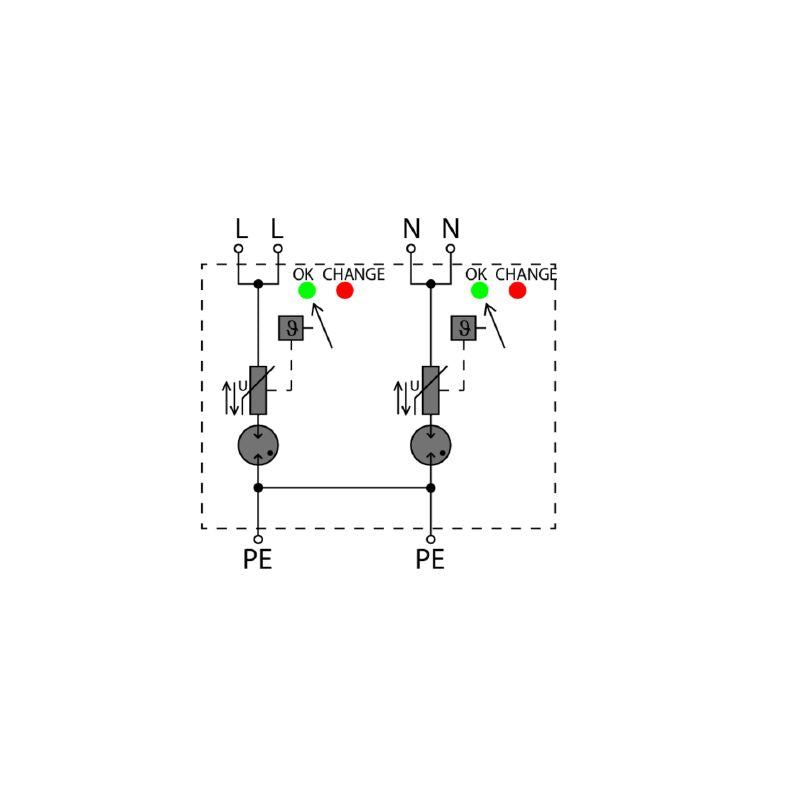

It provides reliable surge protection without leakage current, making it an ideal choice for sensitive installations Additionally, its optical status display utilizes color coding for easy monitoring: a green light signifies normal operation, while a red light alerts to any faults.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Designed for single-phase applications in TN-S power distribution.

    •Integrated optical function display for status indication.

    •Designed for count-in installations without leakage current.

    •IP20 protection level in installed state.

    •Rated for discharge current capacities up to 100 kA.

    •Single-phase TN-S systems.

    •Surge protection in power distribution.

Specifications:

 Depth 93 mm
 Height 90 mm
 Width 72 mm
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 85 °C
 Humidity 5 - 95% relative humidity
 Discharge current I max 100 kA (8/20µs) wire-PE
 Discharge current I n 25 kA (8/20µs) wire-PE
 Max continuous voltage, Uc (AC) 440 V
 Rated load current I L 100 A
 Number of poles 2
 Protection level U p at I N (L/N-PE) ≤ 2.5 kV
 Frequency range, max 60 Hz
 Frequency range, min 50 Hz
 Response time ≤ 25 ns
 Standards IEC 61643-11, EN 61643-11
 Protection degree IP20 in installed state
 Connection method Screw connection
 Clamping range 6 - 35 mm²
