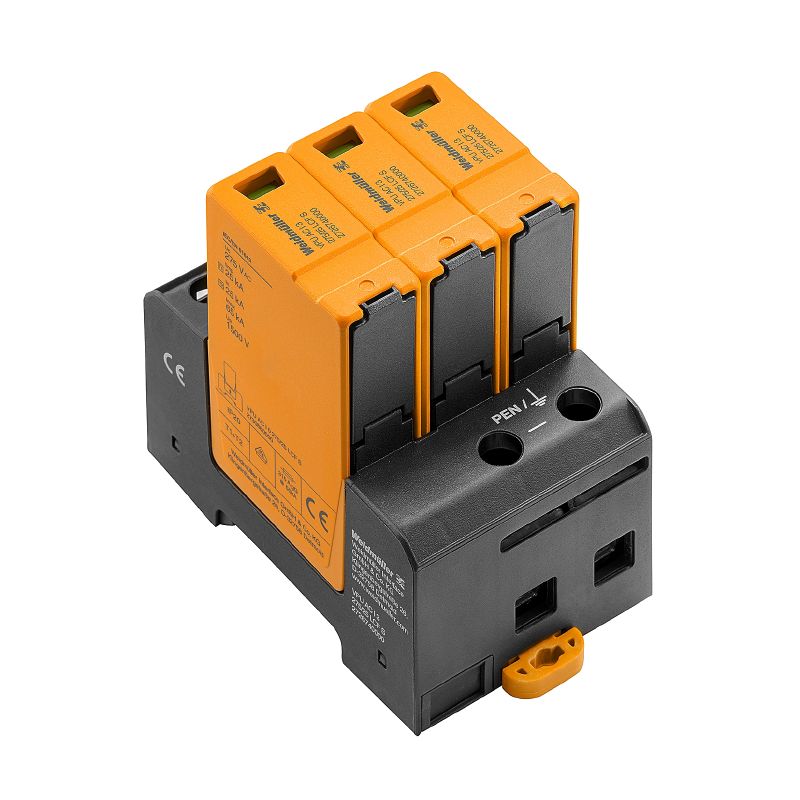

2726740000 - Compact Surge Protection Device, IP20, 91mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ideal solution for your surge protection needs—this surge voltage arrester, specifically designed for low voltage applications, omits a telecommunication contact for a streamlined functionality Engineered to prevent leakage current, it delivers reliable surge protection within TN-C networks Compact in design, it measures 91 mm deep, 90 mm high, and 54 mm wide, with a lightweight build of just 499 g.

It performs efficiently across a diverse temperature range of -40 °C to 85 °C and thrives in humidity levels from 5% to 95% Complying strictly with RoHS regulations and adhering to REACH standards, this unit contains no substances exceeding 01 wt% It can handle maximum operating altitudes of up to 2000 m and boasts an IP20 protection degree upon installation, ensuring durability and efficiency in various environments.

Features and Benefits:

•Leakage current-free.

•Surge protection.

•Compliant with RoHS regulations.

•Ul 94 flammability rating of V-0.

•Optical function display indicates operational status.

•Installation housing designed for mounting on TS 35 rails.

•Power distribution.

•Low voltage networks.

Specifications:
