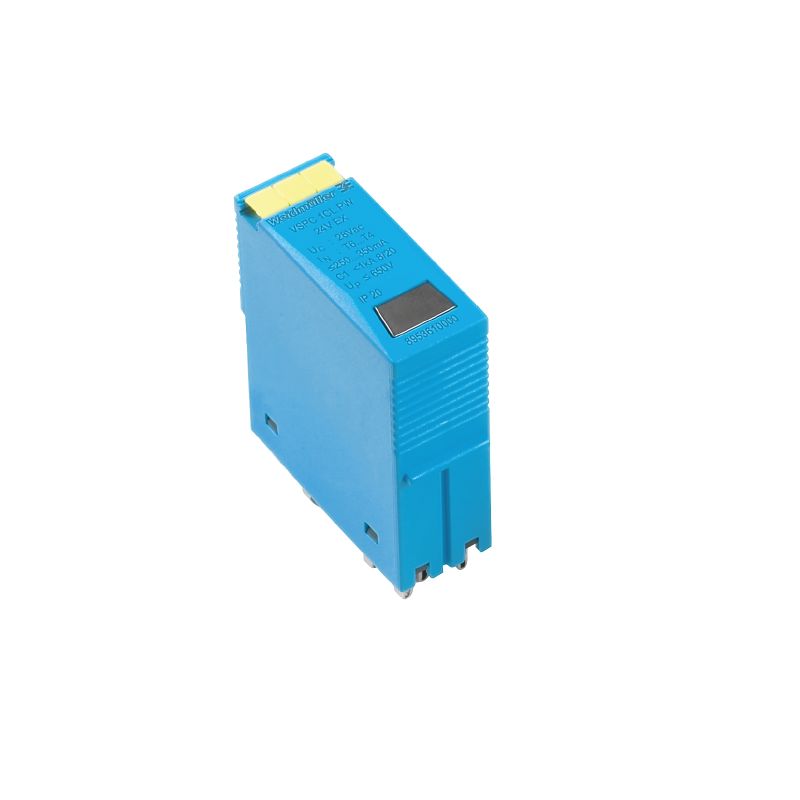

8953640000 - VSPC Dual-Stage Surge Protector for 48VAC Instrumentation

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

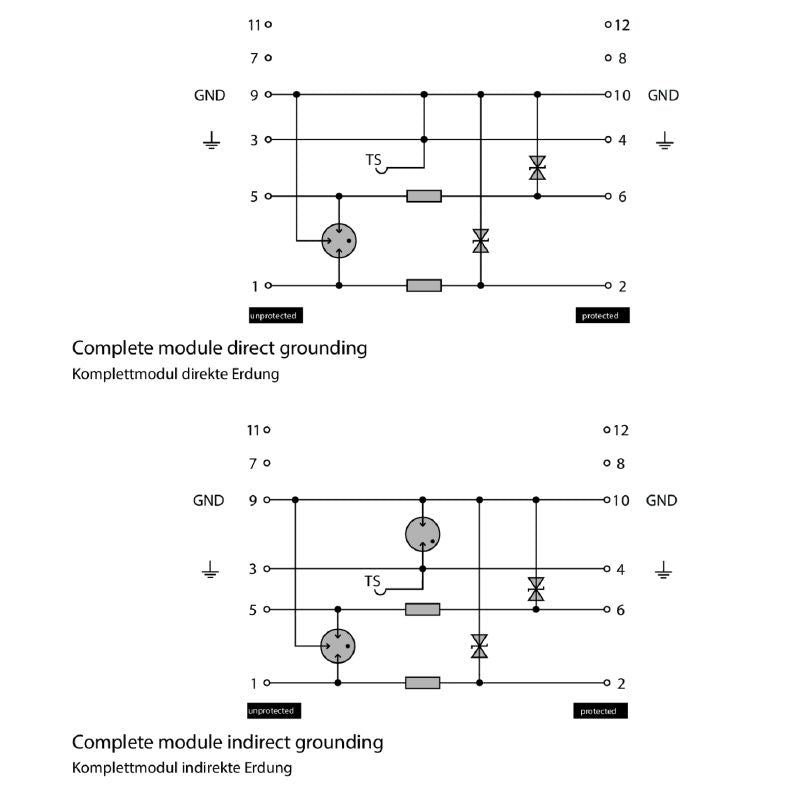

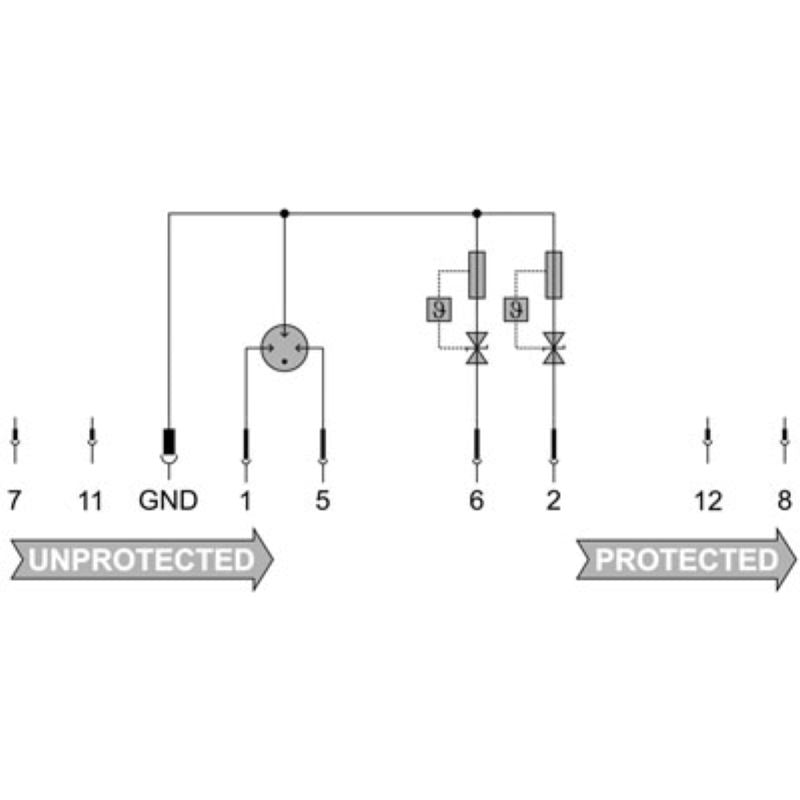

Introducing the VSPC 2SL 48VAC EX, a specialized surge protection solution tailored for instrumentation and control systems This device operates without warning indicators, ensuring a seamless experience It meets RoHS compliance standards and offers an easy installation process Designed to pair with the VSPC BASE 2SL FG, it supports two wires that utilize a shared ground The unit features a dual-stage protection circuit that includes coarse protection mechanisms, decoupling resistors, and advanced protection specifically for signal wires and ground connections.

Protect your systems with confidence using this effective surge protection device.

Features and Benefits:

•In compliance with IEC 61508 SIL 2 standards.

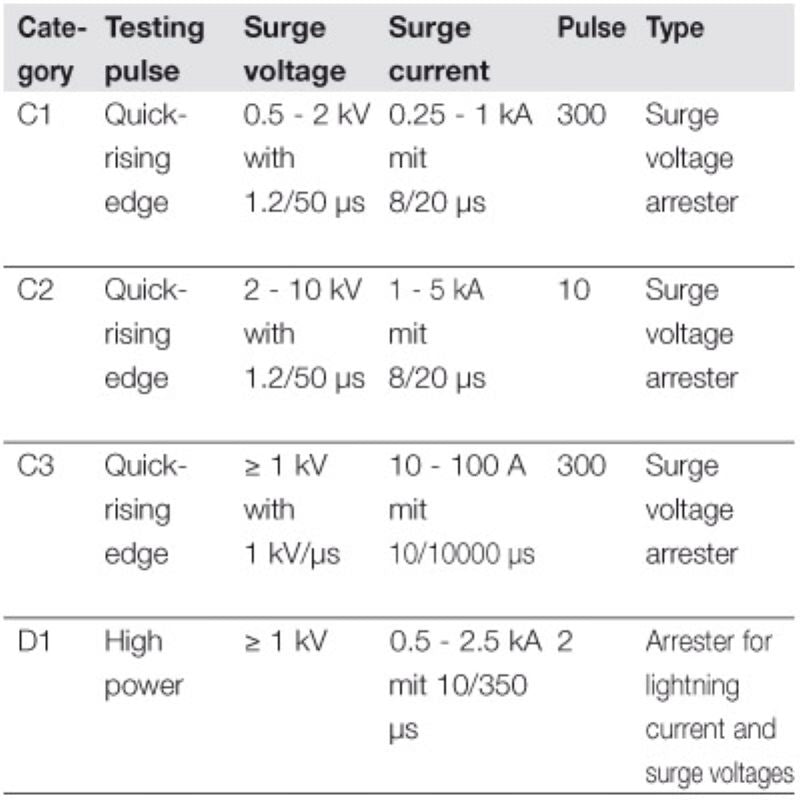

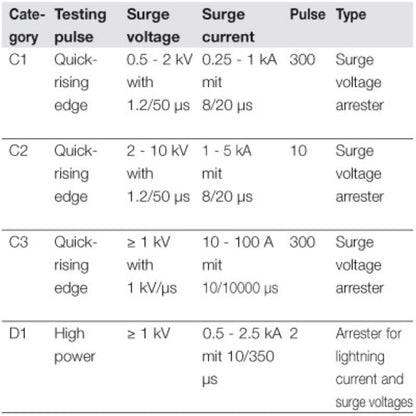

•Includes surge voltage categories.

•Light blue color for visual distinction.

•Compact dimensions for ease of installation.

•Single-pole configuration.

•Used in instrumentation and control applications where surge protection is needed for intrinsically safe powered signal cables.

Specifications:
