2730690000 - Surge Protection Device for TN Systems, -40°C to 85°C

SKU: SKU: 2730690000 Download PDF

Select a Variant:

2730690000 - Surge Protection Device for TN Systems, -40°C to 85°C

SET THE QTY:

Now $57.01 Web pricing policy

~~BEFORE $0.00~~ Now $57.01 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

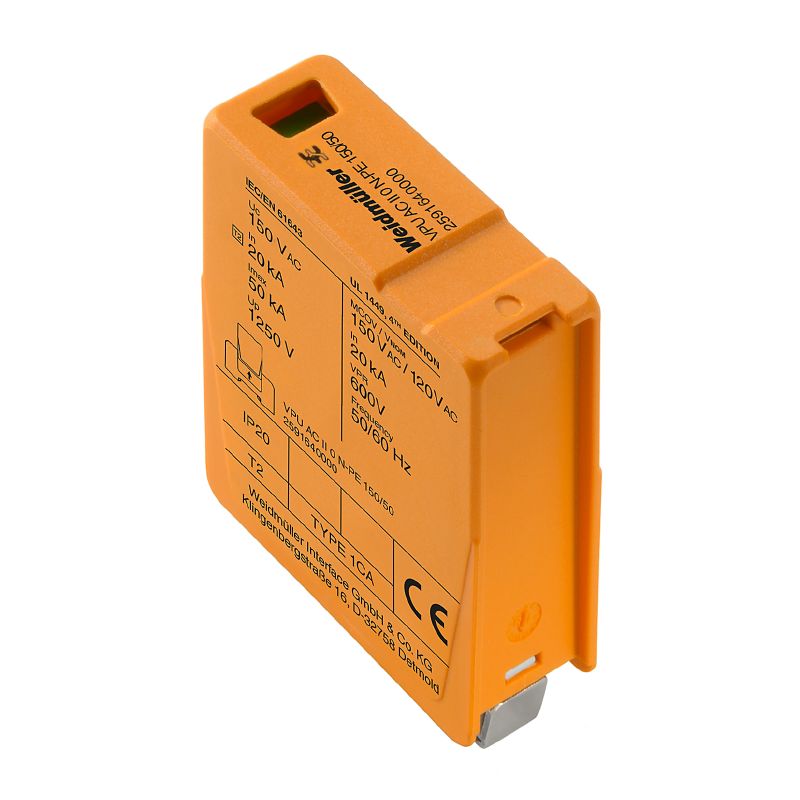

Introducing a reliable single-phase surge protection device, tailored for TN systems This unit ensures effective surge protection and is capable of functioning in ambient temperatures up to 85 °C, with an impressive operational range from -40 °C to 85 °C It meets RoHS compliance standards and supports a maximum continuous voltage of 480 V, making it an essential component for your electrical safety needs.

Features and Benefits:

•Rated Voltage U N: 400 V.

•Surge voltage category: III.

•Protection degree: IP20 in installed state.

•Housing design: Installation housing; 1TE.

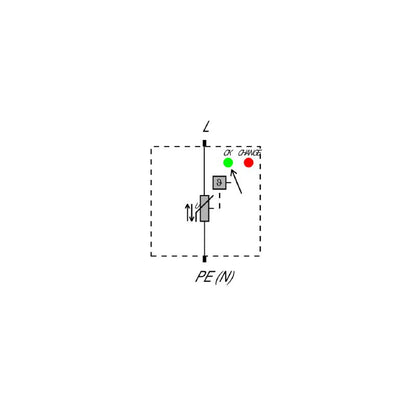

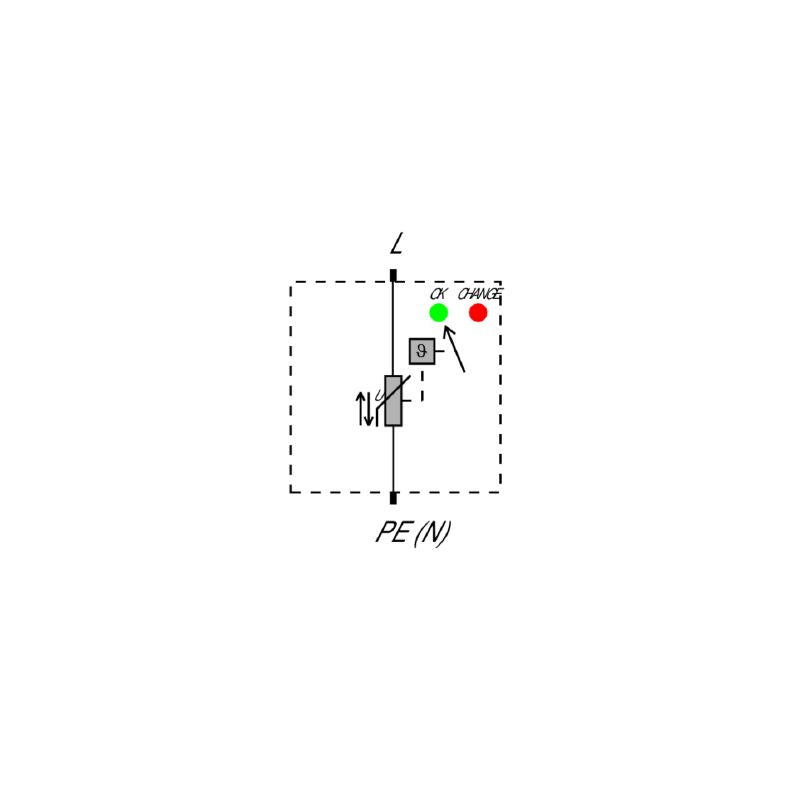

•Visual function display: green = OK; red = arrester is defective - replace.

•Number of poles: 1.

•Response time / fallback time: ≤ 25 ns.

•Max. continuous voltage, Uc (AC): 480 V.

•Power distribution.

•Surge protection in single-phase systems.

Specifications:

Depth	64 mm
Height	45 mm
Width	18 mm
Storage temperature	-40 °C to 85 °C
Operating temperature	-40 °C to 85 °C
Humidity	5 - 95% relative humidity
Rated data UL	{'VPR (N-PE)': '1,500 V', 'MCOV (L/N-PE)': '480 V', 'SCCR': '200 kA', 'I n': '20 kA'}
Discharge current I max (8/20µs) wire-PE	50 kA
Discharge current I n (8/20µs) wire-PE	20 kA
Max short-circuit current rating I SCCR	50 kA
Leakage current at U n	0.3 mA
IEC/EN Requirements category	Type II
Standards	IEC61643-11, EN61643-11, UL 1449
