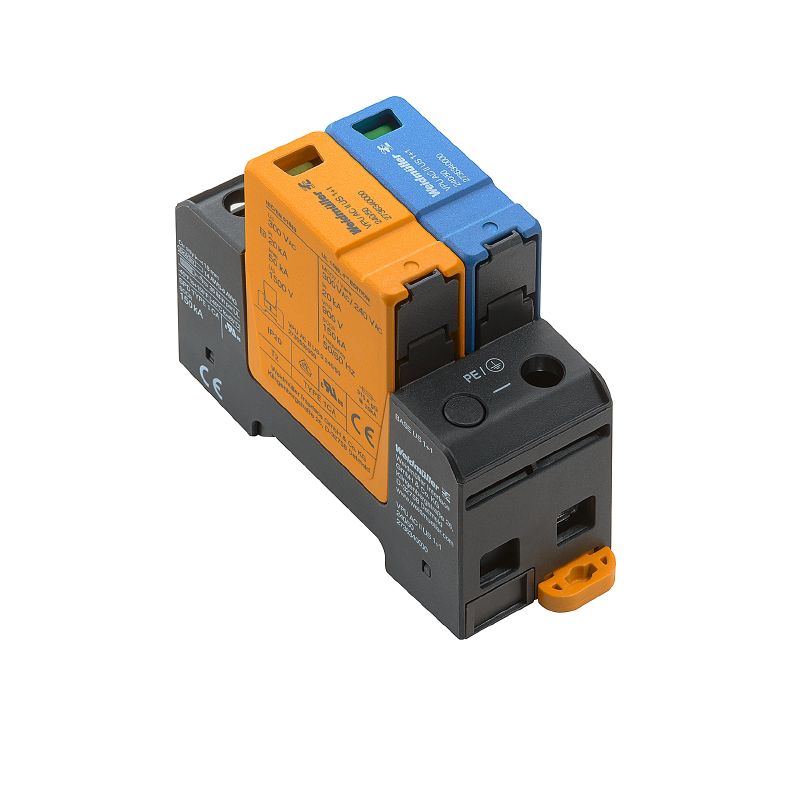

2736340000 - Compact Voltage Arrester for Low Voltage Electrical Systems

2736340000 - Compact Voltage Arrester for Low Voltage Electrical Systems

SKU: 2736340000   Download PDF

Select a Variant:
  • 2736340000 - Compact Voltage Arrester for Low Voltage Electrical Systems
Qty:
Now $127.31   Web pricing policy
BEFORE   $0.00 Now $127.31 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Protect your electrical systems with this surge voltage arrester, specifically engineered for low voltage applications It provides robust defense in single-phase setups like TN, TT, and IT networks, regardless of neutral presence Featuring UL certification E354261, this arrester is capable of handling various surge levels, ensuring reliable safeguards for your installations Its compact design simplifies installation on TS 35 mounting rails, while an integrated optical display clearly indicates the operational status, making it both user-friendly and efficient.

Features and Benefits:

    •Compact design for easy installation.

    •Optical function display.

    •Environmentally compliant with RoHS standards.

    •Compliant with IEC and EN standards.

    •Surge protection in electrical distribution systems.

Specifications:

 Depth: 68 mm
 Height: 90 mm
 Width: 36 mm
 Operating temperature: -40 °C...85 °C
 Rated Voltage U: 240 V
 VPR (N-PE): 1,000 V
 SCCR: 150 kA
 Ambient temperature (operational), max.: 85 °C
 Protection degree: IP20 in installed state
 Discharge current I max (8/20µs) N-PE: 65 kA
 Number of poles: 2
 Voltage type: AC
