2619190000 - Surge Voltage Arrester for Low Voltage Systems

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

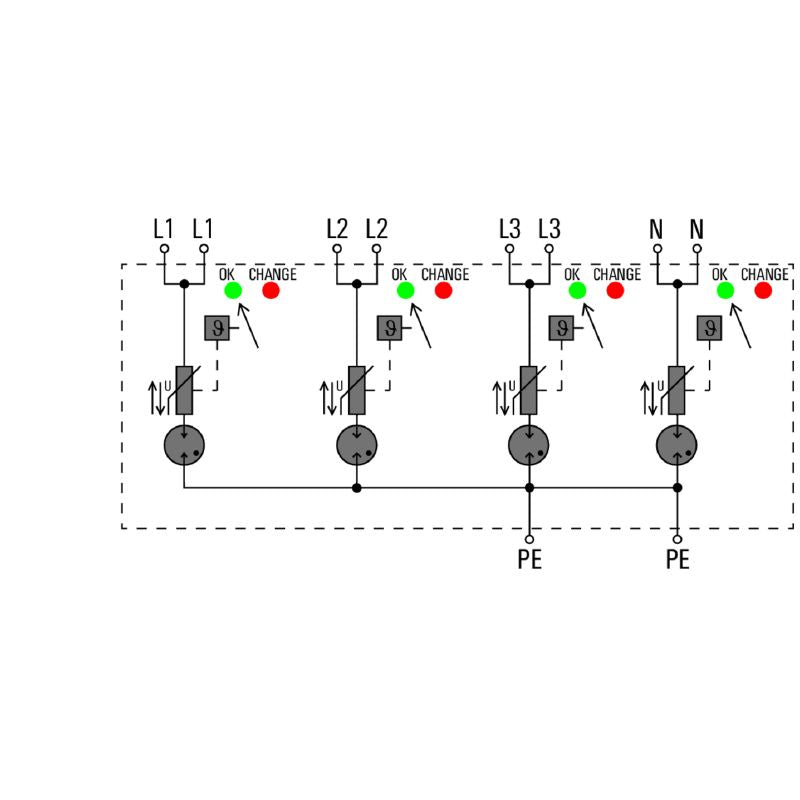

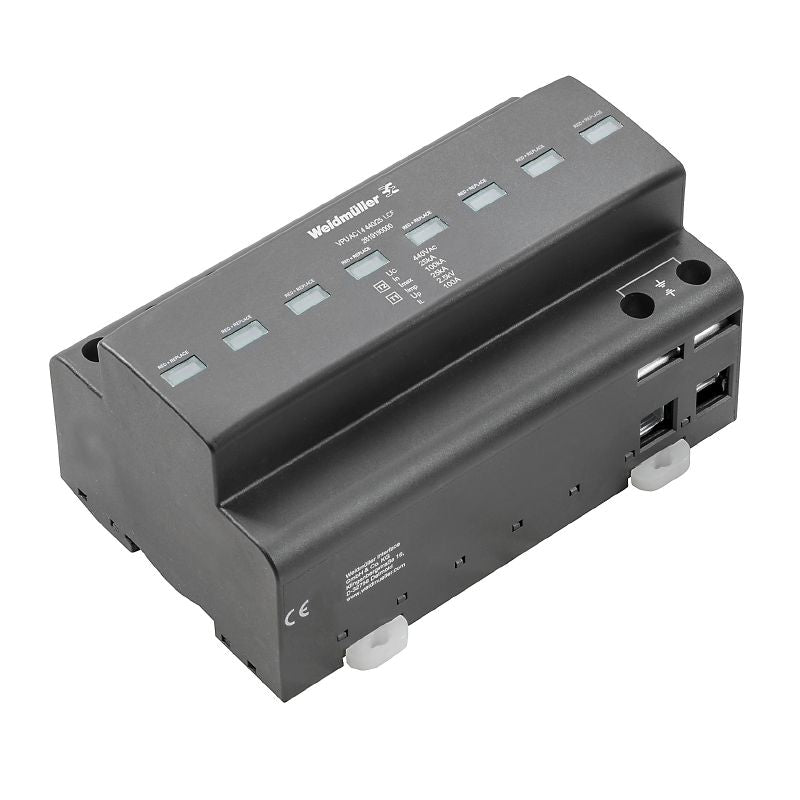

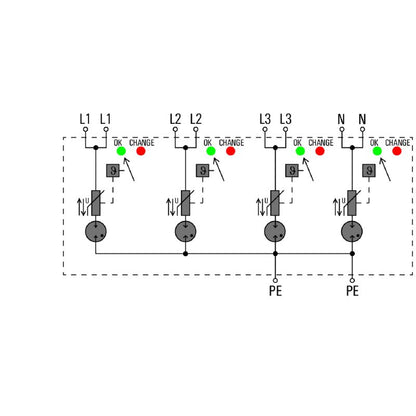

Ensure your low voltage systems are protected with this surge voltage arrester, specifically crafted for TN-C-S and TN-S applications It comes with an order number of 2619190000 and adheres to RoHS regulations for safety Designed for easy installation, it mounts securely on a TS 35 rail, making it an excellent choice for power distribution needs This arrester features an optical function display: a green light signals that it is operating effectively, while a red light indicates when replacement is necessary.

Capable of handling a maximum discharge current of 100 kA from wire to PE, this device operates efficiently within a temperature range of -40 °C to 85 °C, ensuring reliable performance in various environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•Suitable for count-in installation without leakage current.

•Operating altitude up to 2000 m.

•IP20 rated in installed state.

•High discharge current handling capability.

•Used in low voltage power distribution systems.
