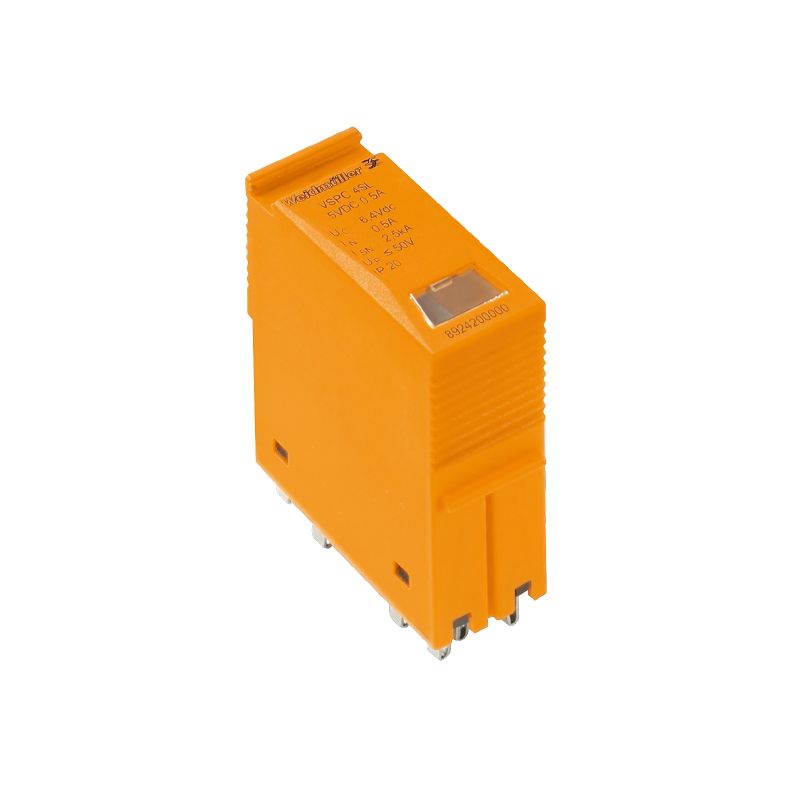

8924670000 - 250V Surge Protection Device for Control Systems IP20

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

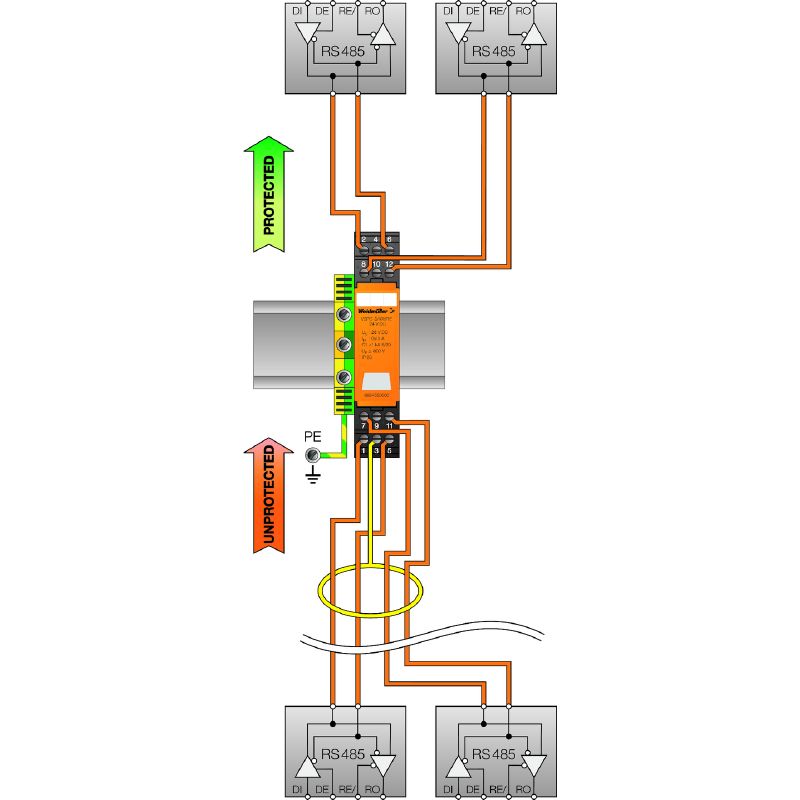

Enhance the reliability of your instrumentation and control systems with the VSPC RS485 2CH model, specifically engineered for surge protection Operating at 250 V for both live and earth connections, this device does not include a warning feature or function indicator It adheres to RoHS standards and boasts a UL certification number E311081, ensuring high quality With an IP20 protection rating, it effectively safeguards against solid objects over 12 mm in size, making it suitable for various measurement and monitoring applications.

This model is also compliant with both RoHS and REACH regulations and carries a SIL rating according to IEC 61508 standards, showcasing its environmental accountability.

Features and Benefits:

•Compliant with RoHS exemption.

•Suitable for ambient temperatures ranging from -40 °C to 70 °C.

•Internal capacity is maximally 11 nF.

•Discharge current capacity varies for GND-PE and wire configurations.

•Protected against various voltage types, including AC/DC.

•Instrumentation and control systems.

•Bus systems requiring surge protection.

Specifications:
