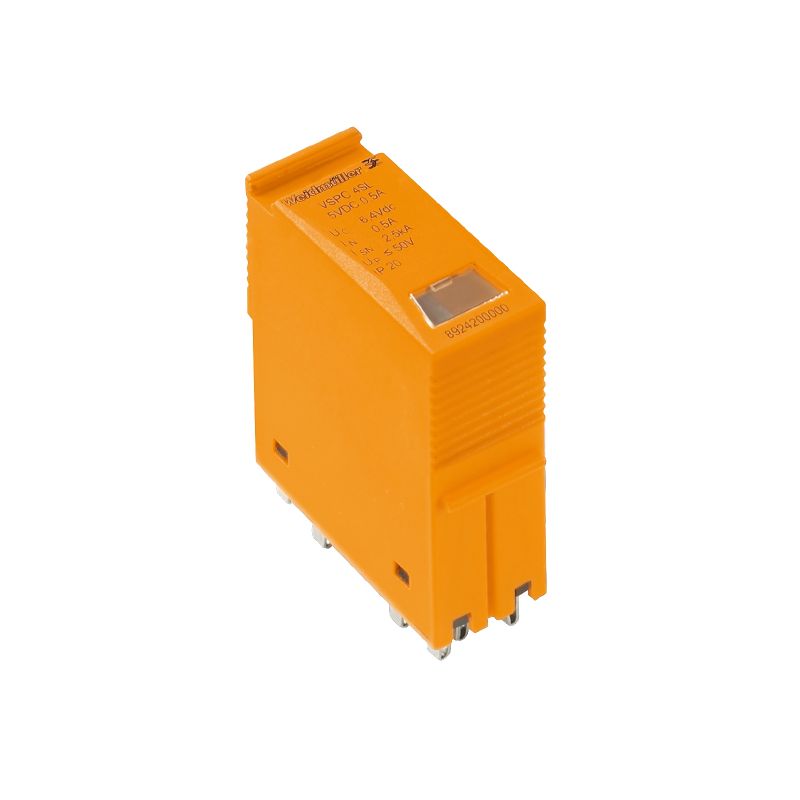

8924460000 - Compact Surge Protector, 69mm Depth, UL Certified

Description:

Introducing the VSPC 2CL HF 12VDC surge protector, specifically engineered for safeguarding instrumentation and control systems This compact device, measuring 69 mm in depth, 90 mm in height, and 178 mm in width, weighs just 47 grams, making it easy to integrate into various setups With UL certification (E311081) and adherence to RoHS standards, you can trust its safety and environmental compliance.

Designed to operate in extreme conditions, it functions effectively within a temperature range of -40 °C to 70 °C and can handle humidity levels from 5% to 96% The VSPC 2CL HF offers multiple discharge current capabilities, providing reliable lightning protection while ensuring signal integrity without the need for warning or indicator functions.

Features and Benefits:

•Compliant with RoHS exemption 7a, 7cI.

•Compact design suitable for IT use.

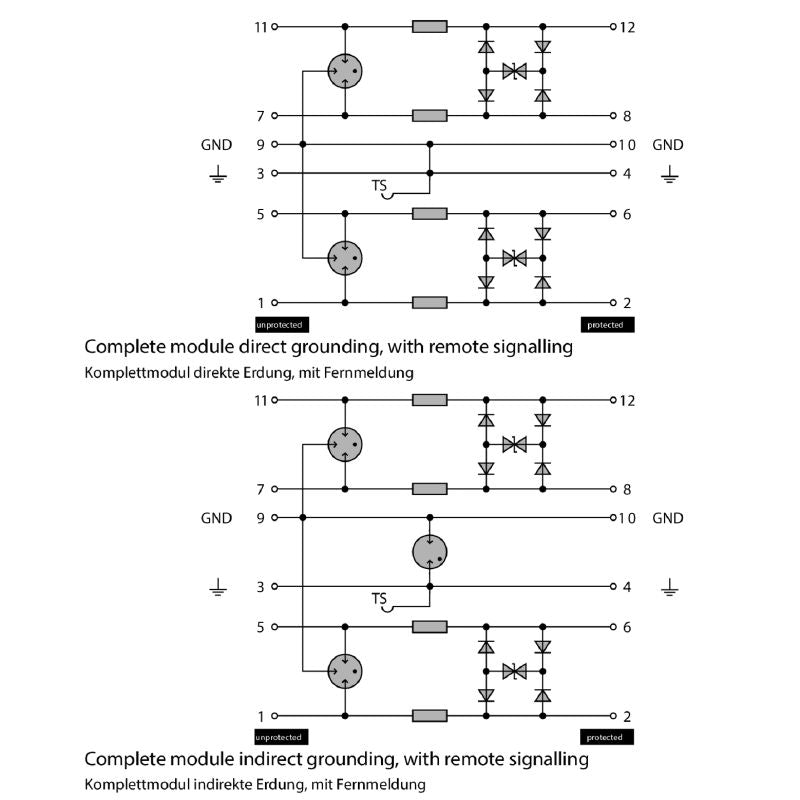

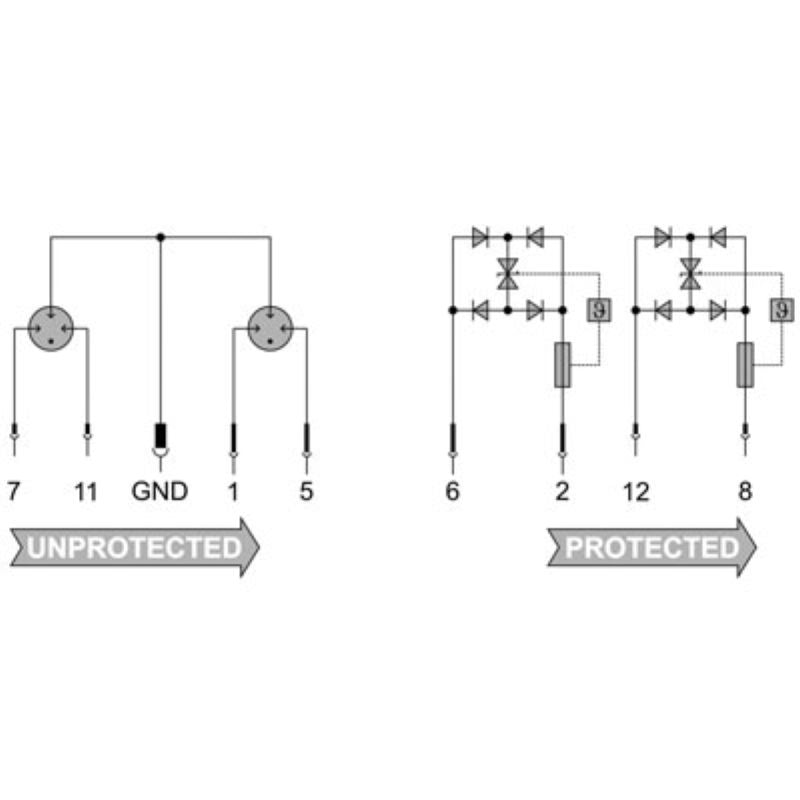

•Two-stage protection circuit with operational safety features.

•Optical identifying features for protected plugs.

•Compatible with VSPC BASE 2CL for ease of integration.

•Protected plug with coding pin for security.

•Instrumentation and control systems.

•Surge protection for paired cables.

Specifications:
