Description:

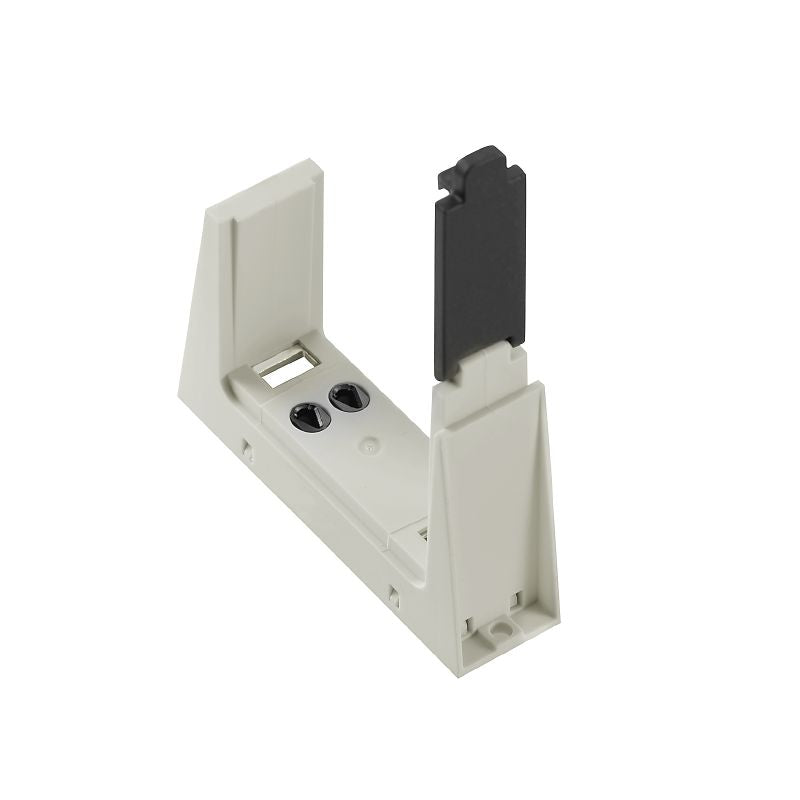

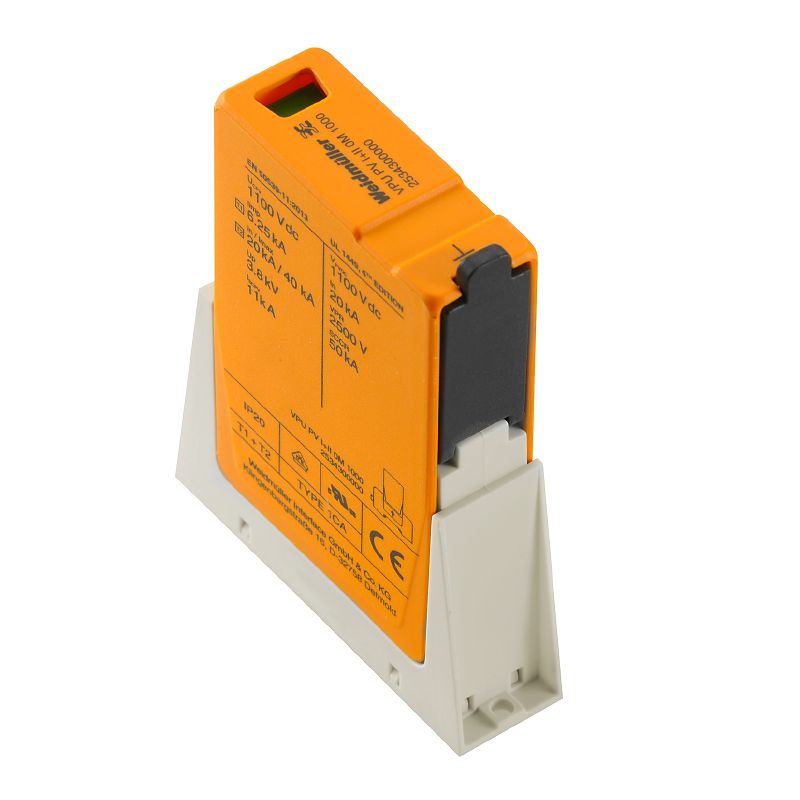

Introducing the VPCB PV I+II M 1000, engineered to comply with EN 50539-11 standards This RoHS-compliant component is built to withstand a variety of environmental conditions, functioning efficiently in storage and operational temperatures ranging from -40 °C to 85 °C Specifically designed for photovoltaic systems, it supports a maximum system voltage of 1,500 V and can handle surge currents up to 40 kA, ensuring reliable performance in various installations.

Features and Benefits:

•RoHS compliant without exemptions.

•Suitable for photovoltaic applications.

•IP20 protection degree.

•Operating height in the grounded PV system up to 4000 m.

•Designed for DC voltage type.

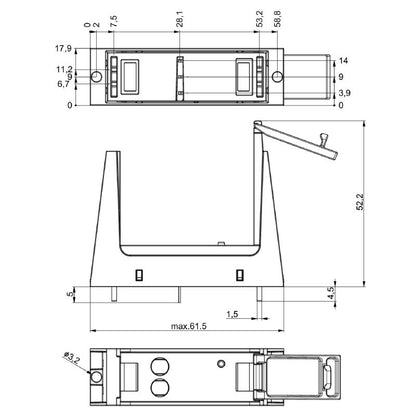

Specifications:

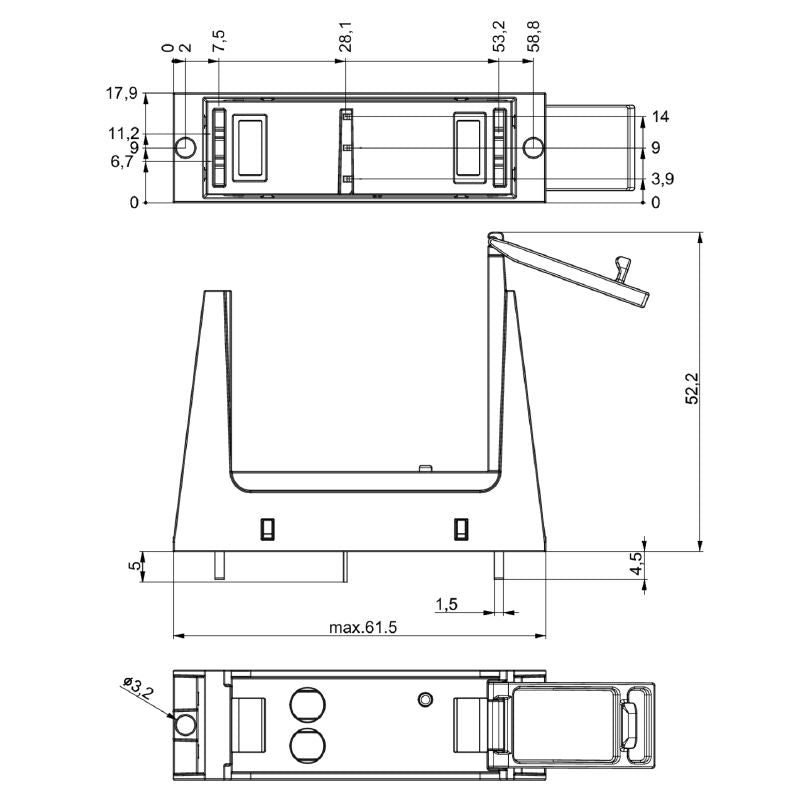

Depth	52.2 mm
Height	61.6 mm
Width	17.9 mm
Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C
Humidity	5 - 95% relative humidity
Protection degree	IP20
UL 94 flammability rating	V-0
Discharge current I n (8/20 µs)	20 kA
Lightning test current I imp (10/350 µs)	6.25 kA
Max system voltage U cpv	1,500 V
Short-circuit current I SCPV	11 kA
Number of poles	1
Type of connection	Solder connection when screwed in
