2736420000 - Low Voltage Surge Arrester for Single-Phase Systems

2736420000 - Low Voltage Surge Arrester for Single-Phase Systems

SKU: 2736420000 Download PDF

Variant:
  • 2736420000 - Low Voltage Surge Arrester for Single-Phase Systems
Now $67.41
BEFORE   $0.00 Now $67.41
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

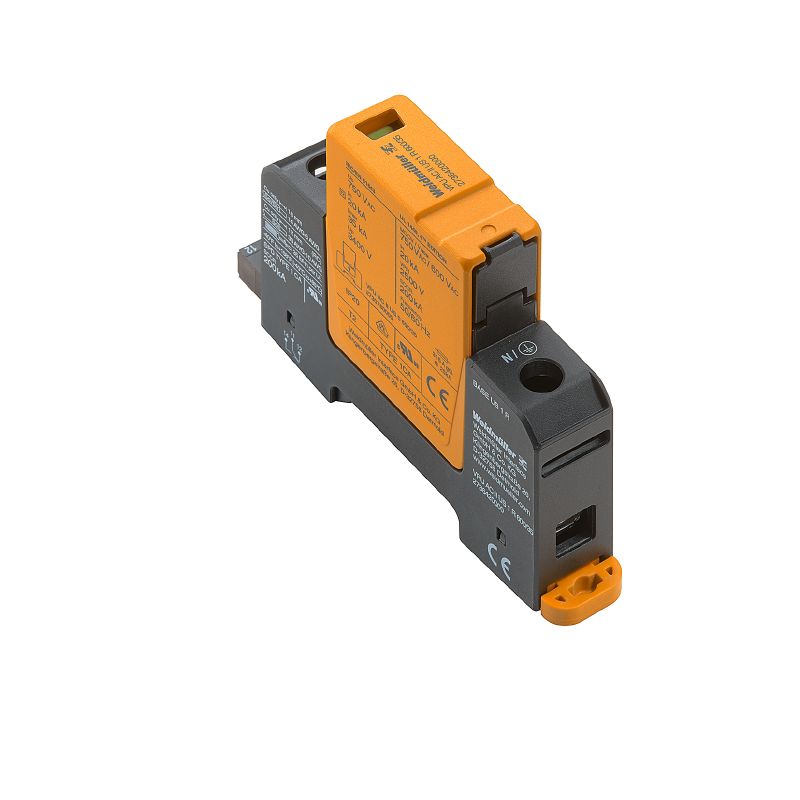

Ensure optimal surge protection with the VPU AC II US 1 R 600/35, a low voltage surge arrester specifically designed for robust performance This device features remote contact functionality and is compatible with single-phase TN systems It meets RoHS standards and carries a cULus certification, under file number E354261 Ideal for integrating into power distribution systems, this arrester combines reliability with essential safety features for your electrical setup.

Features and Benefits:

    •Surge protection for single-phase systems.

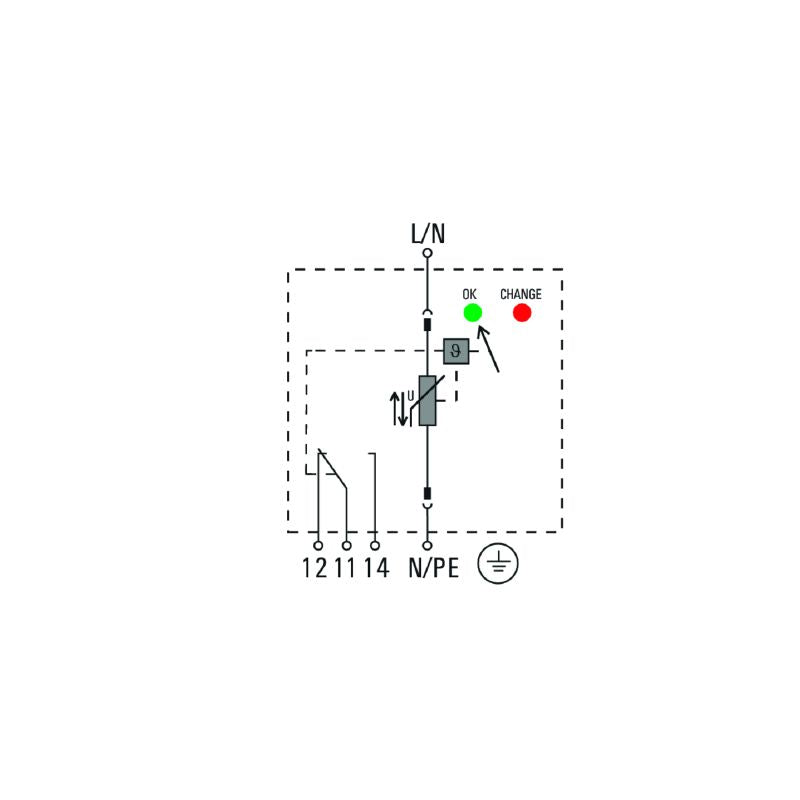

    •Remote contact functionality.

    •Compliant with RoHS regulations.

    •Can withstand severe environmental conditions with a temperature range of -40 °C to 85 °C.

    •Visual indication with green for operational status and red for defective state.

    •Power distribution systems.

Specifications:

 Rated Voltage U N 600 V
 Max. continuous voltage, Uc (AC) 750 V
 Discharge current I n (8/20µs) wire-PE 20 kA
 Discharge current I max (8/20µs) wire-PE 35 kA
 Protection degree IP20 in installed state
 Number of poles 1
 Response time / fallback time ≤ 25 ns
 SCCR 50 kA
 Operating temperature -40 °C...85 °C
 Storage temperature -40 °C...85 °C
 Connection type PUSH IN
 Stripping length 12 mm
 Ambient temperature (operational), max. 85 °C
 Ambient temperature (operational), min. -40 °C
 MCOV (L-PE) 750 V
 Surge voltage category III
 Voltage type AC
 Working environment humidity 5 - 95% relative humidity
 Flammability rating V-0
