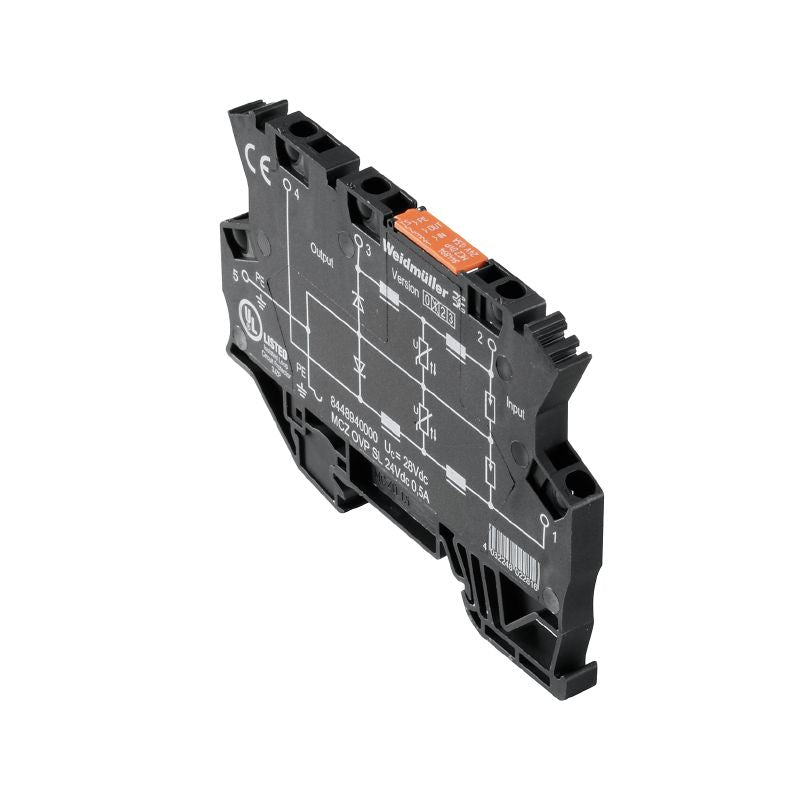

8448940000 - Surge Protector for Instrumentation and Control Applications (Pack of 10)

8448940000 - Surge Protector for Instrumentation and Control Applications (Pack of 10)

SKU: 8448940000 Download PDF

Variant:
  • 8448940000 - Surge Protector for Instrumentation and Control Applications (Pack of 10)
Now $573.63
BEFORE   $0.00 Now $573.63
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure your instrumentation and control systems are secure with this specialized surge protection device Perfectly suited for measurement and control applications, it offers reliable safeguarding This product is identified by order number 8448940000 and comes with a GTIN of 4032248022816 Each package contains 10 units, making it an excellent choice for bulk purchases.

Features and Benefits:

    •Surge protection for instrumentation and control.

    •Protection degree IP20.

    •Includes spring connection type method.

    •Compliant with RoHS and follows exemption 7a.

    •Flammability rating of V-0.

    •Designed for measurement monitoring and setting.

Specifications:

 Depth 63.5 mm
 Height 91 mm
 Width 6 mm
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 60 °C
 Discharge current, I imp (10/350 µs) 1 kA
 Discharge current, max. (8/20 µs) 5 kA
 Fuse protection 0.5 A
 Inductance L and L1 75 µH
 Max. continuous voltage, Uc (AC) 28 V
 Operating current, I max. 0.5 A
 Rated voltage (DC) 24 V
 Protection level on output side Wire-PE 1kV/µs, typically 40 V
 Protection level on output side Wire-PE 8/20 µs, typically 65 V
 Protection level on output side Wire-wire 1 kV/µs, typically 80 V
 Protection level on output side Wire-wire 8/20 µs, typically 130 V
 Rated current I N 0.5 A
 Rated voltage (DC), max. 28 V
 Response time / fallback time ≤ 100 ps
 Volume resistance 2.50 Ω
 Clamping range, rated connection 1.5 mm²
 Clamping range, min. 0.5 mm²
 Clamping range, max. 1.5 mm²
 Wire connection cross section AWG, min. AWG 26
 Wire connection cross section AWG, max. AWG 16
 Wire cross-section, solid, min. 0.5 mm²
 Wire cross-section, solid, max. 1.5 mm²
 Blade size 0.6 x 3.5 mm
