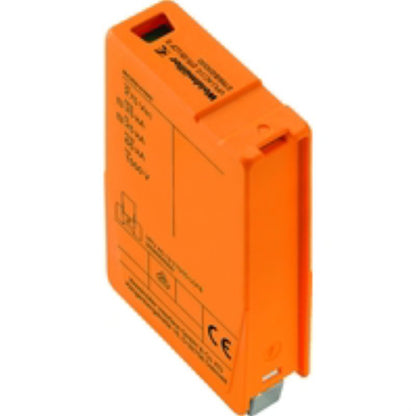

2730840000 - Surge Protector with Optical Display, -40 to 85 °C Operating Range

SKU: SKU: 2730840000 Download PDF

Select a Variant:

2730840000 - Surge Protector with Optical Display, -40 to 85 °C Operating Range

SET THE QTY:

Now $240.89 Web pricing policy

~~BEFORE $0.00~~ Now $240.89 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

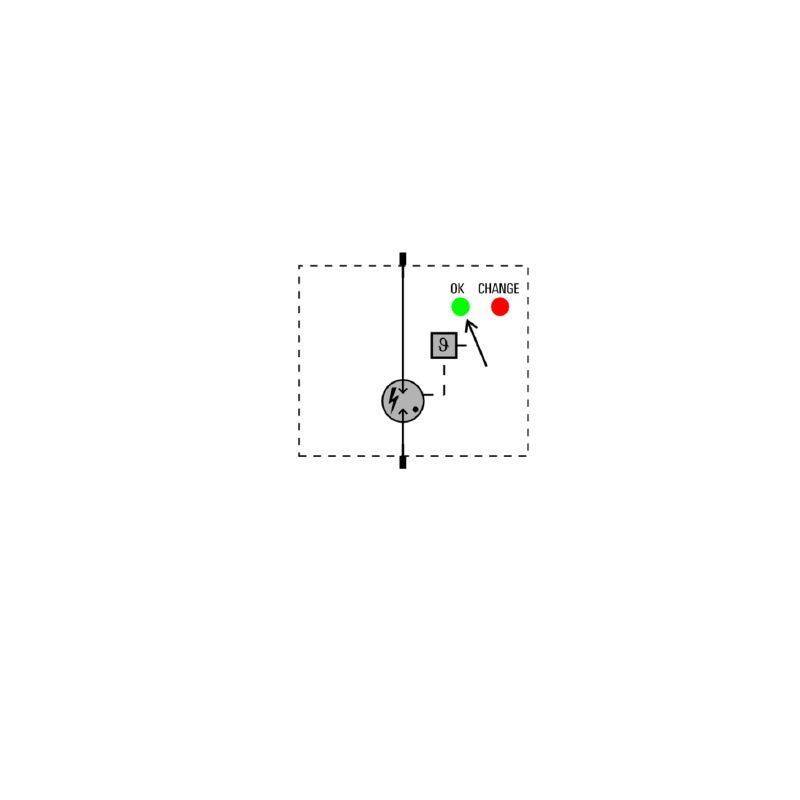

Introducing the VPU AC I 0 275/25 LCF 2PE, a high-performance surge arrester engineered for dependable, leakage-free operation This device is RoHS compliant and includes a single-pole installation housing It efficiently operates in temperatures ranging from -40 °C to 85 °C and is suitable for use at elevations of up to 4000 meters The arrester features a green optical function display to communicate its operational status, while a red signal alerts users when replacement is necessary.

Features and Benefits:

•Leakage-current-free design.

•Surge protection included.

•Compact installation housing.

•Compliance with RoHS and REACH regulations.

•Optical function display for ease of use.

Specifications:

Depth	80 mm
Height	45 mm
Width	18 mm
Operating temperature	-40 °C...85 °C
Storage temperature	-40 °C...85 °C
Discharge current I max (8/20µs) wire-PE	65 kA
Discharge current I n (8/20µs) wire-PE	25 kA
Max. continuous voltage, Uc (AC)	275 V
Response time / fallback time	<100 ns
Short-circuit current rating I SCCR	50 kA
Protection degree	IP20 in installed state
Mains voltage	240 V
Frequency range, max.	60 Hz
Frequency range, min.	50 Hz
Number of poles	1
Voltage type	AC
Guarantee	5 years
Standards	IEC61643-11, EN61643-11, UL 1449
Lightning test current I imp (10/350 µs) (L-PE)	25 kA
Humidity	5 - 95% relative humidity
