2736430000 - VPU AC II Surge Protector 600V with Remote Contact

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

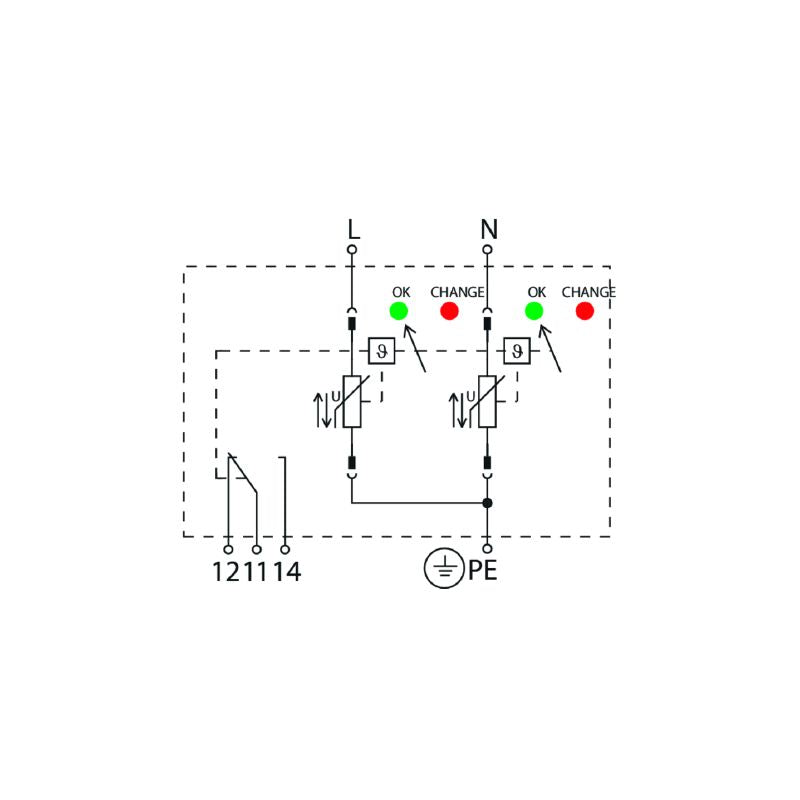

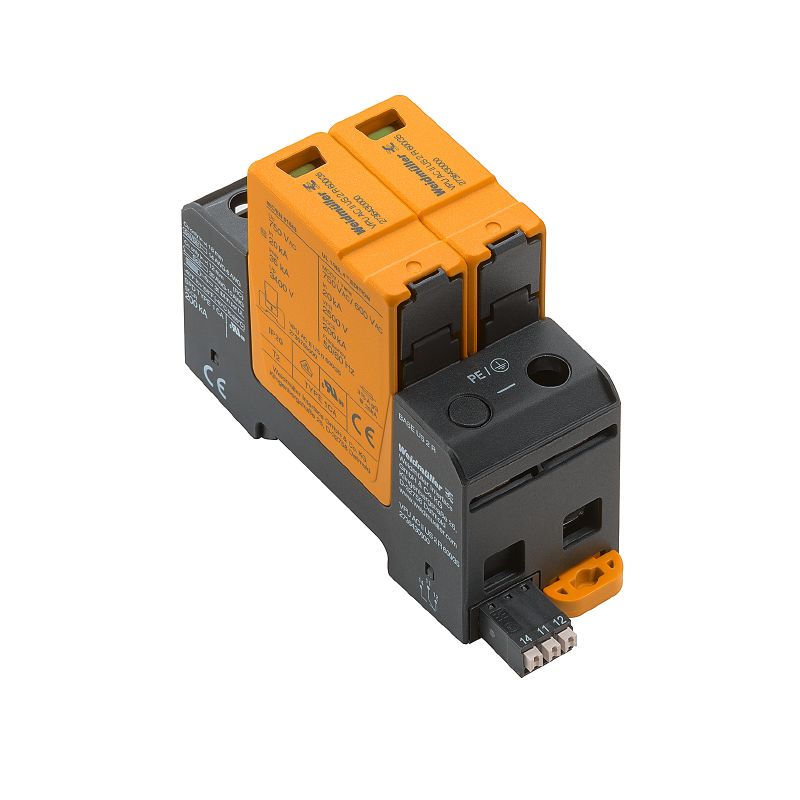

Introducing the VPU AC II US 2 R 600/35, an advanced surge protection device tailored for low voltage applications that features remote contact capability Specifically engineered for a single-phase TN-S setup, this unit is rated for a maximum voltage of 600V It has received certifications including ROHS and cULus, with the certificate number E354261 With compact dimensions of 68 mm in depth, 1045 mm in height, and 36 mm in width, this device is lightweight at 308 g.

It operates efficiently within a temperature range of -40 °C to 85 °C and offers humidity resilience from 5% to 95% Classified as SPD TYPE 1, it can manage surge currents up to 20 kA, making it a reliable choice for your surge protection needs.

Features and Benefits:

•Remote contact for alerting.

•Compact design with installation housing.

•Visual function display indicating operational status.

•Protection degree IP20 for installed state.

•Flexible wire connection methods using screw connections or push-in options.

•Use in power distribution systems.

•Protection in low voltage electrical installations.

Specifications:
