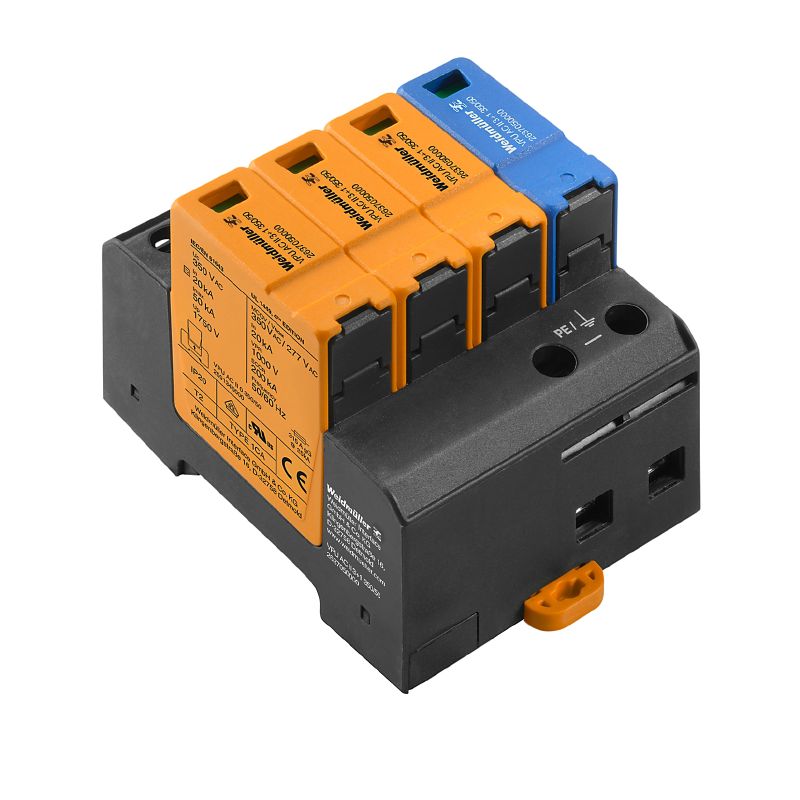

2637050000 - Surge Voltage Arrester, 68mm Depth, IP20 Protection

Description:

Introducing the VPU AC II 3+1 350/50 surge voltage arrester, expertly crafted for low voltage applications This device offers reliable surge protection across various power systems, including TN-C-S, TN-S, TT, and IT configurations It meets RoHS compliance and holds a UL certification under File Number E354261 With compact dimensions of 68 mm in depth, 90 mm in height, and 72 mm in width, this arrester weighs just 49 g.

It operates efficiently in extreme conditions, with a temperature tolerance from -40 °C to 85 °C and supports relative humidity levels between 5% and 95% The device can accommodate a maximum continuous operating voltage of 350 V, providing protection up to 1,000 V in specific configurations Rated at IP20 for protection when installed, this arrester ensures safety and reliability Designed for straightforward setup, it utilizes screw connections for easy installation.

Features and Benefits:

•Approvals for RoHS compliance.

•Designed for low-voltage networks.

•Can handle extreme temperatures from -40 °C to 85 °C.

•Availability in multiple colors: orange, black, blue.

•Suitable for various installation applications.

•Indicates operational status with green for OK and red for defective.

•Surge protection in power distribution systems.

•Compatibility with IT power systems.

Specifications:
