2755970000 - IP65 Over Voltage Protection Box for 1000V Inverters

2755970000 - IP65 Over Voltage Protection Box for 1000V Inverters

SKU: 2755970000 Download PDF

Variant:
  • 2755970000 - IP65 Over Voltage Protection Box for 1000V Inverters
Now $211.37
BEFORE   $0.00 Now $211.37
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

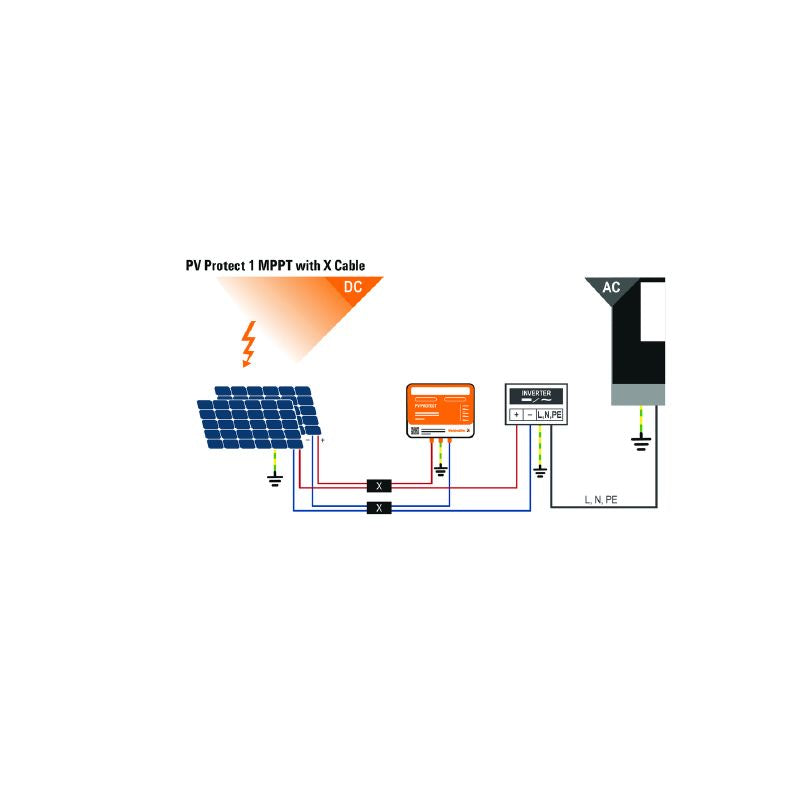

Protect your inverter with this specialized over voltage protection device, crafted for maximum safety on the DC side Featuring a single Maximum Power Point (MPP) tracker, this unit handles a maximum string voltage of 1000 V Equipped with type II surge protection, it seamlessly connects via cable glands accommodating cables with diameters ranging from 4-8 mm and a maximum cross-section of 16 mm² Constructed from durable plastic, the enclosure meets protection standards IP65 and IP67.

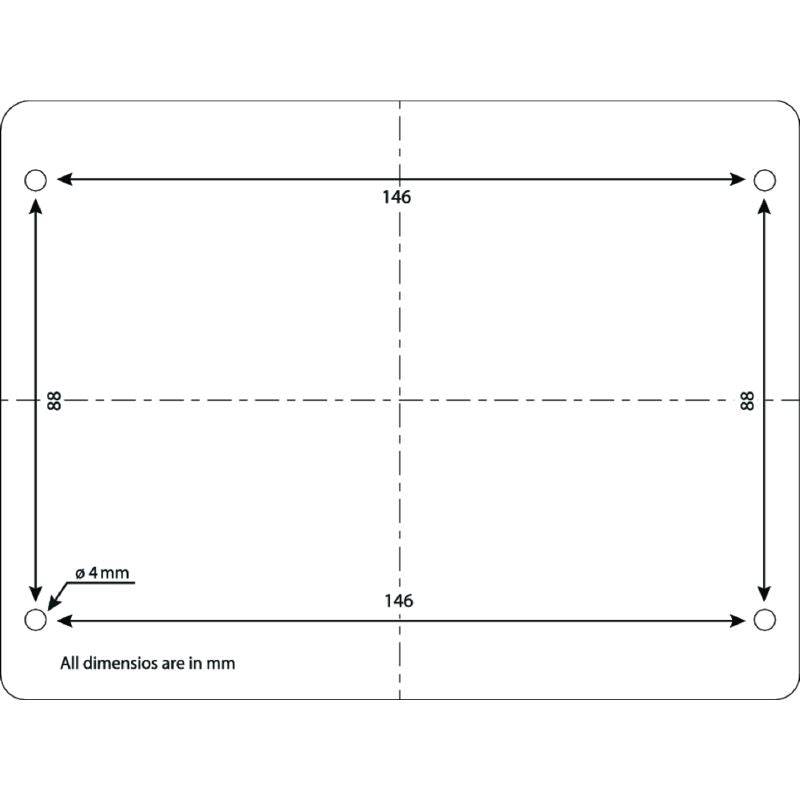

With compact dimensions of 168 mm in height, 145 mm in width, and 91 mm in depth, this device is a reliable addition to your inverter system.

Features and Benefits:

    •IP67 protection degree.

    •Surge protection for DC side.

    •Compliant with EN 50539-11 standards.

    •No replaceable SPD in the box.

    •Used to protect the DC side of inverters.

Specifications:

 Depth 91 mm
 Height 145 mm
 Width 168 mm
 Net weight 701 g
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…85 °C
 Operating temperature -40 °C...85 °C
 Humidity 5 - 95% relative humidity
 Protection level ≤4,2 kV
 Maximum continuous operating voltage DC UCPV mode +/- 1100 V
 Amount of maximum power points (MPP) 1 MPP
 Discharge current I n (8/20 µs) 20 kA
 Discharge current, max. (8/20 µs) 40 kA
 Lightning test current I imp (10/350 µs) 6.25 kA
 Operating height in the grounded PV system ≤ 4000 m
 Operating height in ungrounded PV system ≤ 4000 m
 Classifications {'ETIM 7.0': 'EC001457', 'ECLASS 12.0': '27-17-14-03'}
