8951510000 - Surge Protector for 24V Systems, IP20, -40°C to 70°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Protect your instrumentation and control systems with this specialized surge protector Designed for enhanced performance, it operates at a maximum voltage level of 08 kV and stays compliant with RoHS standards With an IP20 environmental rating, this device is suitable for various applications It functions smoothly within a temperature range of -40 °C to 70 °C and can be safely stored in temperatures between -40 °C and 80 °C.

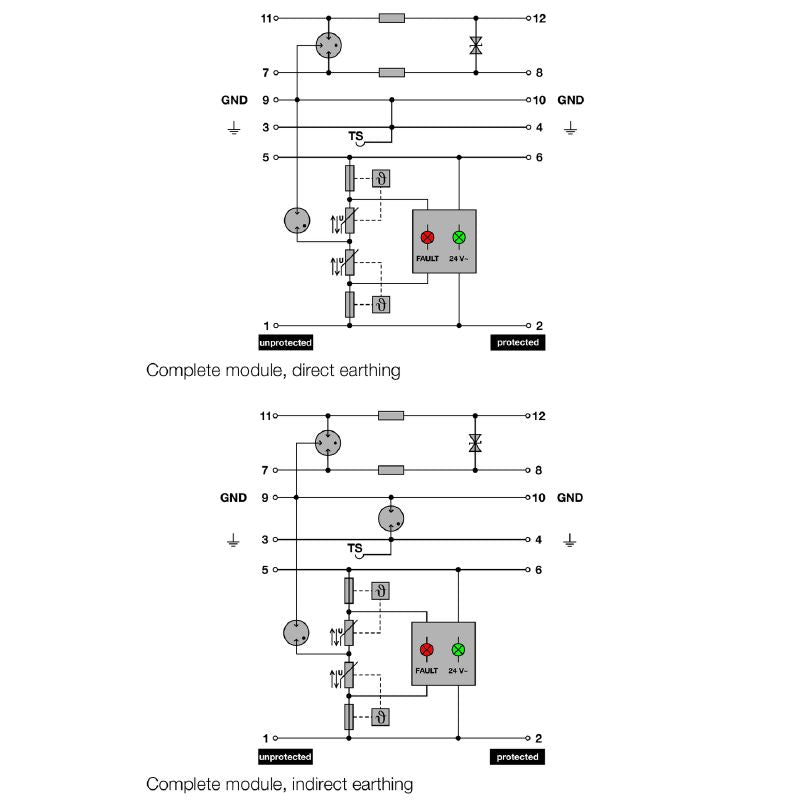

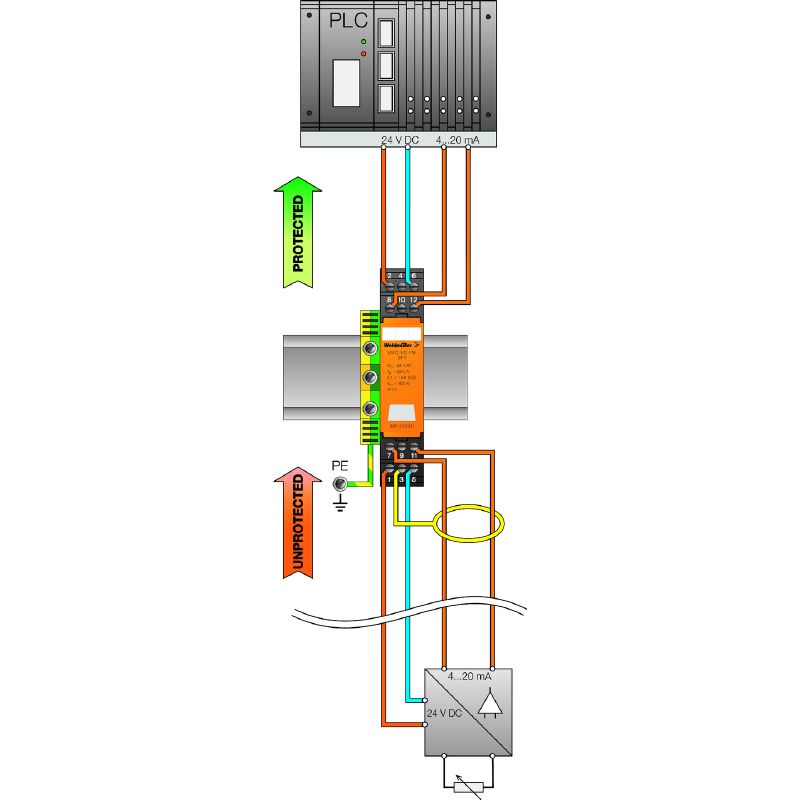

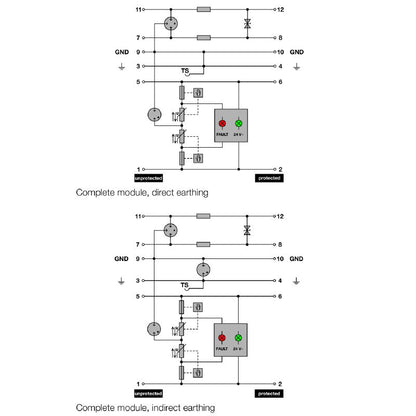

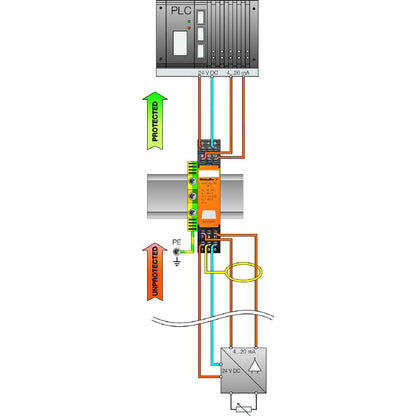

Additionally, it features dual protective circuits tailored for a 24 V power supply and is equipped with a paired cable for floating-ground powered signal circuits, ensuring reliable operation in demanding environments.

Features and Benefits:

•Compact dimensions with a depth of 69 mm, height of 90 mm, and width of 17.8 mm.

•A total weight of 50 grams allows for easy installation.

•Compliance with IEC 61508 ensuring a SIL probability of failure.

•Color-coded function display indicating operational status.

•Equipped with a fail-safe mechanism.

•Optical defect signaling associated with temperature monitoring.

•Designed for use in voltage-limiting surge protection applications.
