8924740000 - 4-Channel Plug Base with Grounding Protection

Description:

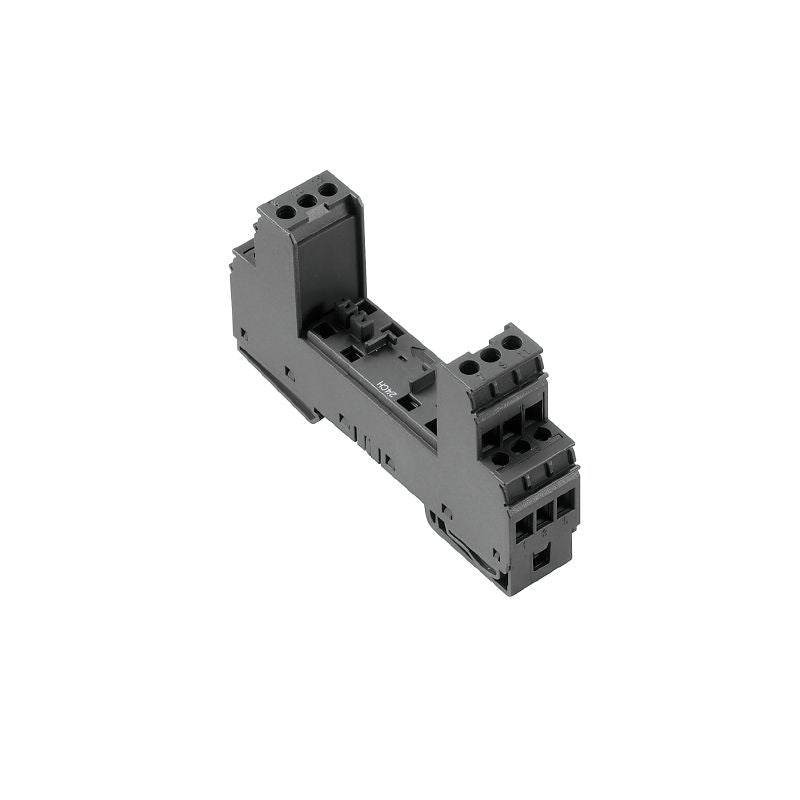

Introducing the VSPC BASE 2/4CH, an efficient solution for managing up to four floating-ground powered cables with a protected plug This base unit ensures a secure electrical connection between the mounting rail, which serves as the earth, and the reference ground from the protection circuit within the plug Designed for optimal alignment, it facilitates mechanical coding that corresponds to the switching type and voltage rating.

Furthermore, the system incorporates coding via the initial connection of the protected plug, and offers customizable labels for all terminals, enhancing usability and organization.

Features and Benefits:

•Surge protection integrated.

•Flange-mounted housing design.

•IP20 protection degree.

•RoHS compliant with exemptions.

•Suitable for various cable sizes and types.

•Measurement - Monitoring - Setting.

Specifications:
