2591660000 - Low Voltage Surge Arrester for TN Systems, Temp Range -40°C to 85°C

2591660000 - Low Voltage Surge Arrester for TN Systems, Temp Range -40°C to 85°C

SKU: 2591660000 Download PDF

Variant:
  • 2591660000 - Low Voltage Surge Arrester for TN Systems, Temp Range -40°C to 85°C
Now $83.68
BEFORE   $0.00 Now $83.68
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

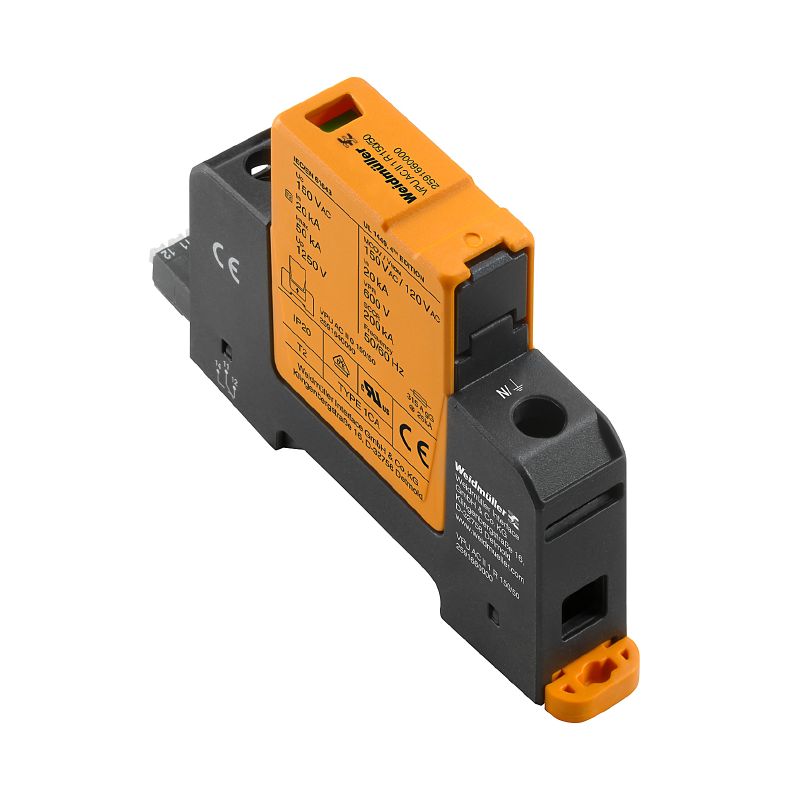

Introducing the VPU AC II 1 R 150/50, a reliable low voltage surge arrester specifically designed for single-phase TN systems, featuring a convenient remote contact This device meets RoHS standards and carries UL certification number E3542610000 It operates efficiently across a temperature range of -40 °C to 85 °C and is resilient in humidity levels between 5% and 95% Built for seamless integration into power distribution setups, its mounting rail design makes installation straightforward.

The optical function display allows for easy monitoring of operational status, while its IP20 rating provides essential protection once installed.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Includes an optical function display showing operational status.

    •Designed for power distribution applications.

    •Features a compact installation housing.

    •Surge protection for low voltage electrical systems.

Specifications:

 Depth 68 mm
 Height 104.5 mm
 Width 18 mm
 Rated Voltage U N 120 V
 Max. continuous voltage, Uc (AC) 150 V
 Number of poles 1
 Protection level U p at I N ≤ 1.25 kV
 Response time / fallback time ≤ 25 ns
 Operating altitude ≤ 4000 m
 Protection degree IP20 in installed state
 Rated data UL {'Ambient temperature (operational), max.': '85 °C', 'Ambient temperature (operational), min.': '-40 °C'}
 Connection type PUSH IN
 Rated data IEC / EN {'Combined pulse U OC': '6 kV', 'Discharge current I max (8/20µs) wire-PE': '50 kA'}
