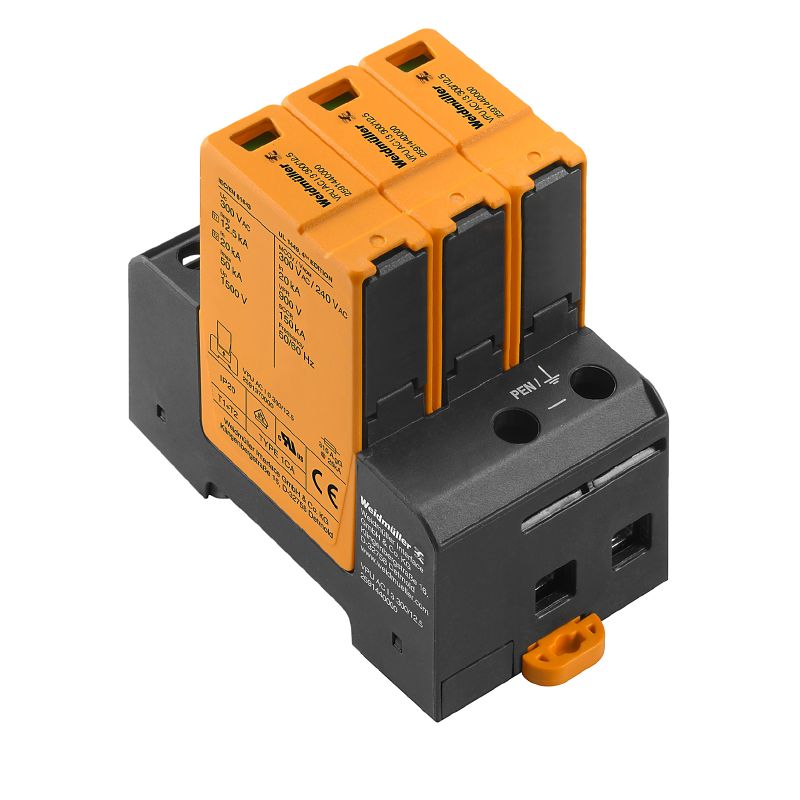

2591440000 - UL Certified 3-Pole Surge Arrester for Low Voltage Protection

2591440000 - UL Certified 3-Pole Surge Arrester for Low Voltage Protection

SKU: 2591440000 Download PDF

Variant:
  • 2591440000 - UL Certified 3-Pole Surge Arrester for Low Voltage Protection
Now $335.93
BEFORE   $0.00 Now $335.93
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

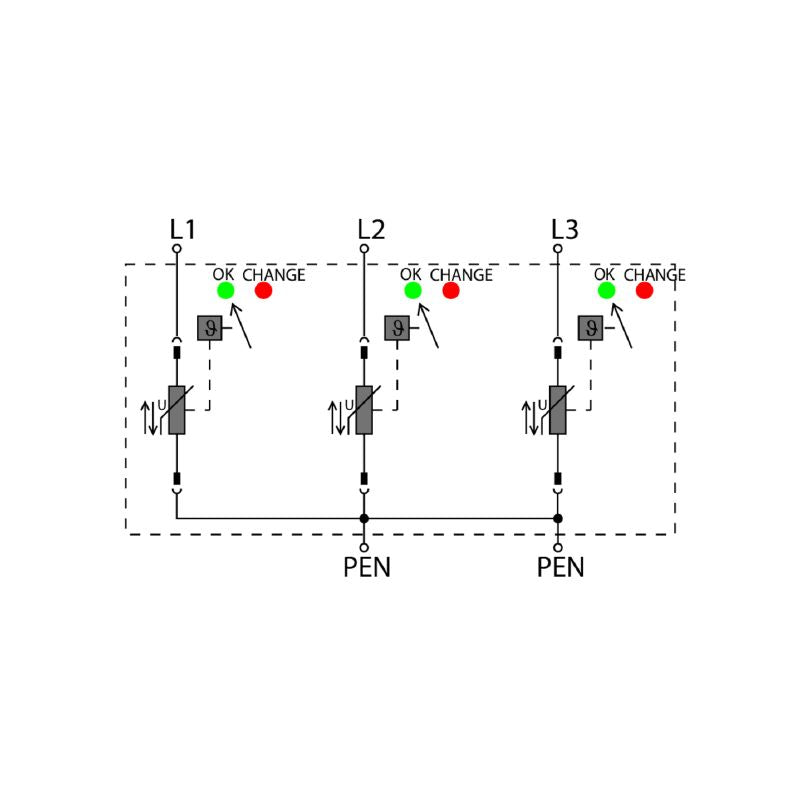

Introducing the VPU AC I 3 300/125 surge voltage arrester, expertly crafted for low voltage surge protection within TN-C systems This UL certified device adheres to RoHS standards, reflecting its commitment to environmental safety It's engineered to operate effectively in temperatures ranging from -40 °C to 85 °C and performs well in humidity levels between 5% and 95% Capable of accommodating nominal voltages up to 240 V, it provides a maximum voltage protection level of 1.

5 kV Its three-pole configuration is conveniently housed for straightforward installation on a TS 35 rail Additionally, the arrester includes a visual function display that uses green and red indicators to communicate operational status clearly.

Features and Benefits:

    •RoHS compliant without exemption.

    •Visual function display to indicate operational status.

    •Designed for easy mounting on standard rail.

    •Operational temperature range of -40 °C to 85 °C.

    •Protection degree IP20 in installed state.

    •Surge protection for power distribution.

Specifications:

 Depth 91 mm
 Height 96.3 mm
 Width 54 mm
 Operating altitude ≤ 4000 m
 Rated Voltage U 240 V
 MCOV (L-PE) 300 V
 SCCR 150 kA
 In 20 kA
 Protection level Up at In (L/N-PE) ≤ 1.5 kV
 Discharge current Imax (8/20µs) wire-PE 50 kA
 Follow-on current extinguishing capability Ifi Not available due for technical reasons
 Leakage current at Un 0.6 mA
 Lightning test current Iimp (10/350 µs) (L-PE) 12.5 kA
 Number of poles 3
 Rated voltage (AC) 230 V
 Response time / fallback time ≤ 25 ns
 Frequency range, max 60 Hz
 Frequency range, min 50 Hz
 Stripping length 18 mm
 Tightening torque, min 2 Nm
 Tightening torque, max 4.5 Nm
 Clamping range, rated connection 16 mm²
 Clamping range, min 4 mm²
 Clamping range, max 35 mm²
