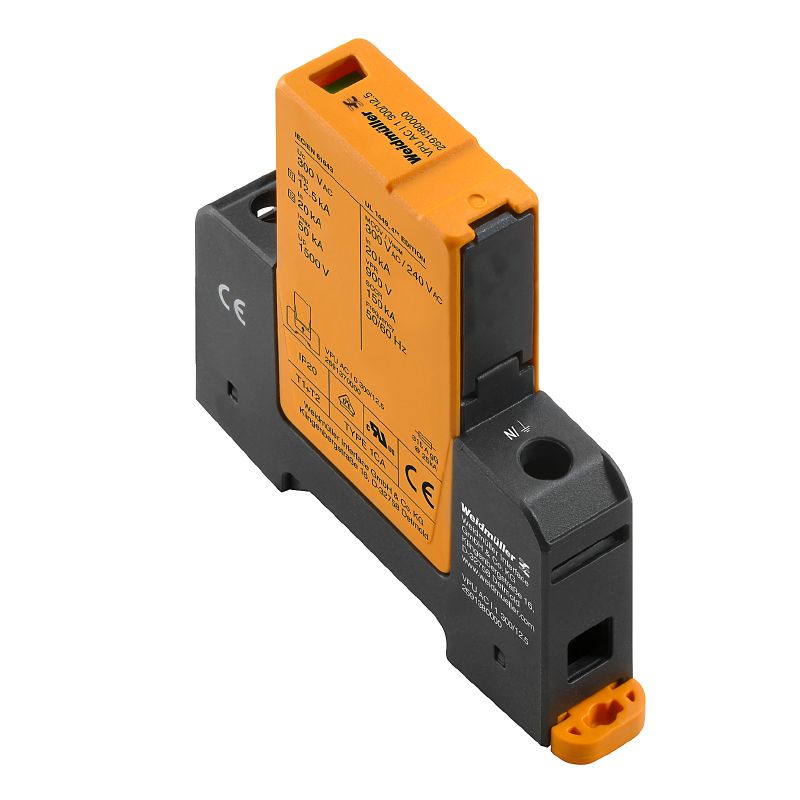

2591380000 - Surge Voltage Arrester for Low Voltage, 91mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC I 1 300/125 surge voltage arrester, expertly crafted for low voltage applications in single-phase settings This device ensures reliable surge protection while meeting essential standards, including RoHS compliance With dimensions of 91 mm deep, 963 mm high, and 18 mm wide, it is compact and easy to integrate into your system, weighing just 174 g It performs effectively in a temperature range from -40 °C to 85 °C and can operate in humid environments with relative humidity levels between 5% and 95%.

The arrester supports a maximum rated voltage of 240 V and a continuous voltage of up to 300 V, with a robust discharge current capacity of 20 kA, making it a reliable choice for safeguarding your electrical equipment.

Features and Benefits:

•Compliant with RoHS without exemption.

•Installation housing designed for TS 35 mounting rail.

•Optical function display indicating surge protector status.

•Rated data includes a short-circuit current rating of 50 kA.

•Protection degree IP20 when installed.

•Power distribution systems.

Specifications:
