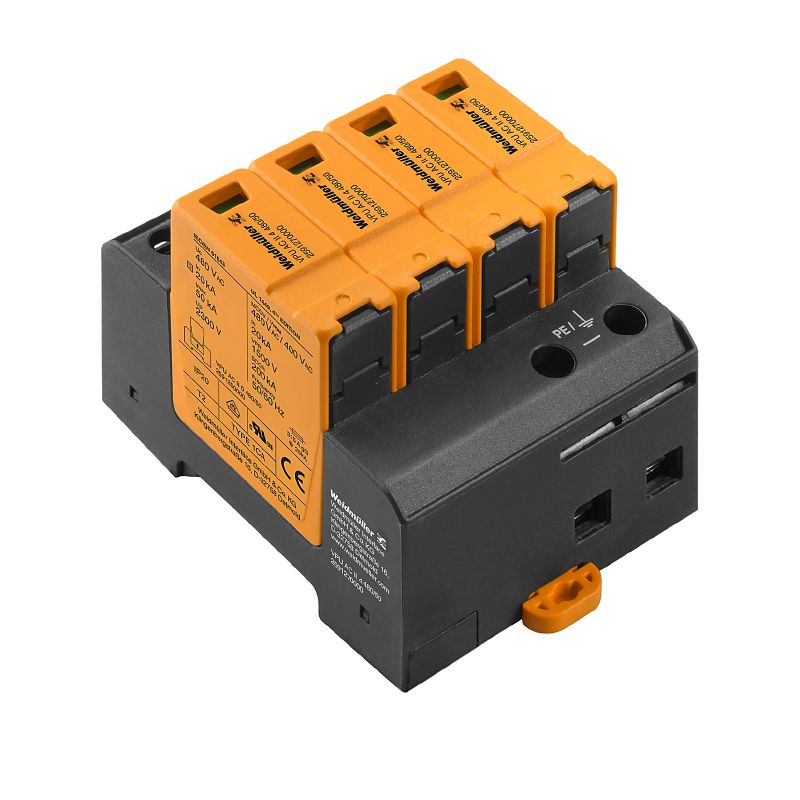

2591270000 - Durable Surge Protector for Low Voltage Systems, UL Approved

2591270000 - Durable Surge Protector for Low Voltage Systems, UL Approved

SKU: SKU: 2591270000 Download PDF

Variant:
  • 2591270000 - Durable Surge Protector for Low Voltage Systems, UL Approved
Regular price Now $260.39
Regular price BEFORE   $0.00 Sale price Now $260.39
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC II 4 480/50, your go-to solution for low voltage surge protection in TN-C-S and TN-S power distribution systems This device not only meets the stringent RoHS standards but also carries UL certifications, with the certificate number E354261 Built to withstand various operational conditions, it guarantees both reliability and durability in safeguarding your electrical infrastructure.

Features and Benefits:

    •Helps in protecting electrical equipment from voltage surges.

    •Compliant with RoHS standards.

    •Designed for use in TN-C-S and TN-S power systems.

    •Suitable for mounting on standard TS 35 rails.

    •Designed with visual indicators for operational status.

    •Surge protection in power distribution systems.

Specifications:

 Depth 68 mm
 Height 90 mm
 Width 72 mm
 Net weight 504 g
 Operating temperature -40 °C...85 °C
 Rated Voltage U 400 V
 Protection degree IP20
 Surge voltage category III
 Number of poles 4
 Clamping range (rated connection) 16 mm²
 Response time / fallback time ≤ 25 ns
 Frequency range, max 60 Hz
 Frequency range, min 50 Hz
 Mode all modes
