2591190000 - Surge Protector for TT Systems, 64mm Deep, UL Certified

2591190000 - Surge Protector for TT Systems, 64mm Deep, UL Certified

SKU: 2591190000 Download PDF

Variant:
  • 2591190000 - Surge Protector for TT Systems, 64mm Deep, UL Certified
Now $57.01
BEFORE   $0.00 Now $57.01
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

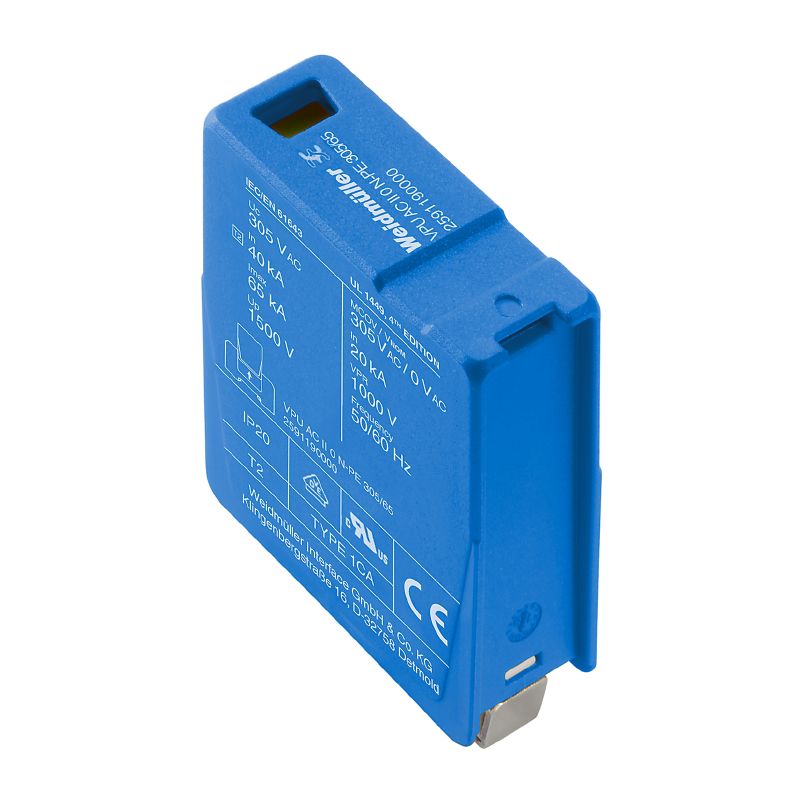

Ensure your electrical systems are safeguarded with this efficient spare arrester, designed specifically for TT systems connecting N-PE This unit is RoHS compliant and holds a UL certification for your peace of mind Measuring 64 mm deep, 45 mm high, and 18 mm wide, it has a compact design and weighs only 42 g It functions optimally within a temperature range of -40 °C to 85 °C and is capable of operating in environments with 5 to 95% relative humidity.

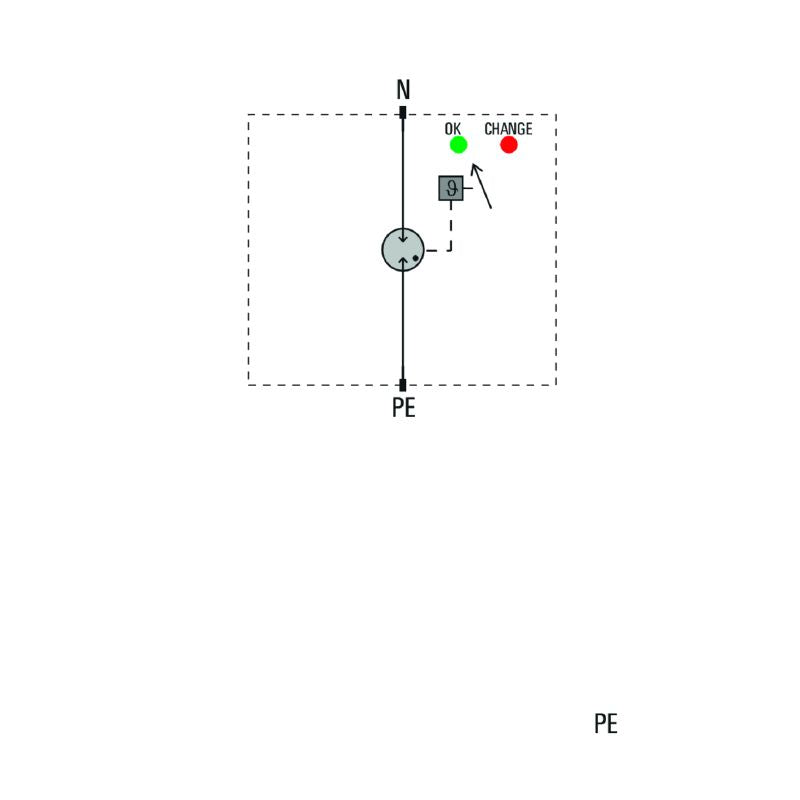

The arrester also features a convenient optical function display, where a green light indicates normal operation, while a red light signals when a replacement is needed.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •UL certified under file number E3542610000.

    •Installation housing designed for 1TE.

    •Protection degree of IP20 in installed state.

    •UL 94 flammability rating V-0.

    •Optical function display for operational status.

    •Surge protection devices for power distribution systems.

Specifications:

 Depth 64 mm
 Height 45 mm
 Width 18 mm
 Operating temperature range -40 °C to 85 °C
 Storage temperature -40 °C to 85 °C
 Humidity 5 - 95% relative humidity
 Rated Voltage U N 240 V
 VPR (N-PE) 1,000 V
 MCOV (N-PE) 305 V
 Discharge current (type III) 3 kA
 Discharge current I max (8/20µs) N-PE 65 kA
 Discharge current I n (8/20µs) N-PE 40 kA
 Max. continuous voltage, Uc (N-PE) 305 V
 Rated voltage (AC) 230 V
 Number of poles 1
 Response time ≤ 100 ns
 Protection level U p at I N (N-PE) ≤ 1.5 kV
 Connection type Plug-in connection
