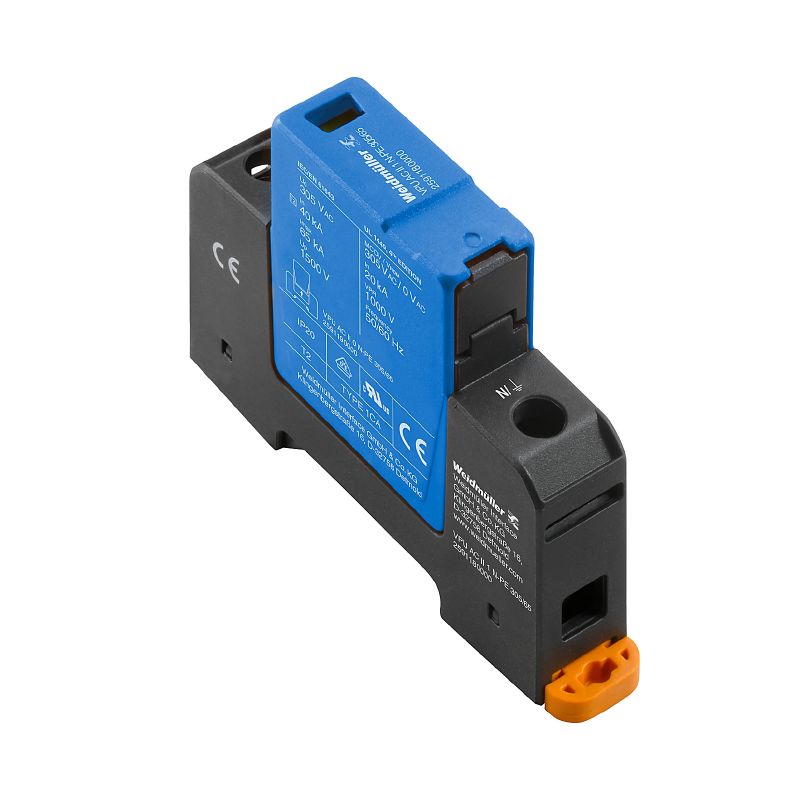

2591180000 - 240V Surge Arrester for N-PE, -40°C to 85°C

SKU: SKU: 2591180000 Download PDF

Select a Variant:

2591180000 - 240V Surge Arrester for N-PE, -40°C to 85°C

SET THE QTY:

Now $66.37 Web pricing policy

~~BEFORE $0.00~~ Now $66.37 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Protect your electrical systems with this low voltage surge voltage arrester, tailored for single-phase surge protection in TN and TT configurations, specifically designed for N-PE applications This reliable device adheres to RoHS regulations and boasts a product number of 2591180000 It functions optimally at a rated voltage of 240V for N and can handle a maximum continuous voltage of 305V for N-PE.

Engineered to withstand ambient temperatures ranging from -40 °C to 85 °C, it ensures robust performance in various environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•IP20 protection degree in installed state.

•Optical function display indicating status (green for OK, red for defective).

•Installation housing designed for TS 35 mountings.

•Operable at elevations up to 4000 m.

•Rated at 20 kA discharge current.

•Low voltage power distribution systems.

Specifications:

Depth	68 mm
Height	90 mm
Width	18 mm
Rated Voltage U	240 V
Max. continuous voltage, Uc (N-PE)	305 V
Electrical connection method	Screw connection
Clamping range, rated connection	16 mm²
Response time / fallback time	≤ 100 ns
Surge voltage category	III
Discharge current I max (8/20µs) N-PE	65 kA
Operating temperature	-40 °C...85 °C
Storage temperature	-40 °C...85 °C
Protection level U p at I N (N-PE)	≤ 1.5 kV
Ambient temperature (operational), max.	85 °C
Ambient temperature (operational), min.	-40 °C
Fuse protection	Not required
