2591010000 - Compact Surge Protector, -40°C to 85°C, 64mm Deep

2591010000 - Compact Surge Protector, -40°C to 85°C, 64mm Deep

SKU: 2591010000 Download PDF

Variant:
  • 2591010000 - Compact Surge Protector, -40°C to 85°C, 64mm Deep
Now $56.84
BEFORE   $0.00 Now $56.84
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

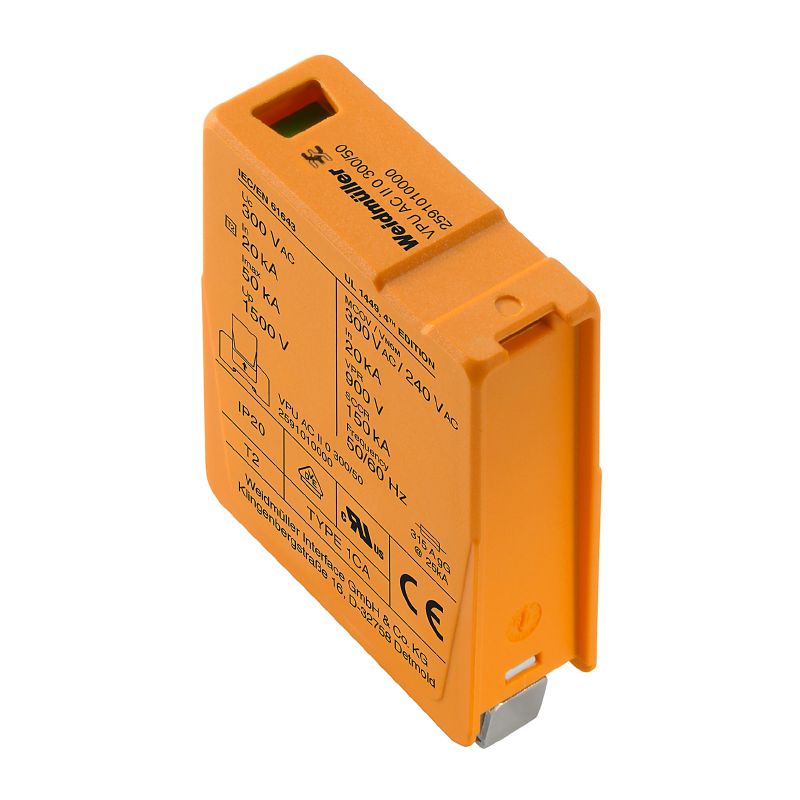

Ensure your electrical systems are safeguarded with the VPU AC II 0 300/50 surge protection device This robust unit is designed to shield against voltage surges and adheres to RoHS regulations, holding a UL approval under File Number E3542610000 It operates reliably in a wide temperature range, functioning optimally in environments from -40 °C to 85 °C With compact dimensions of 64 mm in depth, 45 mm in height, and 18 mm in width, it’s a lightweight solution at just 59 grams, making it an essential addition to any power distribution setup.

Features and Benefits:

    •Protection level IP20 when installed.

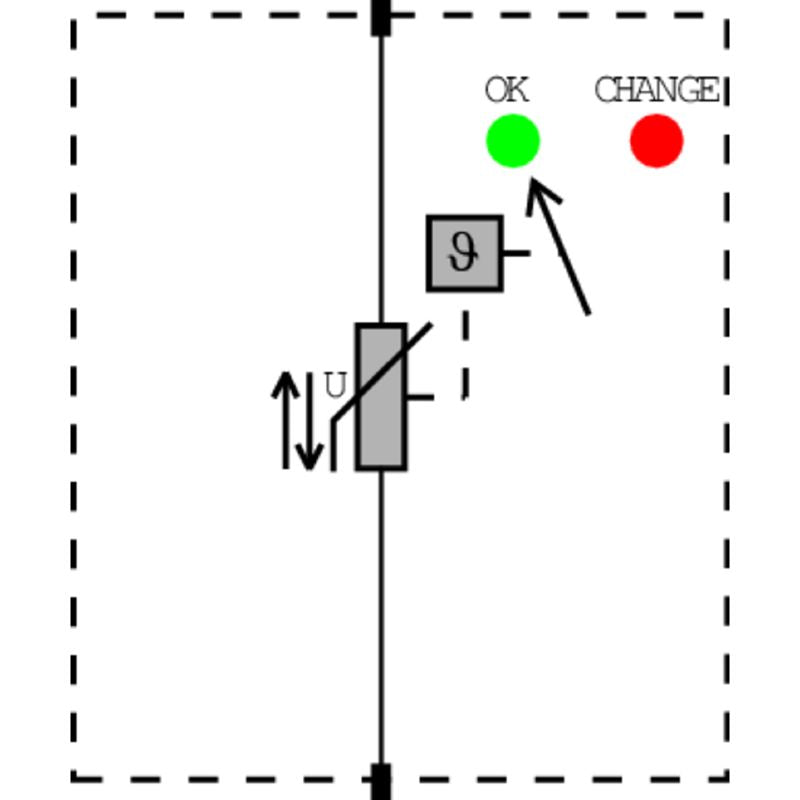

    •Integrated optical function display with green for operational status and red for replacement needs.

    •Compliant with IEC 61643-11 and EN 61643-11 standards.

    •Rated for outdoor use up to 2000 m in altitude.

    •Provides a reliable surge protection category of SPD TYPE 1CA.

    •Power distribution systems.

Specifications:

 Depth 64 mm
 Height 45 mm
 Width 18 mm
 Storage temperature -40 °C...85 °C
 Operating temperature -40 °C...85 °C
 Rated Voltage U 240 V
 VPR (L/N-PE) 900 V
 MCOV (L/N-PE) 300 V
 SCCR 150 kA
 I_n 20 kA
 Colour orange
 Ambient temperature (operational), max. 85 °C
 Ambient temperature (operational), min. -40 °C
 Type of connection Plug-in connection
 Frequency range, max. 60 Hz
 Frequency range, min. 50 Hz
 Energy coordination (≤10 m) Type II, Type III
 Discharge current (type III) 3 kA
 Discharge current I_max (8/20µs) wire-PE 50 kA
 Max. continuous voltage, Uc (AC) 300 V
 Number of poles 1
 Requirements category acc. to IEC 61643-11 Type II, Type III
 Requirements class, acc. to EN 61643-11 T2, T3
 Response time / fallback time ≤ 25 ns
 Protection degree IP20 in installed state
 UL 94 flammability rating V-0
