2530630000 - Surge Voltage Arrester 57.2mm, UL Certified for Low Voltage (Pack of 9)

2530630000 - Surge Voltage Arrester 57.2mm, UL Certified for Low Voltage (Pack of 9)

SKU: 2530630000   Download PDF

Select a Variant:
  • 2530630000 - Surge Voltage Arrester 57.2mm, UL Certified for Low Voltage (Pack of 9)
Qty:
Now $546.15   Web pricing policy
BEFORE   $0.00 Now $546.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VPU PV II 0 1500, a reliable surge voltage arrester specifically designed for low voltage applications, ideal as an accessory or replacement part This device meets ROHS compliance and boasts a UL cURus Certificate No E3542610000, ensuring safety and quality With compact dimensions of 572 mm in depth, 45 mm in height, and 18 mm in width, it has a lightweight design at just 9222 grams.

The operational temperature range spans from -40 °C to 85 °C, and it performs efficiently in humidity levels between 5% and 95% This arrester has a maximum ambient temperature rating of 85 °C, a nominal voltage of 750 V, and a remarkable surge current capacity of 65 kA Additionally, it meets an insulation coordination pollution severity level of 2 and is rated IP20 for protection Installation is a breeze with its compatibility for 1TE setups on a TS 35 mounting rail, making the VPU PV II 0 1500 an excellent choice for those seeking dependable surge protection.

Features and Benefits:

    •Compliant with ROHS without exemption.

    •Integrated design ensures straightforward installation.

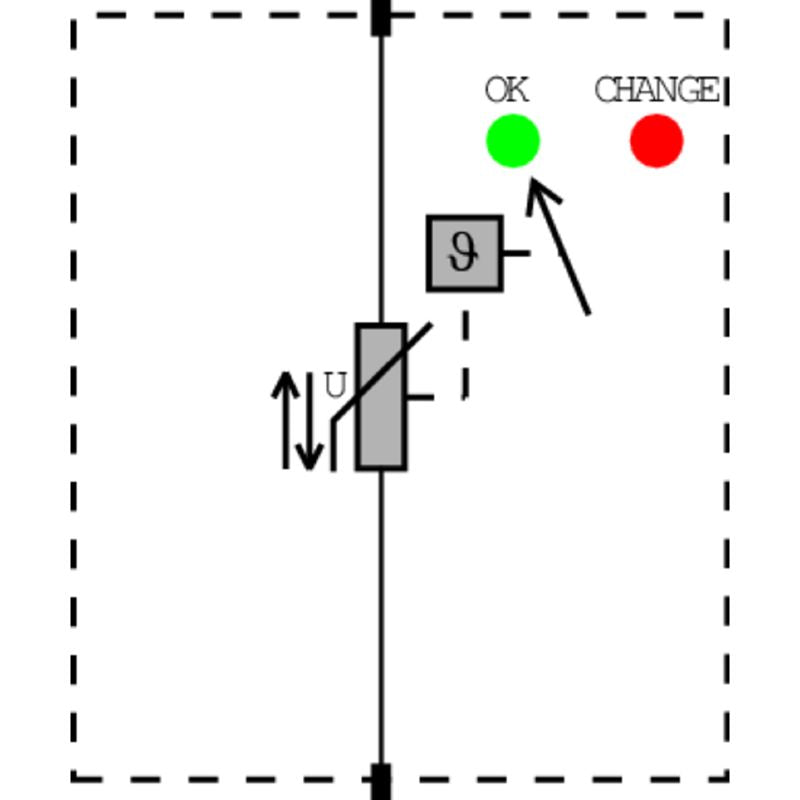

    •Visual status indication with green for operational status and red for replacement requirement.

Specifications:

 Depth 57.2 mm
 Height 45 mm
 Width 18 mm
 Storage temperature 85 °C
 Operating temperature -40 °C...85 °C
 Rated Voltage U N 750 V
 SCCR 65 kA
 I n 20 kA
 Ambient temperature (operational), max. 85 °C
 Ambient temperature (operational), min. -40 °C
 VPR ( DC+/DC-) 4,000 V
 Protection level U p (+/- , -/PE , +/PE) ≤ 5,0 kV
 PV system voltage, max. U cpv 1,500 V
 Category SPD TYPE 1CA
 Number of poles 1
 Response time / fallback time ≤ 25 ns
 Type of connection pluggable
 Wire connection cross section, finely stranded, min. 1.5 mm²
 Wire connection cross section, finely stranded, max. 25 mm²
 Protection degree IP20
 UL 94 flammability rating V-0
 Leakage current at U n 30 µA
 Surge voltage category III
 Discharge current I n (8/20 µs) 20 kA
 Total discharge current I total ( 8/20µs) 40 kA
 Standards EN 61643-31, EN 50539-11, UL 1449
