2530550000 - UL Certified Voltage Surge Protector, 70mm Depth, 20kA Surge Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

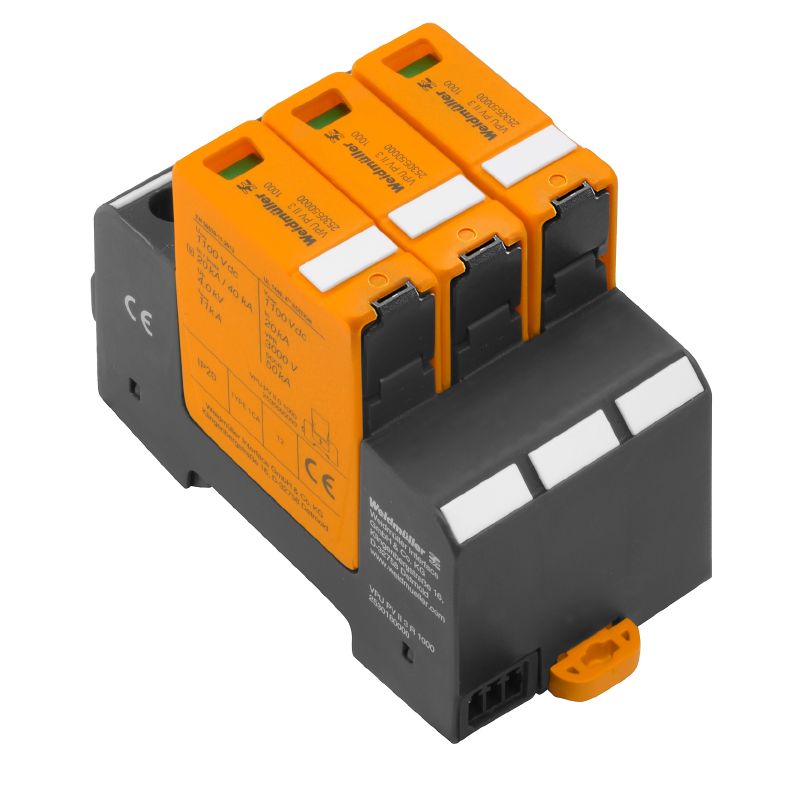

Introducing the VPU PV II 3 1000, an effective voltage surge protector tailored for low-voltage applications This UL certified unit, with certificate number E354261, guarantees compliance with ROHS standards without any exemptions Compact in size, it measures 70 mm in depth, 96 mm in height, and 54 mm in width, weighing just 386 g Built to withstand a broad temperature range from -40 °C to 85 °C, this surge protector adeptly handles surge currents up to 20 kA, with a maximum rated voltage of 1100 V.

It is suitable for operation at altitudes reaching 4000 m, making it versatile for various environments Designed for installation within housing, it boasts an IP20 protection degree Additionally, an optical function display is included to easily indicate proper functionality or any defects, ensuring peace of mind during operation.

Features and Benefits:

•RoHS Compliant.

•Optimal performance in temperatures ranging from -40 °C to 85 °C.

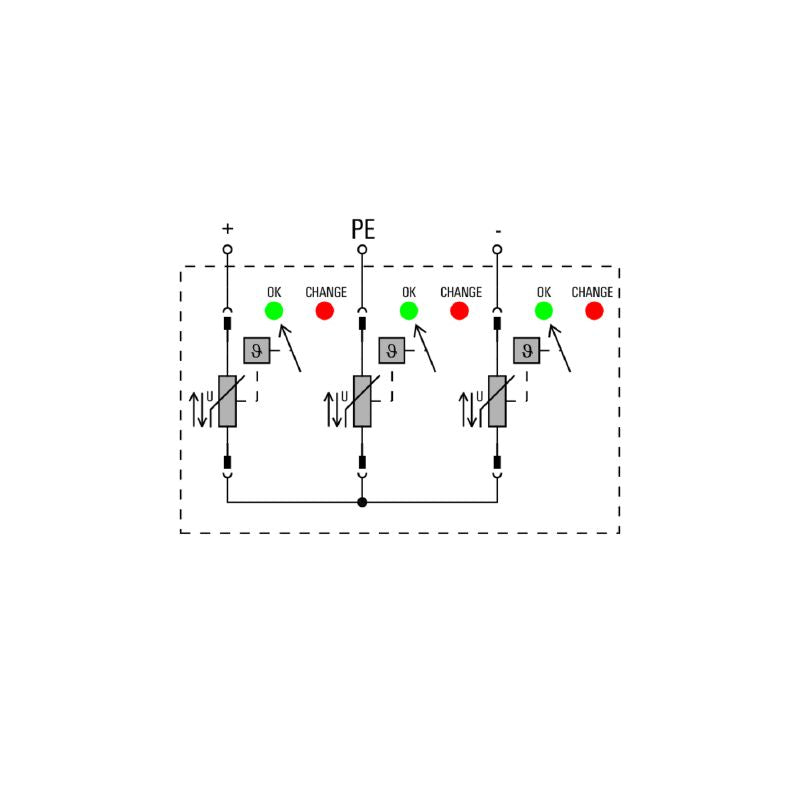

•Visual indicator for operational status.

•Rated current of 20 kA.

•Can operate at high altitudes up to 4000 m.

Specifications:
