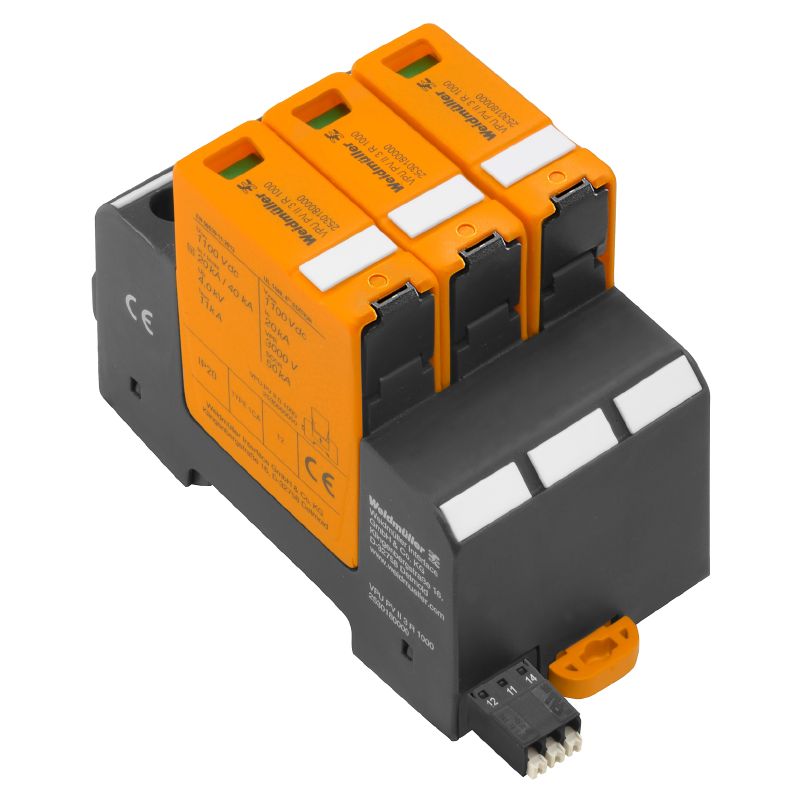

2530180000 - Low Voltage Surge Arrester for Rail TS 35, -40°C to 85°C

SKU: SKU: 2530180000 Download PDF

Select a Variant:

2530180000 - Low Voltage Surge Arrester for Rail TS 35, -40°C to 85°C

SET THE QTY:

Now $110.17 Web pricing policy

~~BEFORE $0.00~~ Now $110.17 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure long-lasting protection with the VPU PV II 3 R 1000 low voltage surge arrester, expertly designed for remote contact applications This model adheres to RoHS guidelines and carries the necessary UL certifications for safety and reliability With compact dimensions of 70mm in depth, 102mm in height, and 54mm in width, it's compatible with TS 35 rail mounting, making it easy to install Its impressive operating temperature range of -40°C to 85°C allows it to perform effectively in diverse environments.

Approved by multiple standards, this unit promises dependable performance you can trust.

Features and Benefits:

•Compliant with RoHS standards.

•Remote contact functionality.

•Installation housing with IP20 protection degree.

•Visual signals for operational status.

•Designed for photovoltaic systems.

•Low installation height requirements.

•Used in photovoltaic systems for protection against surge voltages.

Specifications:

Depth	70 mm
Height	102 mm
Width	54 mm
Operating temperature (max)	85 °C
Operating temperature (min)	-40 °C
Rated Voltage U N	1,100 V
SCCR	50 kA
I n	20 kA
Protection degree	IP20
Discharge current I n (8/20 µs)	20 kA
Surge voltage category	III
Total discharge current I total (8/20µs)	50 kA
Number of poles	3
Rated voltage (DC)	1,000 V
Response time / fallback time	≤ 25 ns
