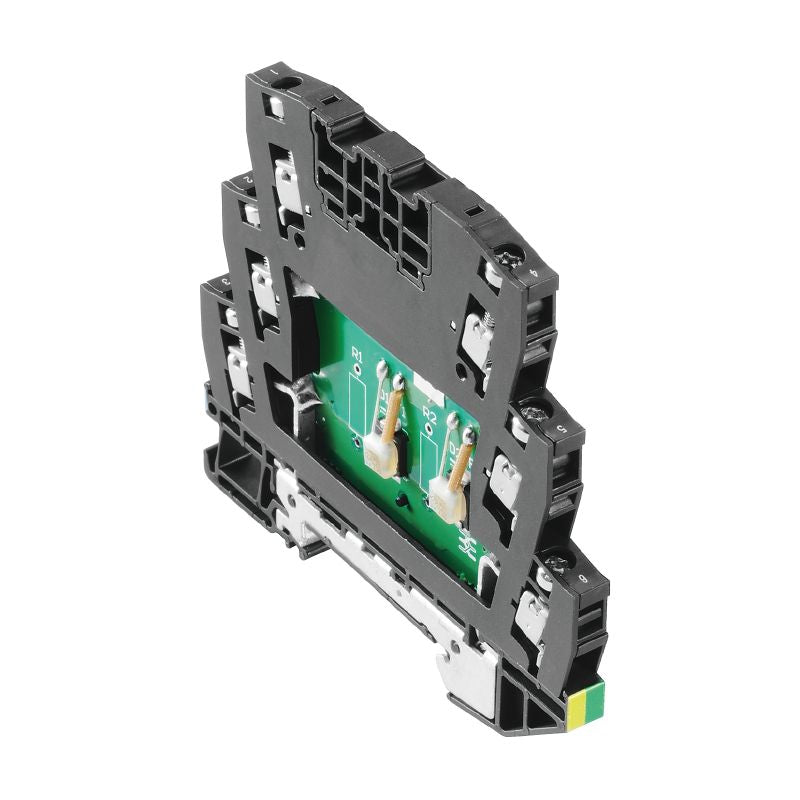

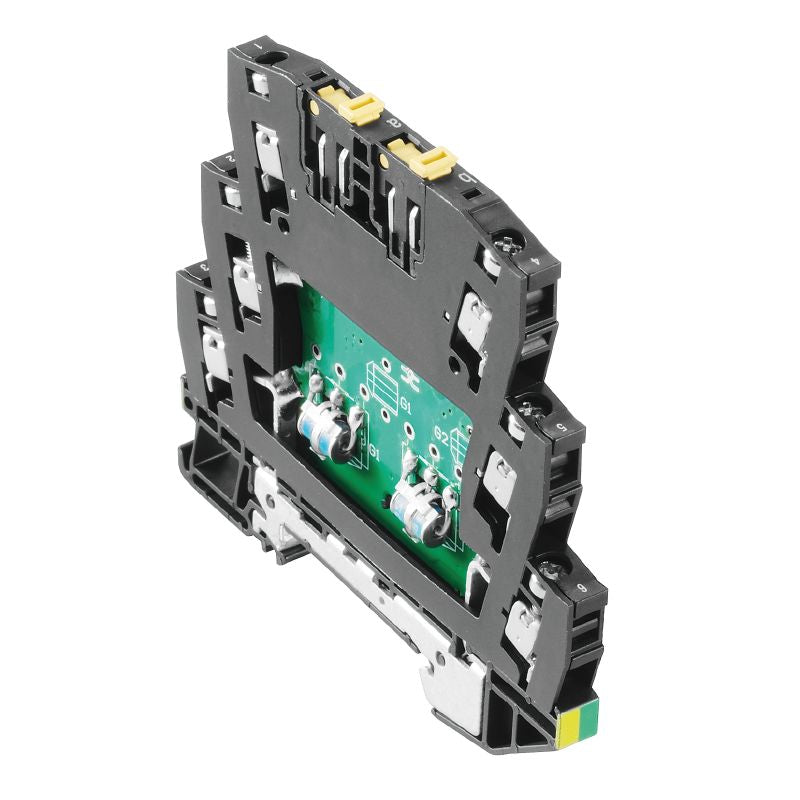

1064730000 - Compact 12A Surge Protection Terminal for TS 35 Rail (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing an innovative feed-through terminal, expertly crafted for surge protection in instrumentation, measurement, and control systems This compact device measures 81 mm in depth, 885 mm in height, and just 62 mm in width, making it easy to integrate into your equipment Weighing only 412 grams, it offers an impressive protection level of under 50 V Designed for extreme conditions, this terminal operates efficiently within a temperature range of -40 °C to 70 °C.

With a maximum input voltage of 15 V and a robust current capacity of 12 A, it ensures reliable performance Additionally, this product complies with RoHS standards and is compatible with TS 35 rail systems for seamless mounting.

Features and Benefits:

•RoHS compliant.

•Compact design allows for space-saving installation.

•Capable of handling surge currents up to 1 kA.

•Features an IP20 protection degree.

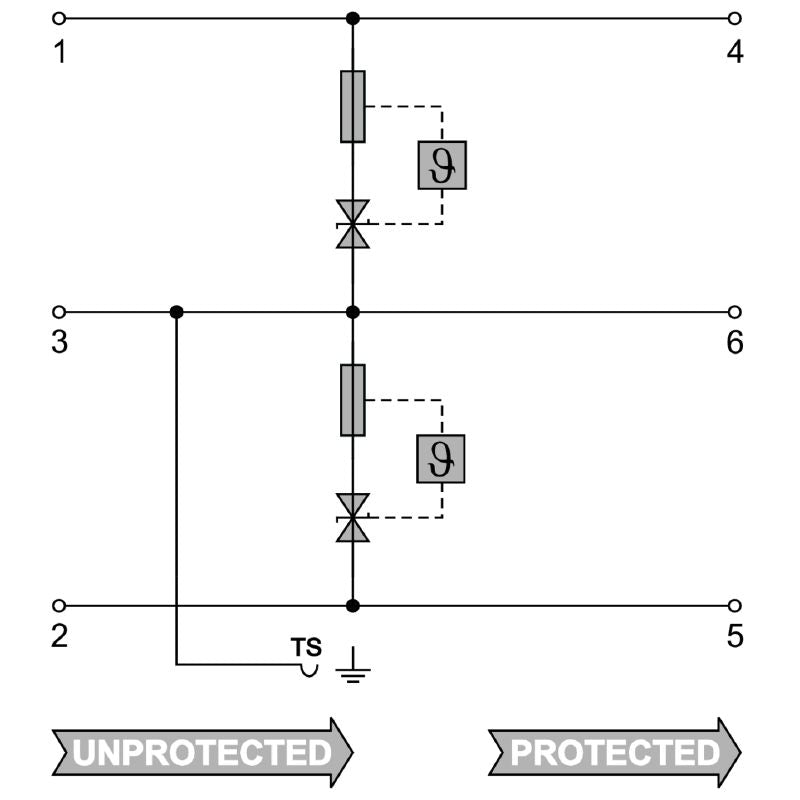

•Dual signal line suppression with diodes.

•Used for surge protection in measurement and control circuits.

Specifications:
