1064340000 - Surge Protection Module 15V, 81mm Depth, Strong Shielding (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

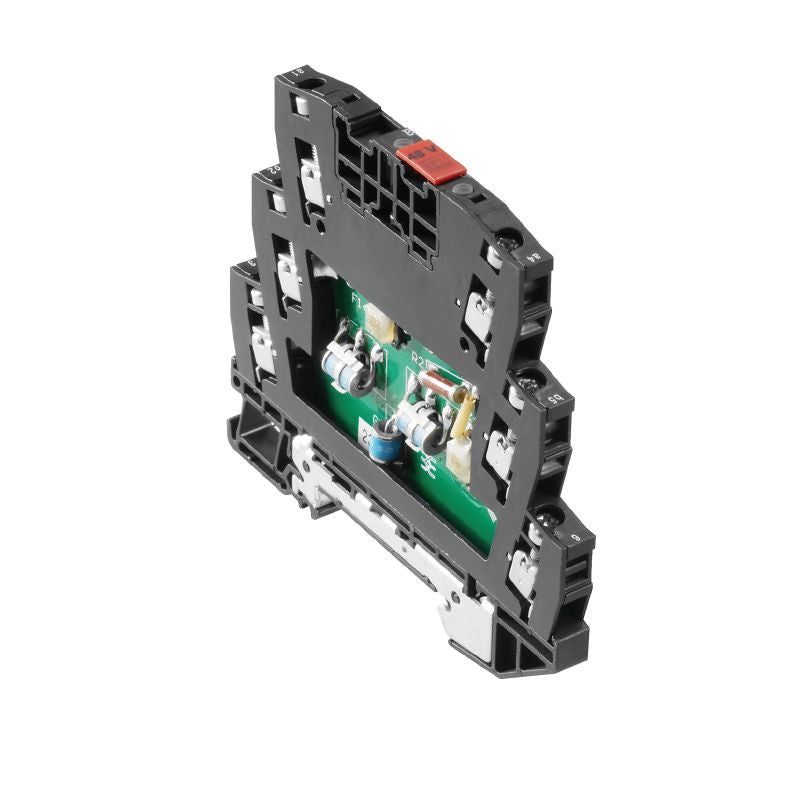

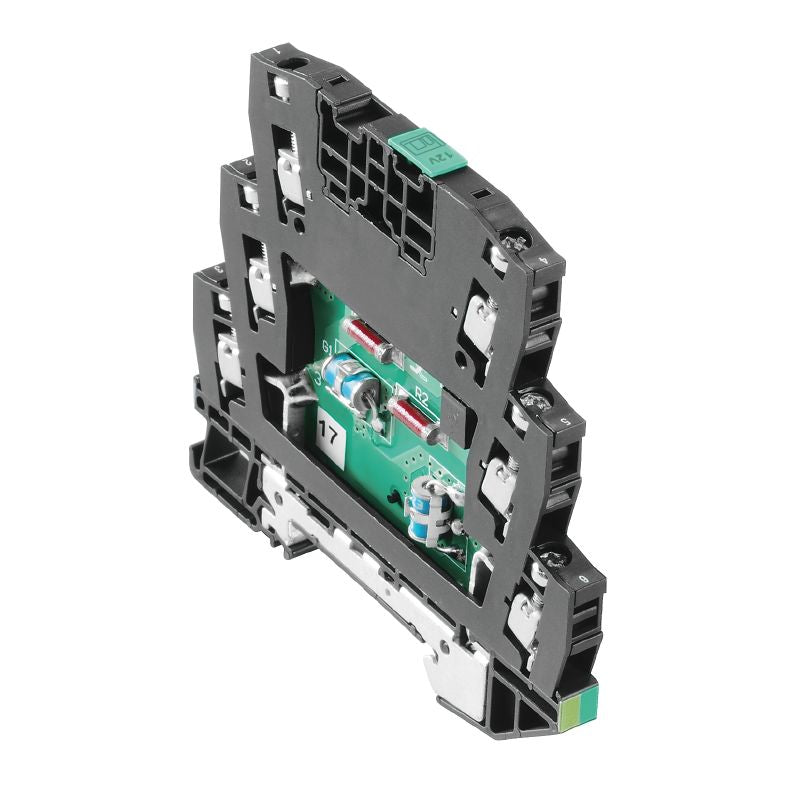

Introducing the VSSC6SL LD module, a robust solution for surge protection tailored for measurement and control applications Capable of accommodating input voltages up to 15V, this module operates efficiently with a maximum continuous voltage of 15V Its compact dimensions—62mm wide, 81mm deep, and 885mm tall—make it a suitable fit for various setups With impressive surge current handling of up to 20 kA and a rated current of 500mA, it ensures reliable protection for two potential-free signal circuits.

Designed to function effectively in temperatures ranging from -40 °C to 70 °C, this module also meets RoHS compliance standards, adding to its appeal for environmentally-conscious users.

Features and Benefits:

•Surge protection for instrumentation and control.

•Signal indication via a green LED.

•Designed for two binary, potential-free signal circuits.

•Rated for DC voltage.

•Compact design at 6.2 mm wide.

•Measurement and monitoring systems.

Specifications:
