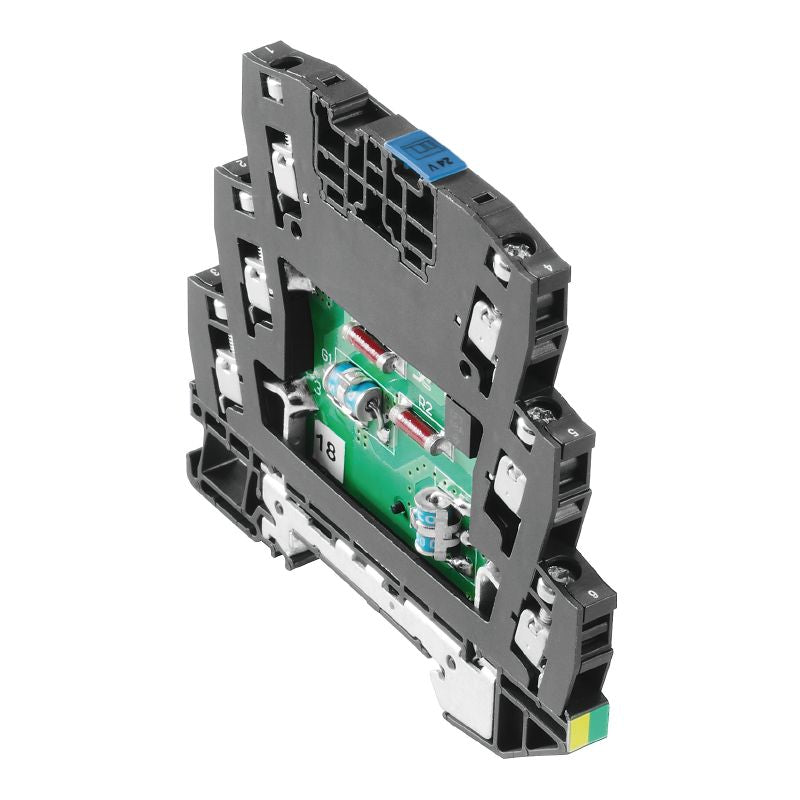

1064150000 - RoHS Certified Surge Protection Device for Up to 15V 500mA (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a sophisticated surge protection device tailored for instrumentation and control applications This versatile unit is capable of managing measurement and control functions and complies with RoHS regulations It holds UL certification, identified by certificate number E311081, ensuring its reliability Designed for optimal performance, it protects against a maximum voltage of 15 V and accommodates an input current of up to 500 mA.

Engineered for a wide operating temperature range of -40 °C to 70 °C, this device can also tolerate humidity levels from 5% to 96% With an IP20 protection degree housing, it guarantees durability and safety, while achieving a UL 94 flammability rating of V-0 This surge protector is an essential component for maintaining the integrity of your instrumentation and control systems.

Features and Benefits:

•Designed for measurement and monitoring applications.

•Compact 6.2 mm wide DIN rail module.

•Suitable for 12 V DC, 2-wire technology.

•Simultaneously connects to grounding for protection circuit.

•Instrumentation and control systems.

•Measurement circuitry.

Specifications:
