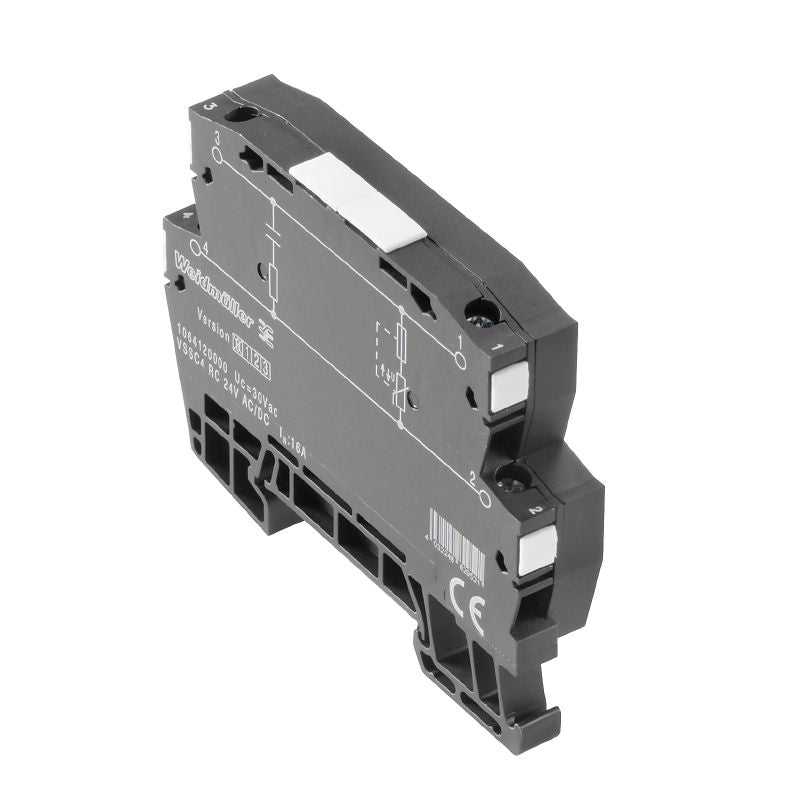

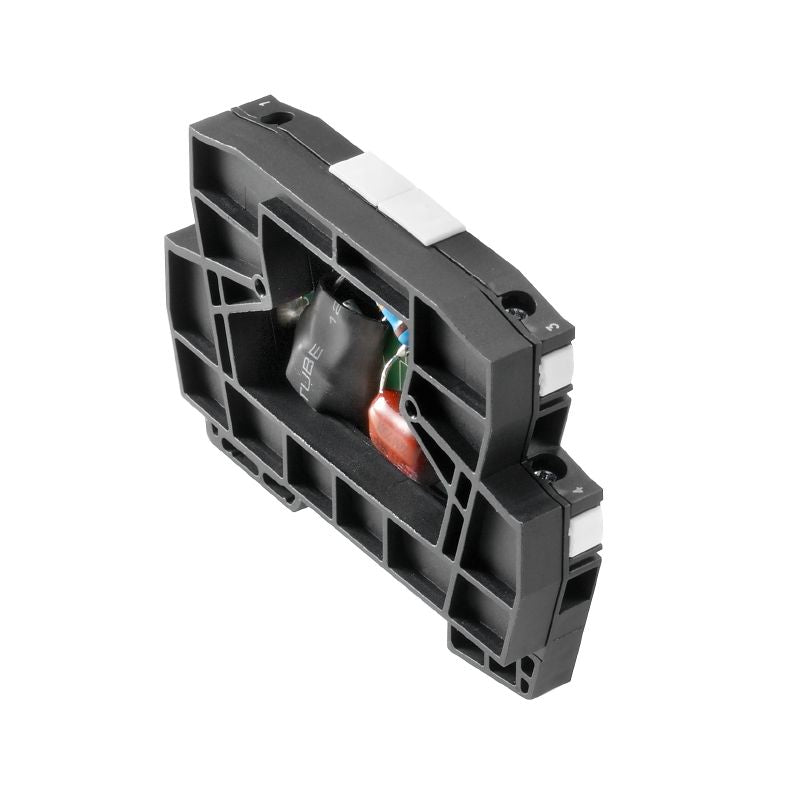

1064120000 - IP20 Surge Protector for 24VAC/DC Measurement Systems (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Designed for effective surge protection in measurement and control systems, this device is suitable for 24VAC/DC applications It is equipped with an IP20 rating for protection and adheres to RoHS regulations With a UL certification (certificate number E311081), it guarantees compliance with safety standards The unit supports a maximum input voltage of 42V and is rated for a current of 20A This product is built to withstand diverse environmental conditions, with storage temperatures ranging from -40°C to 80°C and operational temperatures from -40°C to 70°C, making it adaptable to various settings.

Features and Benefits:

•Screw connection type for ease of installation.

•Compact design with a width of 12.4 mm.

•High maximum continuous voltage rating of 42V for DC applications.

•Supports various wire cross-section sizes.

•Flexible conduit protection with a minimum clamping range of 0.5 mm².

•Used in instrumentation and control systems for surge protection.

•Ideal for measurement and monitoring setups.

Specifications:
