1063980000 - 60VAC Surge Protection MOV, Compact 58.5mm Depth (Pack of 10)

1063980000 - 60VAC Surge Protection MOV, Compact 58.5mm Depth (Pack of 10)

SKU: SKU: 1063980000   Download PDF

Select a Variant:
  • 1063980000 - 60VAC Surge Protection MOV, Compact 58.5mm Depth (Pack of 10)
Qty:
Regular price Now $248.02   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $248.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

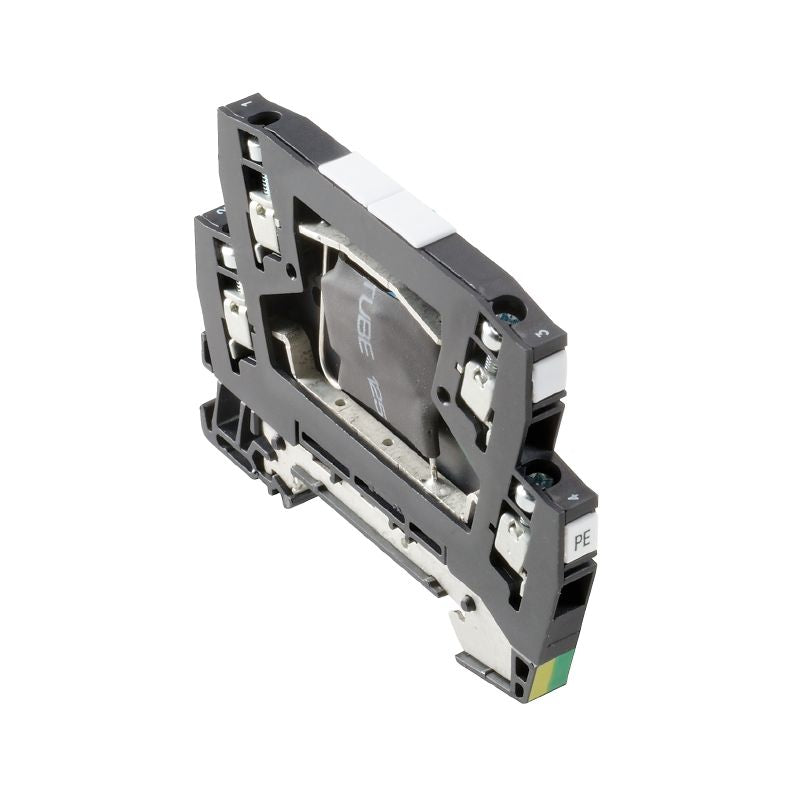

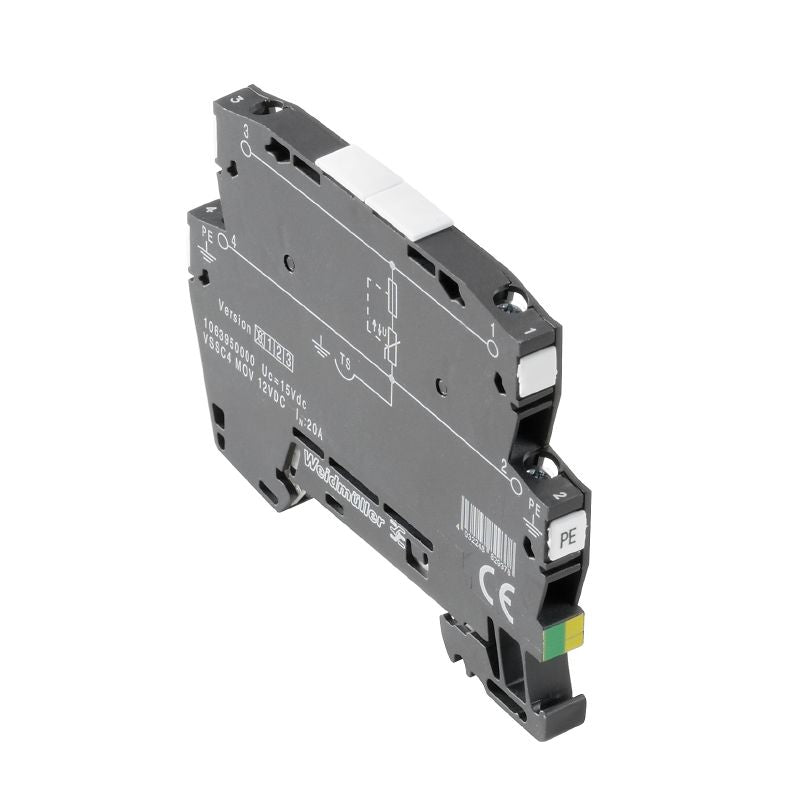

Introducing the VSSC4 MOV, your reliable surge protection solution for measurement and control applications Capable of handling voltages up to 300V for both line and protective earth connections, this device is designed to meet stringent safety standards, being both ROHS compliant and UL certified With dimensions of 585 mm in depth, 76 mm in height, and 62 mm in width, it is lightweight at just 27.

8 g This surge protection device operates efficiently in a wide temperature range from -40 °C to 70 °C and can handle humidity levels between 5% and 96% Rated for 60V AC and 85V DC, it promises outstanding performance even in the most challenging environments.

Features and Benefits:

    •Surge protection for instrumentation and control.

    •Compliant with RoHS and without exemptions.

    •Protection degree IP20.

    •Can handle a surge current capacity of 4.5 kA.

    •Designed for mounting on TS 35 rail.

    •Surge protection for measurement and control systems.

Specifications:

 Depth 58.5 mm
 Height 76 mm
 Width 6.2 mm
 Storage temperature -40 °C to 80 °C
 Operating temperature -40 °C to 70 °C
 Capacitance 1.7 nF
 Discharge current I max (8/20µs) wire-PE 4.5 kA
 Max. continuous voltage, Uc (AC) 75 V
 Max. continuous voltage, Uc (DC) 106 V
 Rated current I N 20 A
 Type of connection Screw connection
 Protection level U P (typ.) < 300 V
 Number of poles 1
 Cable cross-section, min. 0.5 mm²
 Cable cross-section, max. 6 mm²
 Requirements category acc. to IEC 61643-21 C1, C2
 UL certificate E311081
 Surge voltage category III
 Voltage type AC/DC
