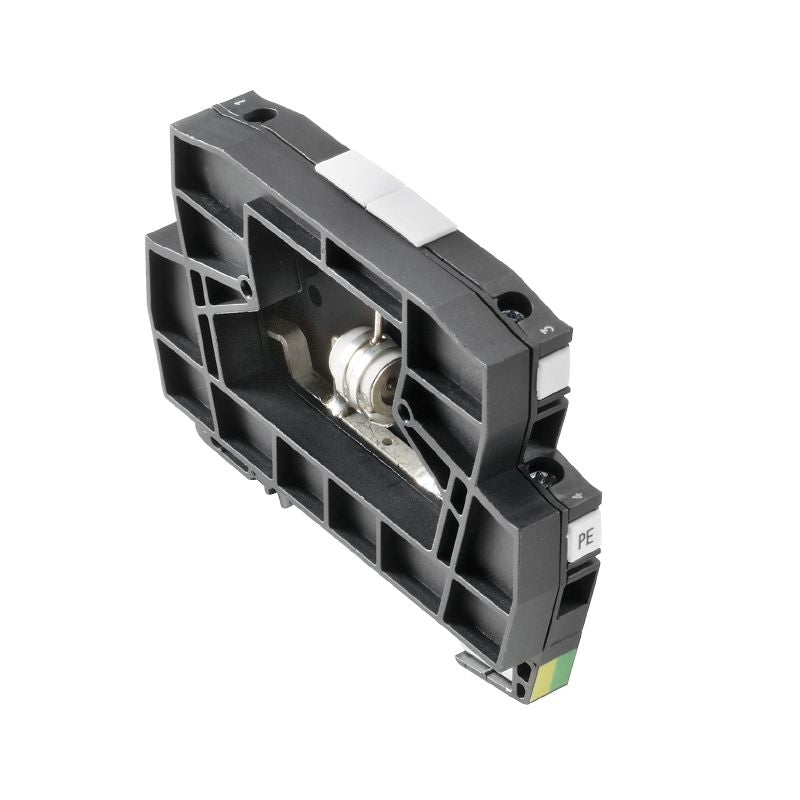

1063950000 - 12V Surge Protector, IP20, 58.5mm Deep, UL Certified (Pack of 10)

Description:

Ensure your instrumentation and control systems are protected with the VSSC4 MOV 12VDC surge protection device Capable of safeguarding applications under 100 volts, this reliable component is UL certified (E311081) and meets RoHS criteria for safe usage With dimensions measuring 585mm in depth, 76mm in height, and 62mm in width, this compact unit weighs just 278g Designed to function efficiently in a wide range of temperatures, it operates between -40 °C and 70 °C and can be stored in environments as low as -40 °C and as high as 80 °C.

Additionally, it can withstand humidity levels from 5% to 96% This device offers an IP20 rating for surge protection, along with support for a maximum input voltage of 15V and a current capability of 500mA, making it an excellent choice for a variety of applications.

Features and Benefits:

•Designed for surge protection in measurement and control applications.

•Mechanical dimensions include a depth of 58.5 mm, height of 76 mm, and a width of 6.2 mm.

•Complies with RoHS without exemptions.

•IP20 protection level.

•Measurement and control systems.

•Instrumentation and control applications.
