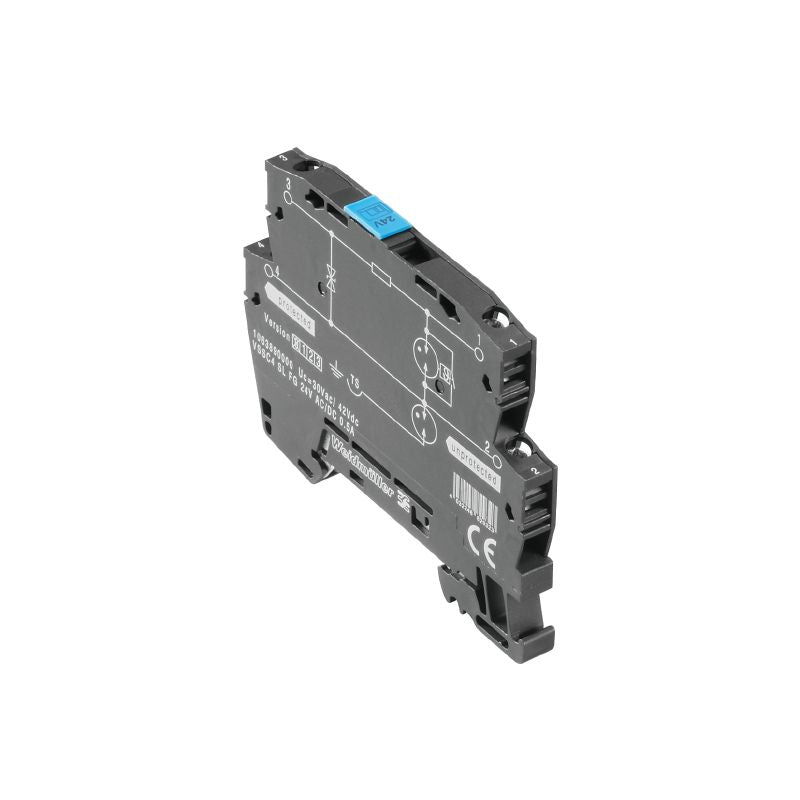

1063890000 - Surge Protection Device, 150V, 6.2mm Mount for TS 35 Rails (Pack of 10)

SKU: SKU: 1063890000 Download PDF

Select a Variant:

1063890000 - Surge Protection Device, 150V, 6.2mm Mount for TS 35 Rails (Pack of 10)

SET THE QTY:

Now $483.23 Web pricing policy

~~BEFORE $0.00~~ Now $483.23 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a reliable surge protection device tailored for instrumentation and control applications, focusing on measurement and control tasks It supports an input voltage of up to 150 V for L/N-PE connections This model is designed without an isolating function and boasts an IP20 protection rating, ensuring durability in various environments With a compact width of 62 mm, it's specifically crafted for effortless installation on TS 35 rail systems, making it an efficient choice for your operational needs.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Includes gas group ratings for classifications IIA, IIB, and IIC.

•Designed for a wide temperature range of -40 °C to 70 °C during operation.

•Equipped with an optical function display for easy indication.

•Offers a surge voltage category of III.

Specifications:

Depth	58.5 mm
Height	76 mm
Width	6.2 mm
Net weight	27 g
Storage temperature	-40 °C...80 °C
Operating temperature	-40 °C...70 °C
Humidity	5...96 %
Discharge current I max (8/20µs) GND-PE	10 kA
Discharge current I n (8/20µs) GND-PE	2.5 kA
Rated current I N	500 mA
Rated voltage (AC)	24 V
Rated voltage (DC)	34 V
Surge current-carrying capacity C2	2.5 kA 8/20 µs 5 kV 1.2/50 µs
Surge current-carrying capacity C3	10 A 10/1000 µs
Protection level U_P (typ.)	150 V
Number of poles	1
Voltage type	AC/DC
