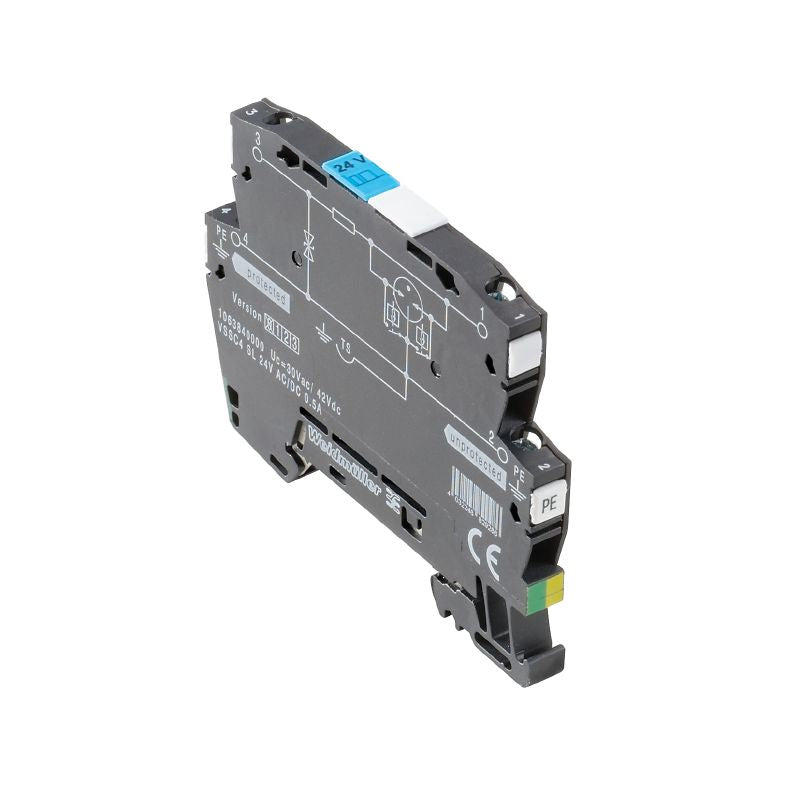

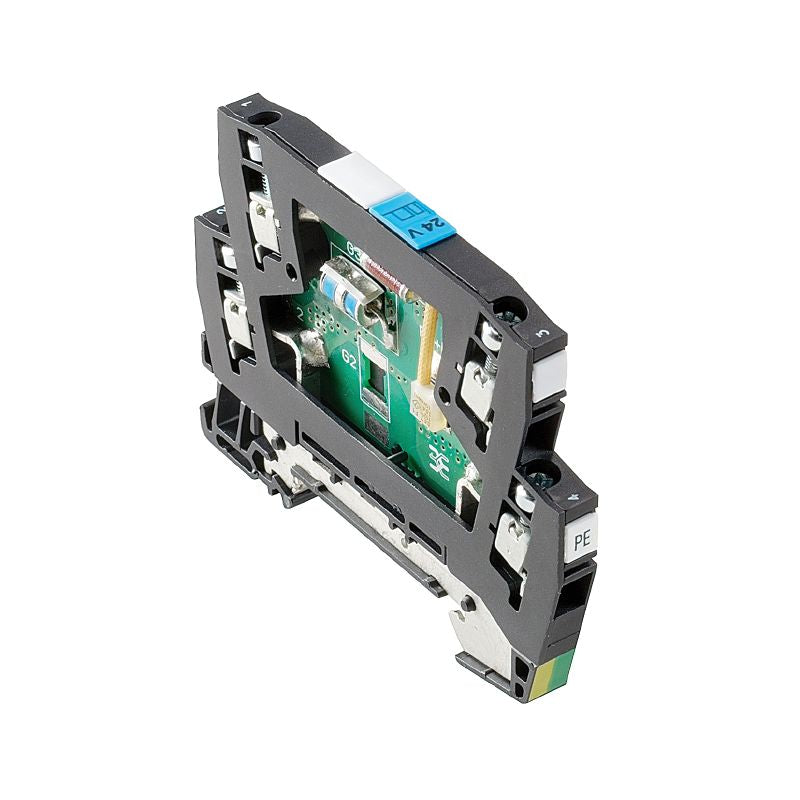

1063860000 - Surge Protection Module for Control Systems, -40°C to +70°C (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable surge protection module tailored for instrumentation and control applications This essential device safeguards measurement and control systems from electrical surges, with a maximum input voltage capacity of 85V Built to perform in a wide temperature range from -40 °C to +70 °C, it complies with RoHS standards for environmental safety The compact design measures 62 mm in width and can accommodate a maximum current of 0.

5A, providing crucial protection for your electronic circuits and devices With an IP20 rating, it effectively shields against solid objects larger than 12 mm, ensuring optimal functionality in various environments.

Features and Benefits:

•Compact design for DIN rail applications.

•Simultaneous electrical contact between the earth and reference potential.

•Optical identification for voltage level and type of protection.

•Suitable for high-frequency applications with signal transmission properties up to 5.2 MHz.

•Surge protection for measurement and control circuits.

Specifications:
